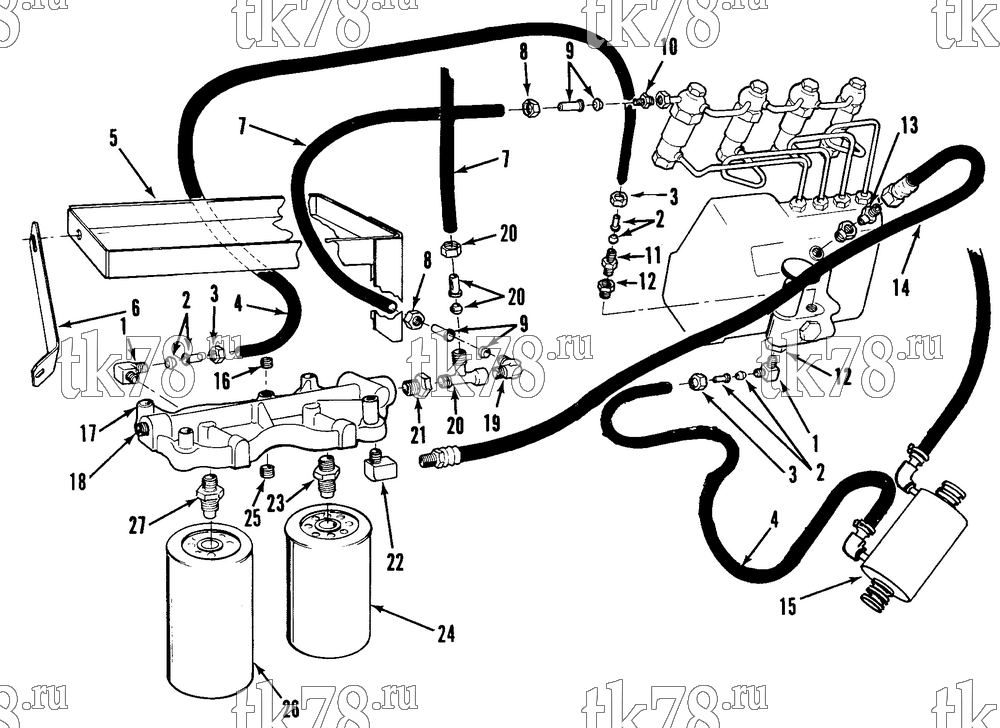

Установкa Thermo King схема FUEL FILTERS & HOSES – 80G9
Обновление от: 10/5/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-4380 | ELBOW (3/8) | 1 | |
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 2 | 10-242 | KIT - sleeve & eyelet (3/8) | 5 | |
|
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 3 | 11-4941 | NUT - hose fitting (3/8) | 1 | |
| 4 | 11-4372 | HOSE (3/8 od x 35 ft lg) | A/R | |
| 5 | 99-6438 | BRACKET - filter | 1 | |
| 55-529 | SCREW - bracket | 2 | ||
| 55-402 | FLATWASHER | 2 | ||
| 6 | 99-9590 | BRACE - bracket | 1 | |
| 55-2969 | SCREW - brace | 2 | ||
| 55-371 | FLATWASHER | 4 | ||
| 55-4967 | NUT | 2 | ||
| 7 | 11-4367 | HOSE (1/4 od x 35 ft lg) | A/R | |
| 8 | 11-4841 | NUT - hose (1/4) | 3 | |
| 9 | 10-243 | KIT - sleeve & eyelet (1/4) | 3 | |
|
10-243 OEM | Р/к фитинга топливного шланга | 500 ₽ |
|
| 10 | 11-6496 | FITTING (5/16 x 1/4) | 1 | |
| 11 | 55-4515 | CONNECTOR - hose fitting | 1 | |
| 12 | 11-4381 | BUSHING | 2 | |
| 13 | 55-2779 | COUPLING | 1 | |
| 14 | 11-5334 | HOSE - filter to injection pump | 1 | |
| 15 | 10-253 | KIT - fuel heater | 1 | |
| 99-6344 | BRACKET - heater | 1 | ||
| 16 | 55-433 | PLUG - pipe | 4 | |
| 17 | 11-6528 | BRACKET - filter | 1 | |
| 55-153 | SCREW - bracket | 4 | ||
| 55-371 | FLATWASHER | 8 | ||
| 55-4967 | NUT | 4 | ||
| 18 | 55-193 | PLUG - pipe | 1 | |
| 19 | 11-5320 | ELBOW - hose (1/4) | 1 | |
| 20 | 11-5321 | TEE (1/4) | 1 | |
| 21 | 55-4799 | BUSHING - restrictor | 1 | |
| 22 | 55-4244 | ELBOW | 1 | |
| 23 | 55-3168 | ADAPTER - filter (secondary) | 1 | |
| 24 | 11-9098 | FILTER - fuel (secondary) | 1 | |
|
11-9341 OEM | Фильтр топливный EMI 2000, MD/RD/KD/T-Series | 2 680 ₽ |
|
|
US-11-9341 | Фильтр топливный, MD/RD/KD/T-Series | 1 840 ₽ |
|
|
10-11-9341 | Фильтр топливный, MD/RD/KD/T-Series | 1 090 ₽ |
|
| 25 | 55-1004 | PLUG - pipe | 1 | |
| 26 | 11-9097 | FILTER - fuel (primary) | 1 | |
|
10-11-9097 | Топливный фильтр, Primary | 2 750 ₽ |
|
| 27 | 55-3403 | ADAPTER - filter (primary) | 1 |
