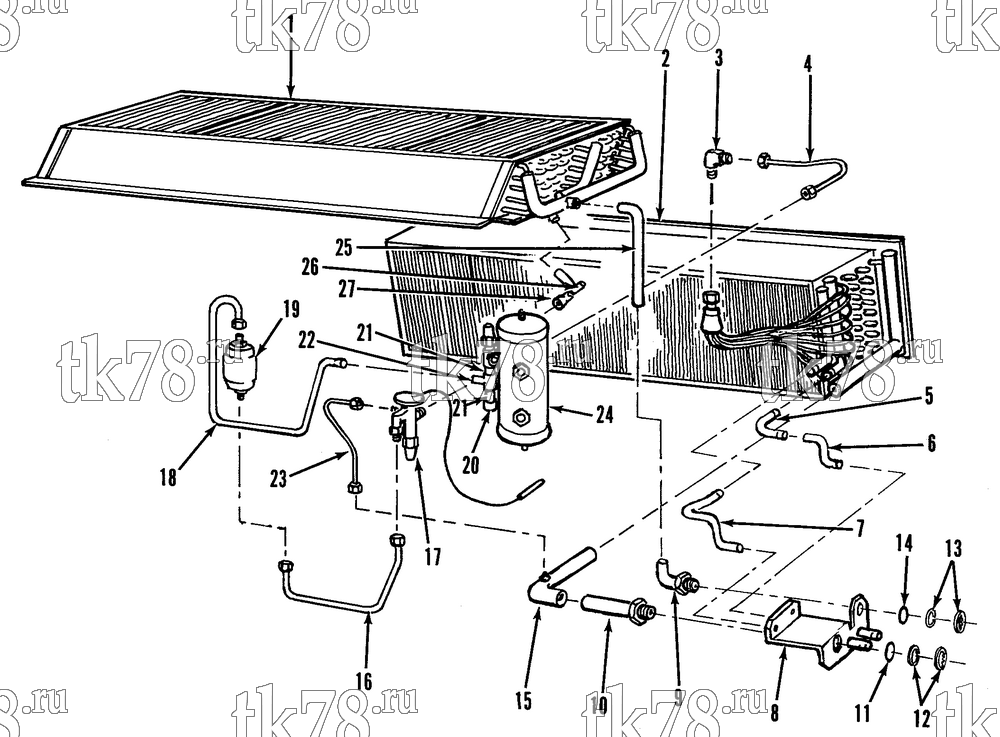

Установкa Thermo King схема REFRIGERATION/HEATING COMPONENTS – 80B3
Обновление от: 8/5/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-845 | COIL - condenser | 1 | |
| 55-1587 | SCREW - coil | 20 | ||
| 55-1800 | LOCKWASHER | 20 | ||
| 55-2086 | FLATWASHER | 20 | ||
| 2 | 67-846 | COIL - evaporator (M1, M3) | 1 | |
| 67-973 | COIL - evaporator (M1, M3) | 1 | ||
| 99-2996 | STRIP (neoprene, 50 ft) | A/R | ||
| 55-1587 | SCREW - coil | 16 | ||
| 55-1800 | LOCKWASHER | 16 | ||
| 55-2086 | FLATWASHER | 16 | ||
| 3 | 55-5998 | ELBOW | 1 | |
| 4 | 66-4741 | TUBE - expansion valve to distributor | 1 | |
| 5 | 66-4732 | TUBE - water (out, header side) | 1 | |
| 6 | 66-4731 | TUBE - water (out, bracket side) | 1 | |
| 7 | 66-4730 | TUBE - water (inlet) | 1 | |
| 8 | 99-9874 | BRACKET - receiver (E2 M1) | 1 | |
| 91-1862 | BRACKET (E2 M3) | 1 | ||
| 9 | 66-4738 | ADAPTER - discharge (before 9/90) | 1 | |
| 55-5933 | ADAPTER - discharge | 1 | ||
| 66-5741 | TUBE - discharge (after 9/90) | 1 | ||
| 66-5247 | ADAPTER - bulkhead (#16, discharge) | 1 | ||
| 10 | 66-4737 | ADAPTER - suction (before 9/90) | 1 | |
| 55-6486 | ADAPTER - suction | 1 | ||
| 66-5740 | TUBE - suction (after 9/90) | 1 | ||
| 55-6570 | ADAPTER - suction | 1 | ||
| 11 | 33-920 | O-RING (1-1/2 id x 1/8 wide) | 1 | |
| 12 | 55-5996 | NUT (#24) | 1 | |
| 55-5999 | LOCKWASHER (2.0 id) | 1 | ||
| 13 | 55-5740 | NUT (#16) | 1 | |
| 55-5741 | LOCKWASHER (1.5 id) | 1 | ||
| 14 | 33-1785 | O-RING (15/16 id x 1/8 thk) | 1 | |
| 15 | 66-4736 | TUBE - suction | 1 | |
| 66-874 | FITTING - saddle (equalizer) | 1 | ||
| 16 | 66-4740 | TUBE - dehydrator to expansion valve | 1 | |
| 17 | 66-3577 | VALVE - expansion | 1 | |
| 66-4212 | ELEMENT - power | 1 | ||
| 66-3592 | SCREEN - inlet | 1 | ||
| 99-9872 | BRACKET - valve | 1 | ||
| 55-1587 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 55-5211 | U-BOLT - valve | 1 | ||
| 55-2001 | FLATWASHER - U-bolt | 2 | ||
| 55-4560 | NUT - u-bolt | 2 | ||
| 18 | 66-4739 | TUBE - receiver to dehydrator | 1 | |
| 19 | 66-9015 | DEHYDRATOR | 1 | |
| 55-4390 | HANGER - dehydrator | 1 | ||
| 55-1587 | SCREW - hanger & dehydrator | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 20 | 55-6000 | CAP - end | 1 | |
| 21 | 66-4733 | TUBE | 2 | |
| 22 | 55-2296 | TEE | 1 | |
| 23 | 66-4742 | TUBE - equalizer | 1 | |
| 24 | 67-2325 | TANK - receiver (see 83B7) | 1 | |
| 99-3523 | NAMEPLATE - R12 | 1 | ||
| 25 | 66-5739 | TUBE - discharge (adapter to coil) | 1 | |
| 26 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING - valve | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 27 | 66-4734 | TUBE - condenser coil to receiver | 1 | |
| 99-3060 | FITTING - saddle (relief valve) | 1 |
