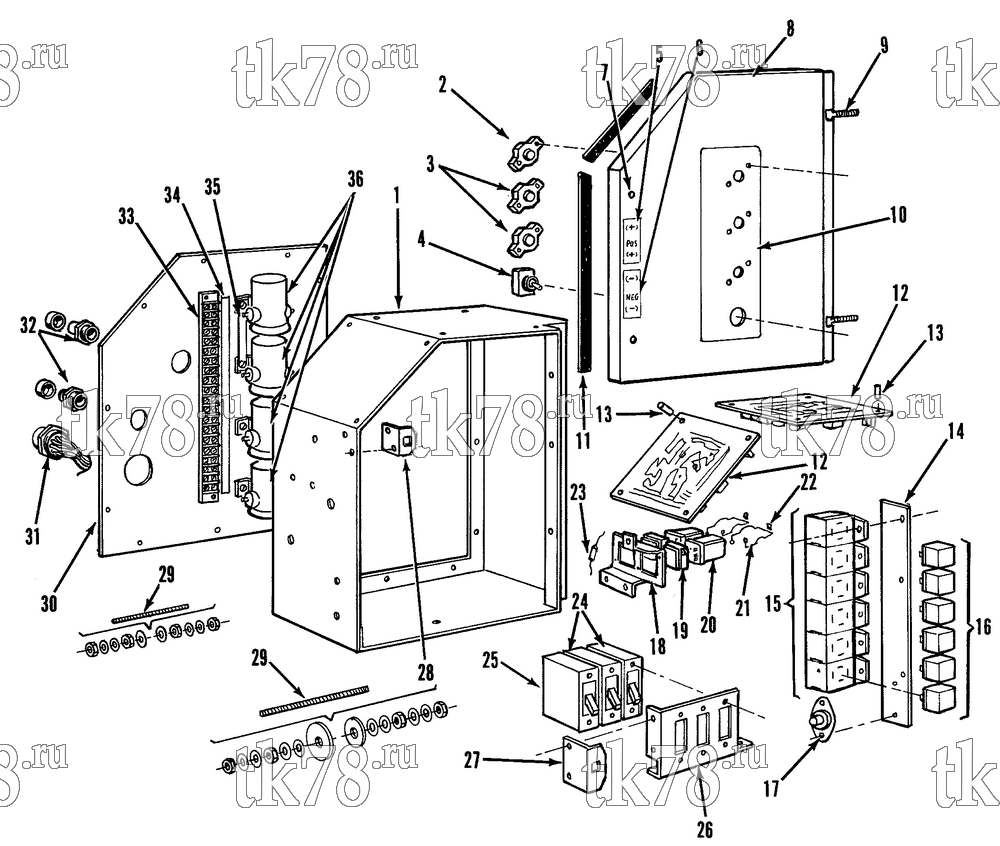

Установкa Thermo King схема CONTROL BOX (E2 M1, M1A, M3) – 80B1
Обновление от: 5/29/01
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-3278 | BOX - control | 1 | |
| 2 | 44-7217 | BREAKER - circuit (15 amp) | 1 | |
| 3 | 44-7216 | BREAKER - circuit (10 amp) | 2 | |
| 55-2991 | SCREW - cover | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 4 | 44-7475 | SWITCH - on/off (4pdt) | 1 | |
| 5 | 99-4660 | NAMEPLATE - Positive | 1 | |
| 6 | 99-4661 | NAMEPLATE - Negative | 1 | |
| 7 | 55-1587 | SCREW - cover | 2 | |
| 55-4510 | WASHER - retaining | 2 | ||
| 8 | 99-9876 | COVER - control box | 1 | |
| 9 | 55-3473 | PIN - cover | 2 | |
| 99-7900 | ROD | 2 | ||
| 55-312 | NUT | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 55-3034 | WASHER - sealing | 2 | ||
| 10 | 99-9888 | NAMEPLATE - controls | 1 | |
| 11 | 99-8986 | STRIP - gasket | A/R | |
| 12 | 44-7476 | THERMOSTAT - pc board (AC & floor heater) | 2 | |
| 44-9923 | SENSOR - thermostat | 2 | ||
| 44-7477 | SWITCH - setpoint, potentiometer & knob | 2 | ||
| 55-3513 | SCREW - board | 8 | ||
| 55-3014 | LOCKWASHER | 8 | ||
| 55-3013 | FLATWASHER | 8 | ||
| 13 | 99-9889 | SPACER - standoff | 8 | |
| 14 | 99-9881 | BRACKET - relay | 1 | |
| 55-2995 | SCREW - bracket/socket | 3 | ||
| 55-2001 | FLATWASHER | 3 | ||
| 55-2964 | LOCKWASHER | 3 | ||
| 15 | 44-5537 | SOCKET - relay | 6 | |
| 16 | 44-9112 | RELAY | 6 | |
| 17 | 44-4035 | RECTIFIER | 1 | |
| 55-3256 | SCREW - rectifier | 2 | ||
| 55-3014 | LOCKWASHER | 2 | ||
| 18 | 99-9882 | BRACKET - relay | 1 | |
| 55-2995 | SCREW - bracket | 3 | ||
| 55-2001 | FLATWASHER | 3 | ||
| 55-2964 | LOCKWASHER | 3 | ||
| 19 | 44-3184 | SOCKET - relay | 2 | |
| 55-2270 | RIVET - socket holddown | 4 | ||
| 20 | 44-4025 | RELAY | 2 | |
| 21 | 99-2027 | SPRING - holddown | 2 | |
| 22 | 55-2771 | CLAMP - speednut | 2 | |
| 23 | 44-3400 | DIODE | 3 | |
| 24 | 44-5560 | BREAKER - circuit (40 amp) | 2 | |
| 25 | 44-5494 | BREAKER - circuit (65 amp) | 1 | |
| 44-6515 | JUMPER | 1 | ||
| 55-3513 | SCREW - circuit breaker | 6 | ||
| 55-3013 | FLATWASHER | 6 | ||
| 55-3014 | LOCKWASHER | 6 | ||
| 26 | 99-9877 | BRACKET - circuit breaker | 1 | |
| 99-9878 | NAMEPLATE - circuit breakers | 1 | ||
| 55-2995 | SCREW - bracket | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 27 | 99-9883 | BRACKET - cover | 1 | |
| 28 | 99-9884 | BRACKET - cover | 1 | |
| 55-3059 | NUT - captive | 2 | ||
| 29 | 55-3167 | STUD - terminal | 2 | |
| 55-671 | NUT (brass) | 6 | ||
| 55-3066 | LOCKWASHER - internal (bronze) | 5 | ||
| 55-448 | FLATWASHER (brass) | 6 | ||
| 55-3672 | LOCKWASHER - internal/external (bronze) | 1 | ||
| 55-5901 | WASHER - shoulder (thermoplastic) | 1 | ||
| 55-5902 | FLATWASHER (thermoplastic) | 1 | ||
| 30 | 99-9879 | PANEL - rear | 1 | |
| 55-2995 | SCREW - panel | 11 | ||
| 55-2001 | FLATWASHER | 11 | ||
| 55-2964 | LOCKWASHER | 11 | ||
| 31 | 44-7471 | HARNESS - control | 1 | |
| 44-6505 | RECEPTACLE (19-pin) | 1 | ||
| 44-9587 | PIN - connector (16 gauge) | 13 | ||
| 44-6851 | PIN - connector (12 gauge) | 6 | ||
| 32 | 55-5111 | CONNECTOR - liquid tite | 2 | |
| 33 | 44-5335 | BOARD - terminal | 1 | |
| 44-3579 | STRIP - jumper | 2 | ||
| 55-4487 | SCREW - board | 2 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 34 | 99-9880 | MARKSTRIP - terminal board | 1 | |
| 35 | 44-7472 | STRAP - jumper | 1 | |
| 36 | 41-3987 | SOLENOID | 4 | |
| 55-3021 | SCREW - solenoid | 8 | ||
| 55-2993 | LOCKWASHER - internal tooth | 4 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-1800 | LOCKWASHER - spring | 8 |
