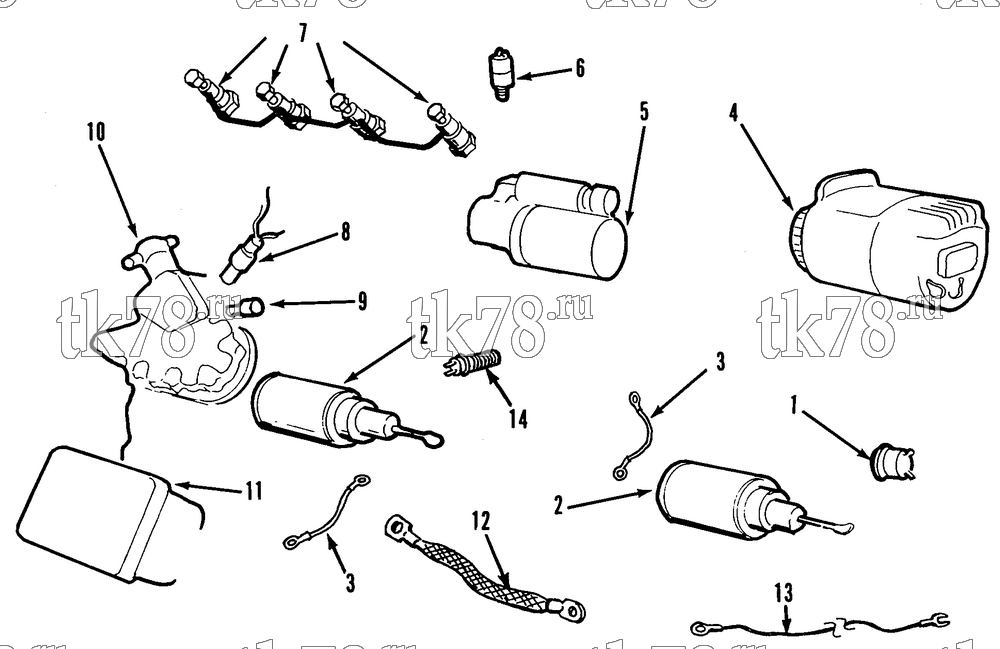

Установкa Thermo King схема ELECTRICAL COMPONENTS (POWER TRAY) – 79F8
Обновление от: 6/15/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-4774 | SWITCH - lpco | 1 | |
|
10-44-4774 | Выключатель давления масла | 5 530 ₽ |
|
| 55-1658 | FITTING - restricted | 1 | ||
| 55-2273 | TEE | 1 | ||
| 55-460 | ELBOW | 1 | ||
| 2 | 44-2822 | SOLENOID - fuel | 2 | |
| 3 | 99-2244 | STRAP - ground (solenoid) | 2 | |
| 4 | 40-346 | ALTERNATOR (24V, 125 amp) | 1 | |
| 5 | 845-1285 | STARTER | 1 | |
| 6 | 44-5027 | SWITCH - water temperature | 1 | |
| 55-2316 | BUSHING - water temperature switch | 1 | ||
| 7 | 44-4687 | GLOW PLUG (24V) | 4 | |
| 8 | 44-3843 | SWITCH - lpco | 1 | |
| 9 | 44-2907 | SWITCH - hpco | 1 | |
|
10-44-2907 | Выключатель высокого давления | 4 160 ₽ |
|
| 10 | 22-689 | VALVE - unloading | 1 | |
| 44-7463 | COIL - valve | 1 | ||
| 11 | 45-483 | BOX - control | 1 | |
| 12 | 44-1644 | STRAP - ground (13-1/2 in lg) | 1 | |
| 44-2365 | CABLE - ground (11 in lg) | 1 | ||
| 13 | 44-5069 | WIRE - resistance (78 in lg) | 1 |
