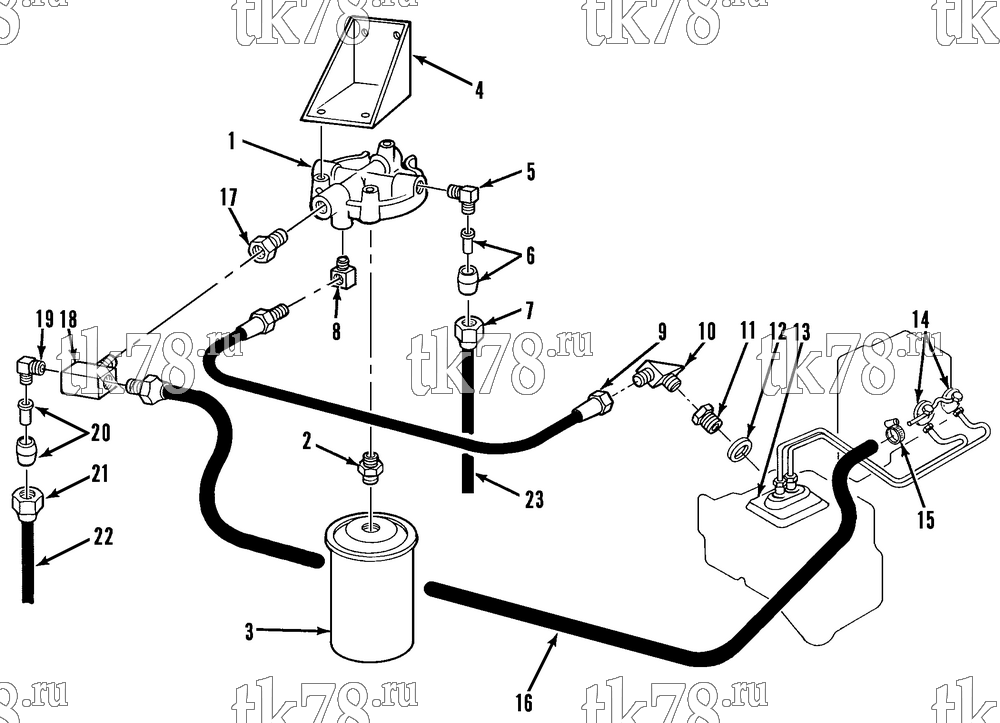

Установкa Thermo King схема FUEL SYSTEM (HK, HK-II 30) – 79D5
Обновление от: 7/31/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-6529 | BRACKET - filter | 1 | |
| 55-2962 | SCREW - bracket | 3 | ||
| 55-2958 | FLATWASHER | 3 | ||
| 55-4954 | NUT | 3 | ||
| 2 | 55-3168 | ADAPTER - fuel filter | 1 | |
| 3 | 11-9098 | FILTER - fuel | 1 | |
|
11-9341 OEM | Фильтр топливный EMI 2000, MD/RD/KD/T-Series | 2 680 ₽ |
|
|
US-11-9341 | Фильтр топливный, MD/RD/KD/T-Series | 1 840 ₽ |
|
|
10-11-9341 | Фильтр топливный, MD/RD/KD/T-Series | 1 090 ₽ |
|
| 4 | 99-8196 | BRACKET - filter (HK) | 1 | |
| 91-3490 | BRACKET - filter (HK-II) | 1 | ||
| 99-8187 | BOLTSTRIP - bracket | 1 | ||
| 55-2641 | FLATWASHER | 2 | ||
| 55-4955 | LOCKNUT | 2 | ||
| 5 | 11-4380 | ELBOW - fuel inlet (3/8) | 1 | |
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 6 | 10-242 | KIT - sleeve & eyelet (3/8) | 1 | |
|
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 7 | 11-4941 | NUT (3/8) | 1 | |
| 8 | 55-4244 | ELBOW | 1 | |
| 9 | 11-5233 | HOSE - filter to injection pump | 1 | |
| 10 | 55-4314 | ELBOW - fuel inlet | 1 | |
| 11 | 11-5222 | ADAPTER - bushing | 1 | |
| 12 | 33-1531 | GASKET | 1 | |
| 13 | 11-6265 | PUMP - fuel inlet (see 79A9) | 1 | |
| 14 | 11-6100 | NOZZLE - fuel injection valve (see 79A9) | 2 | |
|
10-11-6100 | Форсунка, Yanmar 366, 388 | 21 530 ₽ |
|
| 15 | 55-2069 | CLAMP | 1 | |
| 16 | 11-5270 | HOSE - fuel return | 1 | |
| 17 | 55-4799 | ADAPTER - fuel | 1 | |
| 18 | 55-665 | TEE | 1 | |
| 19 | 11-5320 | ELBOW - fuel return (1/4) | 1 | |
| 20 | 10-243 | KIT - sleeve & eyelet (1/4) | 1 | |
| 21 | 11-4841 | NUT (1/4) | 1 | |
| 22 | 11-4367 | HOSE (1/4 od x 35 ft lg) | A/R | |
| 23 | 11-4372 | HOSE (3/8 od x 35 ft lg) | A/R |
