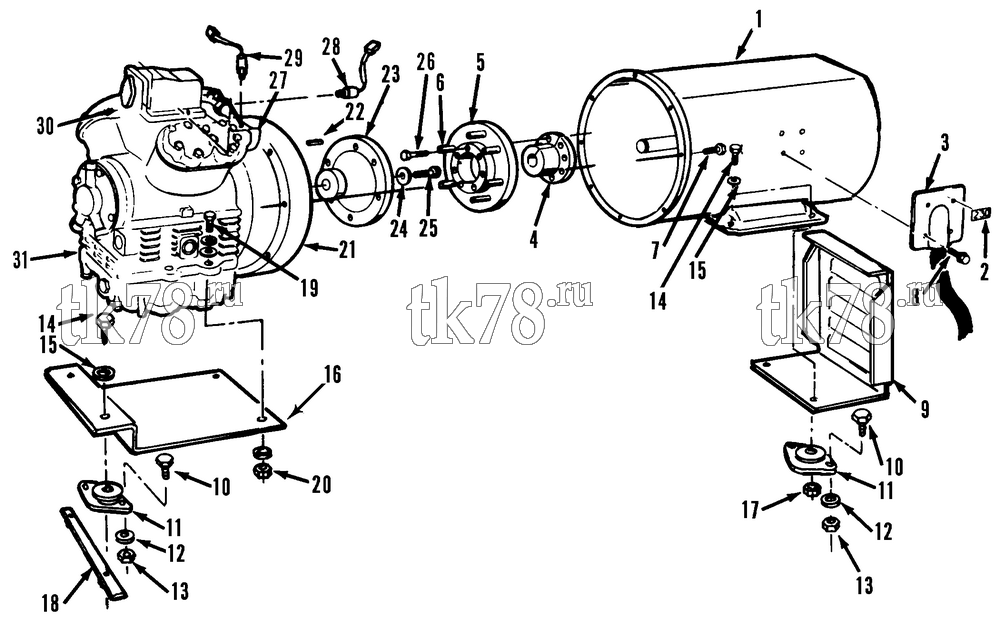

Установкa Thermo King схема POWER TRAY GROUP – 78G2
Обновление от: 9/25/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 104-515 | MOTOR - compressor drive | 1 | |
| 77-1895 | BEARING (drive end) | 1 | ||
| 77-1896 | BEARING (opposite drive end) | 1 | ||
| 77-2156 | FAN - motor | 1 | ||
| 77-2226 | COVER - fan | 1 | ||
| 2 | 99-6907 | NAMEPLATE - 380/460 Volt | 1 | |
| 3 | 99-9284 | PLATE - cover | 1 | |
| 33-2446 | GASKET - cover plate | 1 | ||
| 4 | 77-1002 | HUB | 1 | |
| 5 | 77-1286 | PLATE - drive coupling | 1 | |
| 6 | 55-1123 | PIN - dowel | 6 | |
| 55-1123 OEM | Палец втулки муфты сцепления | 1 900 ₽ |
|
|
| 7 | 55-2683 | SCREW - motor to compressor | 6 | |
| 55-2363 | LOCKWASHER | 6 | ||
| 8 | 55-5760 | BOLT - carriage (plate) | 2 | |
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 9 | 98-2999 | GUARD - motor | 1 | |
| 10 | 55-2963 | SCREW - vibra mount | 8 | |
| 11 | 99-8980 | MOUNT - vibration | 4 | |
| 12 | 55-2958 | FLATWASHER | 8 | |
| 13 | 55-4954 | NUT | 8 | |
| 14 | 55-3149 | SCREW - compressor & motor | 4 | |
| 15 | 55-2641 | FLATWASHER | 4 | |
| 55-2363 | LOCKWASHER | 2 | ||
| 16 | 91-1334 | PLATE - compressor | 1 | |
| 17 | 55-4955 | NUT | 2 | |
| 18 | 99-8978 | NUTSTRIP - compressor | 1 | |
| 19 | 55-3089 | SCREW - compressor to tray | 4 | |
| 55-2958 | FLATWASHER | 4 | ||
| 20 | 55-4954 | NUT | 4 | |
| 21 | 22-693 | HOUSING - drive coupling | 1 | |
| 55-878 | SCREW - housing | 9 | ||
| 30-55-878 | Болт головки цилиндров компрессора | 680 ₽ |
|
|
| 55-896 | FLATWASHER | 9 | ||
| 33-2513 | GASKET - housing to compressor | 1 | ||
|
10-33-2513 | Прокладка передней крышки, X418/426/430/640 | 1 450 ₽ |
|
| PP-33-2513 | Прокладка передней крышки, X418/426/430/640 | 500 ₽ |
|
|
| 22-778 | SEAL - compressor crankshaft | 1 | ||
|
22-778 OEM | Сальник коленвала, X418/X426/X430 | 14 860 ₽ |
|
|
US-22-778 | Сальник коленвала, X418/X426/X430 | 11 920 ₽ |
|
|
PP-22-778 | Сальник коленвала, X418/X426/X430 | 2 950 ₽ |
|
| 22 | 55-9024 | KEY - crankshaft | 1 | |
|
10-55-9024 | Шпонка коленвала, X418/426/430 | 590 ₽ |
|
| 23 | 77-809 | COUPLING - compressor drive | 1 | |
| 77-2856 | BUSHING - coupling | 6 | ||
|
10-77-2856 | Втулка муфты сцепления | 1 080 ₽ |
|
|
PP-77-2856 | Втулка муфты сцепления | 490 ₽ |
|
| 24 | 77-2498 | SPACER | 1 | |
|
10-77-2498 | Шайба муфты сцепления | 990 ₽ |
|
| 25 | 55-4316 | SCREW - coupling | 1 | |
|
10-55-4316 | Болт коленвала компрессора X426/430 | 470 ₽ |
|
| 26 | 55-3675 | SCREW | 3 | |
| 55-1800 | LOCKWASHER | 3 | ||
| 27 | 22-750 | MANIFOLD - discharge | 1 | |
| 33-2805 | GASKET - manifold | 2 | ||
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 55-183 | SCREW - manifold | 4 | ||
| 10-55-183 | Болт масляного насоса компрессора 3/8-16 x 1/4 lg | 550 ₽ |
|
|
| 55-896 | FLATWASHER | 4 | ||
| 28 | 41-1626 | SWITCH - hpco | 1 | |
| 29 | 44-5840 | SWITCH - 2 speed condenser fan | 1 | |
| 30 | 66-4460 | VALVE - throttling (see 73B9) | 1 | |
| 99-8979 | COVER - throttling valve | 1 | ||
| 31 | 102-510 | COMPRESSOR - X426 (complete ASQ) | 1 | |
| 102-919 | COMPRESSOR - X426 (see 231C3) | 1 |
