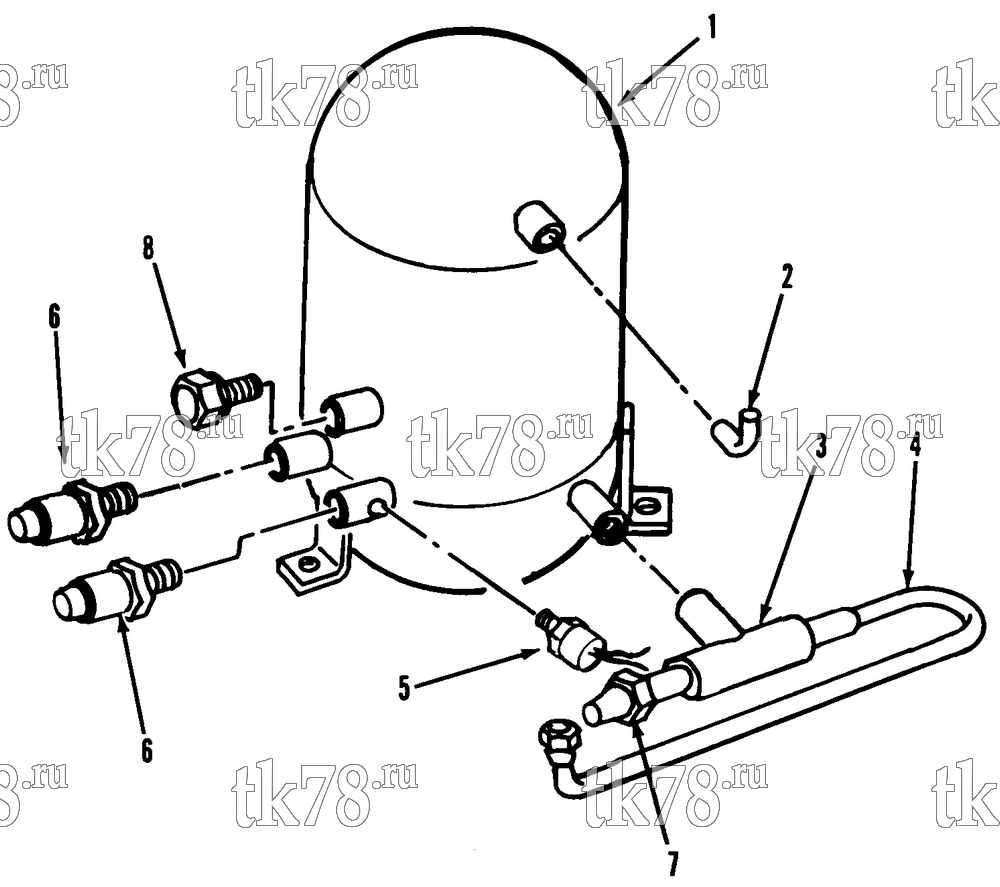

Установкa Thermo King схема CONDENSER ASSEMBLY - WATER COOLED – 78G14
Обновление от: 7/30/97
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-837 | TANK - water cooled condenser | 1 | |
| 55-2969 | SCREW - tank | 3 | ||
| 55-2958 | FLATWASHER | 3 | ||
| 55-2959 | LOCKWASHER | 3 | ||
| 2 | 55-3248 | ELBOW | 1 | |
| 3 | 66-2230 | VALVE - angle | 1 | |
| 4 | 66-4684 | TUBE - condenser to dehydrator | 1 | |
| 5 | 66-4687 | SWITCH - water valve | 1 | |
| 66-4685 | CONNECTOR - switch | 1 | ||
| 6 | 55-1827 | PLUG - inlet/outlet | 2 | |
| 7 | 66-2170 | CAP - valve | 1 | |
| 8 | 66-6870 | INDICATOR - liquid | 1 |
