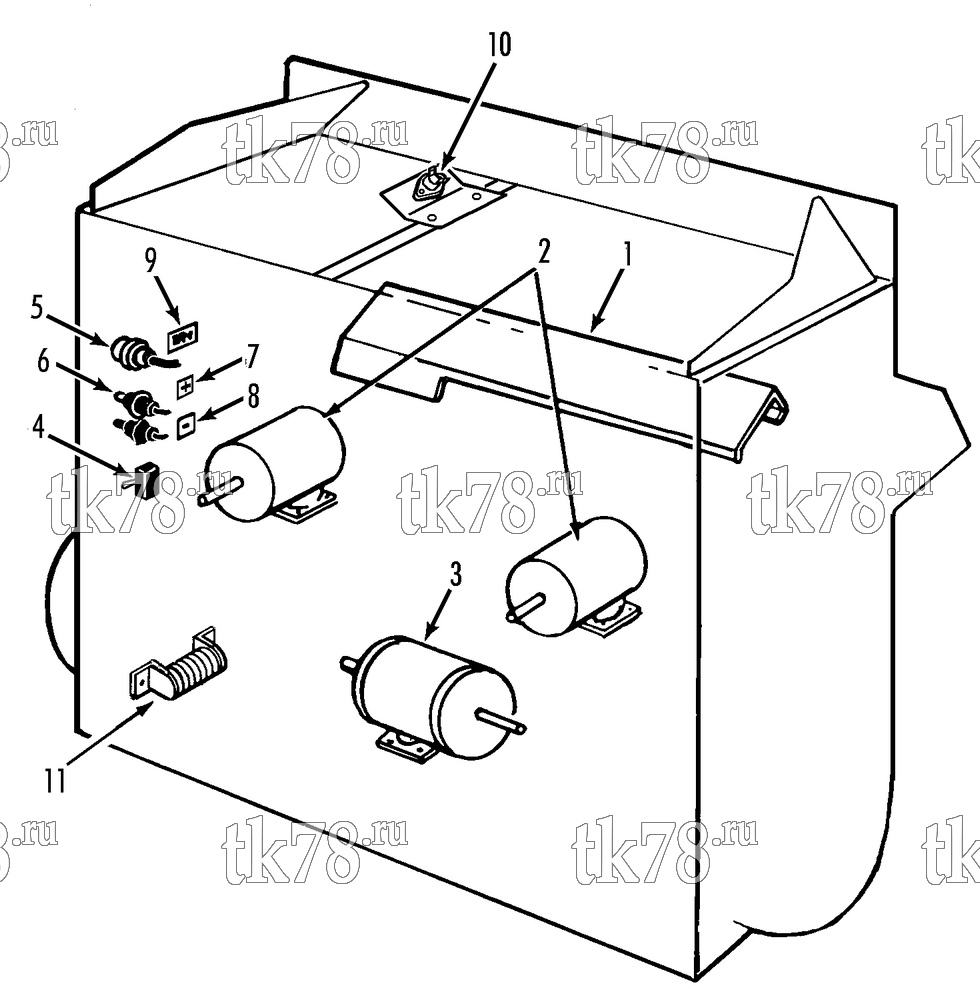

Установкa Thermo King схема ELECTRICAL COMPONENTS – 78D5
Обновление от: 6/16/00
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-3085 | PANEL - control | 1 | |
| 2 | 104-476 | MOTOR - condenser fan (see 75E7) | 2 | |
| 99-9084 | NAMEPLATE - arrow | 2 | ||
| 99-6141 | NAMEPLATE - Caution, Fan | 2 | ||
| 3 | 104-323 | MOTOR - evaporator blower (see 76C1) | 1 | |
| 99-9084 | NAMEPLATE - arrow | 1 | ||
| 99-6141 | NAMEPLATE - Caution, Fan | 1 | ||
| 4 | 44-2368 | SWITCH - toggle | 1 | |
| 99-1756 | NAMEPLATE - On/Off | 1 | ||
| 5 | 44-7132 | HARNESS - control (complete) | 1 | |
| 44-6837 | RECEPTACLE (16-pin) | 1 | ||
| 44-6836 | PIN - sealing | 5 | ||
| 44-6914 | SOCKET (12 gauge) | 11 | ||
| 6 | 55-3167 | STUD - terminal | 2 | |
| 55-5901 | WASHER - shoulder | 1 | ||
| 55-4110 | WASHER - spacer | 1 | ||
| 55-671 | NUT - jam | 8 | ||
| 55-448 | FLATWASHER | 8 | ||
| 55-3066 | LOCKWASHER (internal) | 8 | ||
| 55-3672 | LOCKWASHER (internal/external) | 1 | ||
| 7 | 99-4660 | NAMEPLATE - Positive | 1 | |
| 8 | 99-4661 | NAMEPLATE - Negative | 1 | |
| 9 | 99-2477 | NAMEPLATE - 24 Volt | 1 | |
| 10 | 44-6005 | THERMOSTAT - ambient (fixed 45 deg) | 1 | |
| 99-7808 | BRACKET - thermostat | 1 | ||
| 55-2490 | SCREW - thermostat | 2 | ||
| 11 | 44-6348 | RESISTOR - evaporator motor | 1 |
