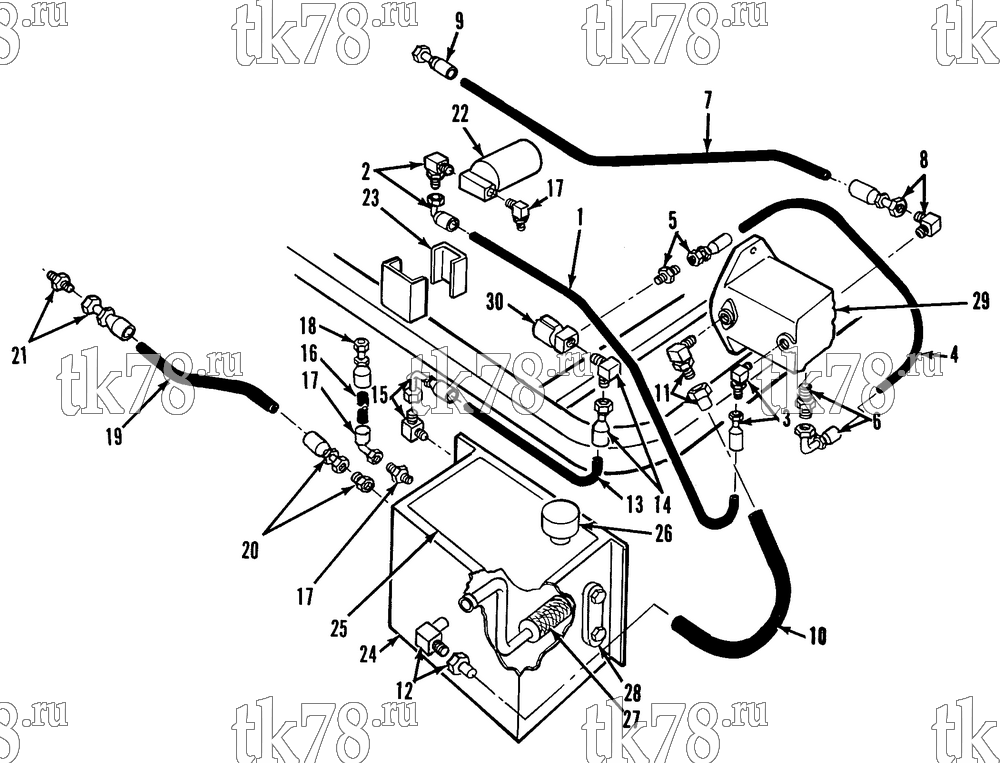

Установкa Thermo King схема INSTALLATION COMPONENTS - HYDRAULIC PUMP – 78A5
Обновление от: 11/20/95
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-6217 | HOSE - hydraulic (3/8 id, pump to filter) | 1 | |
| 2 | 11-6199 | FITTING - hose | 1 | |
| 11-6204 | ADAPTER (90 deg) | 1 | ||
| 11-6205 | ADAPTER (reducer) | 1 | ||
| 3 | 11-6195 | FITTING - hose (straight) | 1 | |
| 11-6193 | ADAPTER (90 deg) | 1 | ||
| 4 | 11-6216 | HOSE - pump bleed to solenoid | 1 | |
| 5 | 11-6195 | FITTING - hose (straight) | 1 | |
| 11-6208 | ADAPTER | 1 | ||
| 6 | 11-6198 | FITTING - hose (90 deg) | 1 | |
| 11-6207 | ADAPTER | 1 | ||
| 7 | 11-6217 | HOSE - pump to system | 1 | |
| 8 | 11-6196 | FITTING - hose (straight) | 1 | |
| 11-6193 | ADAPTER | 1 | ||
| 9 | 11-6196 | FITTING - hose (straight) | 1 | |
| 11-6202 | ADAPTER | 1 | ||
| 11-6210 | ADAPTER (90 deg) | 1 | ||
| 10 | 11-6219 | HOSE - suction (tank to pump) | 1 | |
| 11 | 11-6214 | FITTING - hose (straight) | 1 | |
| 11-6213 | CLAMP - hose | 1 | ||
| 11-6206 | ADAPTER (90 deg) | 1 | ||
| 12 | 11-6214 | FITTING - hose (straight) | 1 | |
| 11-6213 | CLAMP - hose | 1 | ||
| 11-6201 | ADAPTER (90 deg) | 1 | ||
| 13 | 11-6216 | HOSE - solenoid valve to tank | 1 | |
| 14 | 11-6195 | FITTING - hose (straight) | 1 | |
| 11-6194 | ADAPTER (90 deg) | 1 | ||
| 15 | 11-6212 | FITTING - hose (90 deg) | 1 | |
| 11-6200 | ADAPTER (90 deg) | 1 | ||
| 16 | 11-6217 | HOSE - filter to tank | 1 | |
| 17 | 11-6196 | FITTING - hose (straight) | 1 | |
| 11-6202 | ADAPTER (straight) | 1 | ||
| 18 | 11-6199 | FITTING - hose (90 deg) | 1 | |
| 11-6209 | ADAPTER (straight) | 1 | ||
| 19 | 11-6218 | HOSE - return (system to tank) | 1 | |
| 20 | 11-6197 | FITTING - hose (straight) | 1 | |
| 11-6203 | ADAPTER (straight) | 1 | ||
| 21 | 11-6197 | FITTING - hose (straight) | 1 | |
| 11-6211 | ADAPTER (90 deg) | 1 | ||
| 22 | 11-6215 | FILTER - hydraulic | 1 | |
| 11-6221 | ELEMENT - filter | 1 | ||
| 55-329 | SCREW - filter | 2 | ||
| 55-402 | FLATWASHER | 2 | ||
| 55-375 | LOCKWASHER | 2 | ||
| 23 | 99-9599 | BRACKET - filter | 1 | |
| 55-141 | SCREW - bracket | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 55-371 | FLATWASHER | 2 | ||
| 24 | 12-494 | TANK - hydraulic | 1 | |
| 25 | 12-495 | COVER - tank | 1 | |
| 55-736 | SCREW - cover | 12 | ||
| 55-1511 | LOCKWASHER | 12 | ||
| 55-431 | FLATWASHER | 12 | ||
| 26 | 11-6192 | CAP - breather | 1 | |
| 27 | 11-6191 | STRAINER - inlet | 1 | |
| 28 | 11-6190 | INDICATOR - fluid level | 1 | |
| 29 | 11-6187 | PUMP - hydraulic | 1 | |
| 30-182 | KIT - seal (incl o-rings & shaft seals) | 1 | ||
| 10-272 | KIT - cartridge (incl rotor, vanes & rotor housing) | 1 | ||
| 30 | 44-7329 | VALVE - solenoid | 1 | |
| 44-7344 | COIL (12V) | 1 |
