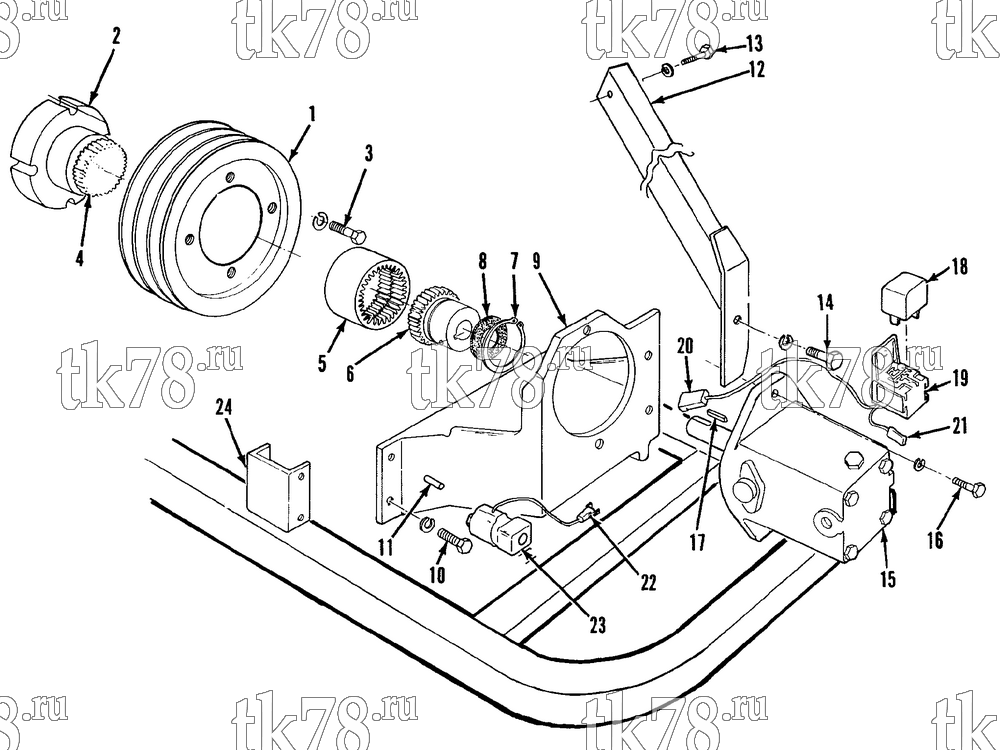

Установкa Thermo King схема HYDRAULIC PUMP GROUP – 78A4
Обновление от: 3/14/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 77-1345 | PULLEY - water pump (5.0 in dia) | 1 | |
| 2 | 11-6185 | HUB - drive | 1 | |
| 55-1486 | PIN - spring | 1 | ||
| 3 | 55-5606 | SCREW - hub & pulley | 4 | |
| 55-5411 | LOCKWASHER | 1 | ||
| 4 | 11-6186 | SPLINE - engine | 1 | |
| 5 | 11-6189 | COLLAR - spline | 1 | |
| 6 | 11-6188 | SPLINE - pump | 1 | |
| 7 | 55-5917 | RING - retaining | 1 | |
| 8 | 55-5914 | WASHER - special | 1 | |
| 9 | 99-9598 | BRACKET - pump | 1 | |
| 10 | 55-5594 | SCREW - bracket | 2 | |
| 55-2038 | FLATWASHER | 2 | ||
| 11 | 55-1486 | PIN - spring, bracket | 2 | |
| 12 | 99-9597 | BRACE - pump support | 1 | |
| 13 | 55-5421 | SCREW - brace to engine | 1 | |
| 55-5411 | LOCKWASHER | 1 | ||
| 55-4625 | FLATWASHER | 1 | ||
| 14 | 55-1469 | SCREW - brace to bracket | 2 | |
| 55-5078 | NUT | 2 | ||
| 15 | 11-6187 | PUMP - hydraulic | 1 | |
| 30-182 | KIT - seal (incl o-rings & shaft seals) | 1 | ||
| 10-272 | KIT - cartridge (incl rotor, vanes & rotor housing) | 1 | ||
| 16 | 55-1469 | SCREW - pump | 2 | |
| 55-402 | FLATWASHER | 4 | ||
| 55-5078 | NUT | 2 | ||
| 17 | 55-2048 | KEY | 1 | |
| 18 | 44-7332 | RELAY - assembly | 1 | |
| 44-9111 | RELAY - mini | 1 | ||
|
10-44-9111 | Реле | 1 310 ₽ |
|
| 19 | 44-5337 | CONNECTOR - relay | 1 | |
| 20 | 44-5838 | CONNECTOR - tower (2-pin) | 1 | |
| 21 | 44-7327 | CONNECTOR - tower (1-pin) | 1 | |
| 44-5884 | TERMINAL - female (18-20 ga) | 3 | ||
| 44-5885 | SEAL - cable (green, 18-22 ga) | 3 | ||
| 22 | 44-5835 | CONNECTOR (2-pin) | 1 | |
| 44-5883 | TERMINAL - male (18-20 ga) | 2 | ||
| 44-5885 | SEAL - cable (green, 18-22 ga) | 2 | ||
| 23 | 44-7329 | VALVE - solenoid | 1 | |
| 44-7344 | COIL (12V) | 1 | ||
| 55-263 | SCREW - valve | 2 | ||
| 55-411 | FLATWASHER | 2 | ||
| 55-4118 | NUT | 2 | ||
| 24 | 99-9565 | BRACKET - filter | 1 |
