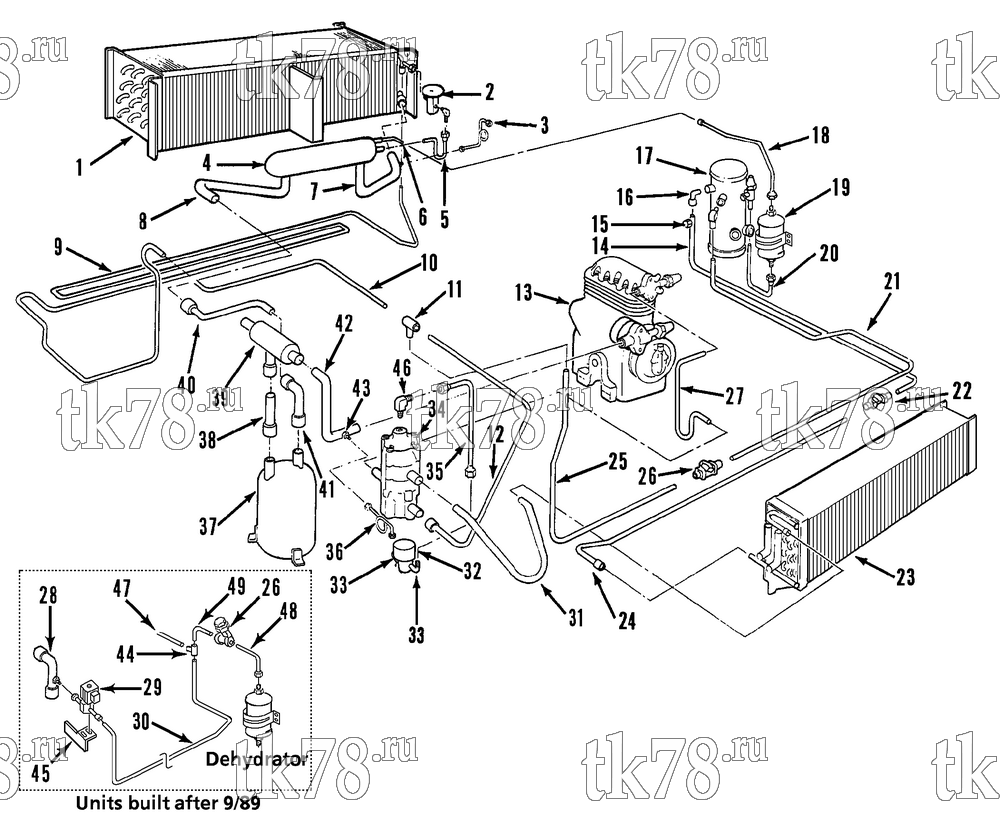

Установкa Thermo King схема REFRIGERATION COMPONENTS (Before 5/91) – 77A1
Обновление от: 5/30/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-851 | COIL - evaporator (see 77A4) | 1 | |
| 99-9947 | NAMEPLATE - Pressure Vessel (EMEIA) | 1 | ||
| 2 | 66-4615 | VALVE - expansion (R12) | 1 | |
| 66-5335 | ELEMENT - power | 1 | ||
| 61-811 | SCREEN - inlet | 1 | ||
| 66-5016 | VALVE - expansion (R502) | 1 | ||
| 66-5335 | ELEMENT - power | 1 | ||
| 61-811 | SCREEN - inlet | 1 | ||
| 66-4953 | VALVE - expansion (R500) | 1 | ||
| 66-5359 | ELEMENT - power | 1 | ||
| 61-811 | SCREEN - inlet | 1 | ||
| 91-617 | NAMEPLATE (R500) | 1 | ||
| 203-534 | TAPE - insulating | A/R | ||
| 3 | 66-4619 | TUBE - equalizer | 1 | |
| 4 | 67-852 | HEAT EXCHANGER (incl 5, 6, 7, 8) | 1 | |
| 5 | 66-4613 | TUBE - exchanger to expansion valve | 1 | |
| 6 | 66-4612 | TUBE - liquid inlet | 1 | |
| 7 | 66-4769 | TUBE - suction inlet | 1 | |
| 66-874 | FITTING (1/4 fl) | 1 | ||
| 8 | 66-4611 | TUBE - suction outlet | 1 | |
| 9 | 66-4614 | TUBE - defrost | 1 | |
| 10 | 66-4632 | TUBE - defrost | 1 | |
| 11 | 55-6222 | TEE | 1 | |
| 55-6431 | CAP - end (after 9/89) | 1 | ||
| 12 | 66-4631 | TUBE - defrost (before 9/89) | 1 | |
| 66-9903 | TUBE - defrost (after 9/89) | 1 | ||
| 55-2865 | COUPLING (1/2 sld, 3/8 sld) | 1 | ||
| 13 | NSS | COMPRESSOR (see 128G7) | 1 | |
| 14 | 66-4629 | TUBE - receiver to check valve | 1 | |
| 66-3295 | FITTING - saddle | 1 | ||
| 15 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING - relief valve | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 16 | 55-1464 | ELBOW | 1 | |
| 17 | 67-1189 | TANK - receiver | 1 | |
|
10-67-1189 | Бак фреона, KD/MD/RD/TD/URD | 16 670 ₽ |
|
| 66-8339 | INDICATOR - liquid | 1 | ||
| 66-9257 | BALL | 1 | ||
| 33-1222 | O-RING | 1 | ||
| 55-3250 | ELBOW (3/8 ftg x 3/8 sld) | 1 | ||
| 99-9841 | NAMEPLATE - Pressure Vessel (EMEIA) | 1 | ||
| 55-4955 | NUT - receiver | 2 | ||
| 55-2641 | FLATWASHER | 1 | ||
| 55-4931 | WASHER - spacer | 1 | ||
| 18 | 66-4627 | TUBE - dehydrator to exchanger | 1 | |
| 19 | 66-814 | DEHYDRATOR | 1 | |
|
10-66-814 | Дегидратор, KD/MD/RD-II | 5 700 ₽ |
|
| 99-9209 | BRACKET - dehydrator | 1 | ||
| 99-4236 | PAD - dehydrator | 1 | ||
| 91-1323 | BOLTPLATE - hanger | 1 | ||
| 55-2979 | SCREW - dehydrator | 2 | ||
| 55-1587 | SCREW - clamp | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4118 | NUT (stop) | 2 | ||
| 20 | 66-5180 | TUBE - receiver to dehydrator | 1 | |
| 21 | 66-4634 | TUBE - check valve to receiver | 1 | |
| 22 | 66-3655 | VALVE - check (see 9G12) | 1 | |
| 23 | 67-819 | COIL - condenser/radiator | 1 | |
| 99-9948 | NAMEPLATE - Pressure Vessel (EMEIA) | 1 | ||
| 55-2977 | SCREW - coil | 10 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-4953 | NUT | 2 | ||
| 24 | 66-4626 | TUBE - coil to check valve | 1 | |
| 25 | 66-4633 | TUBE - tee to check valve (before 9/89) | 1 | |
| 26 | 66-3654 | VALVE - check (see 9G12) | 1 | |
| 27 | 66-4981 | TUBE - discharge to 3-way | 1 | |
| 28 | 66-5343 | TUBE - exchanger to accumulator | 1 | |
| 29 | 44-8185 | VALVE - solenoid | 1 | |
| 41-3681 | COIL - valve | 1 | ||
| 41-3681 OEM | Катушка соленоида | 24 630 ₽ |
|
|
|
10-41-3681 | Катушка соленоида 12V | 12 220 ₽ |
|
| 30 | 66-5346 | TUBE - tee to solenoid | 1 | |
| 31 | 66-4982 | TUBE - 3-way to condenser | 1 | |
| 32 | 66-2009 | VALVE - pilot solenoid | 1 | |
|
10-66-2009 | Управляющий клапан, KD/MD/TD/RD-II / SB-I/II/III | 18 500 ₽ |
|
| 44-3803 | COIL - valve (3/8 bore) | 1 | ||
| 41-1525 | COIL - valve (7/16 bore) | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 44-2756 | DIODE | 1 | ||
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 55-3029 | SCREW - solenoid | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 55-3800 | LOCKWASHER | 2 | ||
| 99-9828 | SUPPORT - pilot solenoid | 1 | ||
| 55-2991 | SCREW - support | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 99-9806 | NUTSTRIP | 1 | ||
| 55-8786 | NUT - valve | 1 | ||
| 33 | 55-4489 | ELBOW | 2 | |
| 34 | 61-1237 | VALVE - 3-way (see 87C10) | 1 | |
| 55-3618 | SCREW - valve | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 35 | 66-4617 | TUBE - solenoid to 3-way | 1 | |
| 36 | 66-4618 | TUBE - solenoid to suction tube | 1 | |
| 37 | 67-886 | TANK - accumulator (see 77A5) | 1 | |
| 99-9840 | NAMEPLATE - Pressure Vessel (EMEIA) | 1 | ||
| 38 | 66-4620 | TUBE - accumulator to cpr | 1 | |
| 39 | 61-4527 | VALVE - cpr | 1 | |
| 14-60052-02 OEM | Клапан KVL Ø 28мм, Maxima / Supra 5XX/8XX/850MT/9XX/950MT/1150/1150MT/1250/1250MT | 39 280 ₽ |
|
|
|
10-61-4527 | Клапан KVL Ø 28мм, MD/KD-II/MD-II/TS/T-Series | 27 760 ₽ |
|
| P-14-00205-01 | Клапан KVL Ø 28мм, Maxima / Supra 5XX/8XX/850MT/9XX/950MT/1150/1150MT/1250/1250MT | 27 760 ₽ |
|
|
| 61-2285 | COUPLING (1-1/8) | 1 | ||
| 40 | 66-4624 | TUBE - exchanger to accumulator | 1 | |
| 41 | 66-4623 | TUBE - exchanger to accumulator | 1 | |
| 42 | 66-4984 | TUBE - cpr to compressor | 1 | |
| 43 | 66-874 | FITTING - flare | 1 | |
| 44 | 55-6218 | TEE (3/8 x 3/8 x 1/2) | 1 | |
| 45 | 91-1327 | BRACKET - solenoid | 1 | |
| 91-1328 | CLAMP - solenoid | 1 | ||
| 46 | 55-308 | ELBOW | 1 | |
| 47 | 66-5344 | TUBE - tee to exchanger | 1 | |
| 48 | 66-5442 | TUBE - check valve to tee | 1 | |
| 55-373 | NUT - flare | 1 | ||
| 49 | 66-4152 | TUBE - dehydrator to valve | 1 | |
| 40-368 | KIT - Thermax (for KD-II & MD-II built 10/88 thru 10/89) | 1 | ||
| 90-149 | KIT - dehydrator (units built before 5/91) | 1 |
