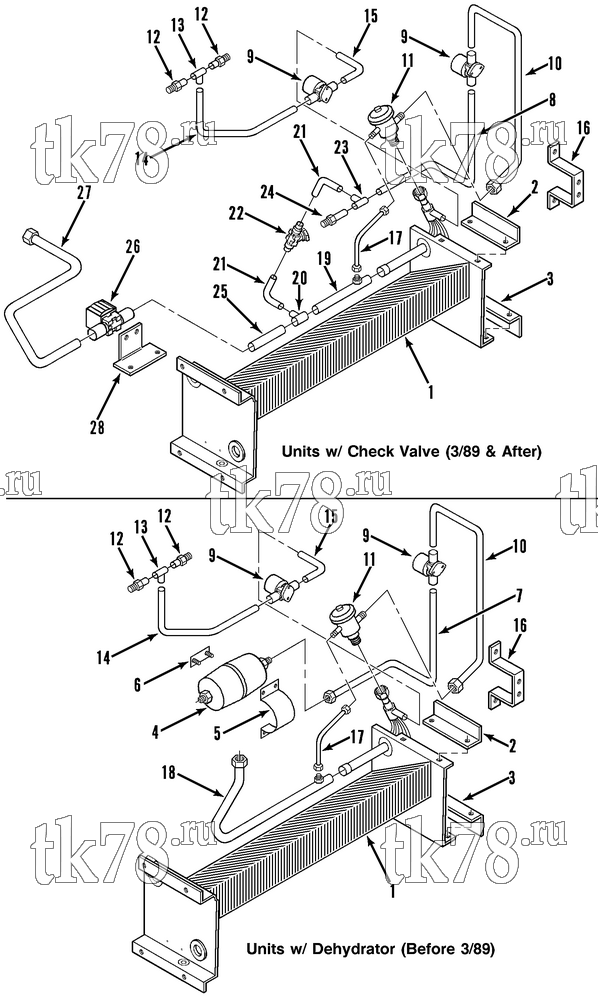

Установкa Thermo King схема EVAPORATOR REFRIGERATION (KIT 712250) – 76F11
Обновление от: 8/25/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-818 | COIL - evaporator | 1 | |
| 2 | 99-9206 | ANGLE - coil | 1 | |
| 3 | 99-9207 | BRACKET - coil | 1 | |
| 55-1587 | SCREW - coil, angle & bracket | 12 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-1800 | LOCKWASHER | 12 | ||
| 55-4953 | NUT | 12 | ||
| 4 | 66-814 | DEHYDRATOR (before 3/89) | 1 | |
|
10-66-814 | Дегидратор, KD/MD/RD-II | 5 700 ₽ |
|
| 5 | 99-9209 | BRACKET - dehydrator | 1 | |
| 99-4326 | PAD (rubber) | 1 | ||
| 6 | 99-4311 | BOLTSTRIP | 2 | |
| 55-4953 | NUT - bracket | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 7 | 66-4926 | TUBE - dehydrator to solenoid (before 3/89) | 1 | |
| 8 | 66-5275 | TUBE - tee to solenoid (3/89 & after) | 1 | |
| 9 | 66-3693 | VALVE - solenoid (see 64C6) | 1 | |
| 10 | 66-4925 | TUBE - solenoid to expansion valve | 1 | |
| 11 | 66-4074 | VALVE - expansion (R12) | 1 | |
| 66-4822 | VALVE - expansion (R502) | 1 | ||
| 91-871 | NAMEPLATE - R12 | 1 | ||
| 99-3274 | NAMEPLATE - R502 | 1 | ||
| 12 | 55-4136 | ADAPTER | 2 | |
| 13 | 66-620 | TEE | 1 | |
| 14 | 66-4534 | TUBE - tee to solenoid | 1 | |
| 15 | 66-4603 | TUBE - solenoid to valve | 1 | |
| 16 | 99-9214 | BRACKET - solenoid | 1 | |
| 17 | 66-4601 | TUBE - equalizer | 1 | |
| 18 | 66-4530 | TUBE - suction (before 3/89) | 1 | |
| 66-874 | FITTING | 1 | ||
| 19 | 66-5036 | TUBE - suction (3/89 & after) | 1 | |
| 66-874 | FITTING | 1 | ||
| 20 | 66-620 | TEE (5/8) | 1 | |
| 21 | 66-7399 | TUBE - tee to check valve | 2 | |
| 22 | 66-3655 | VALVE - check (see 9G12) | 1 | |
| 23 | 55-2296 | TEE (1/2 x 1/2 x 1/2) | 1 | |
| 24 | 55-4131 | ADAPTER (3/8) | 1 | |
| 25 | 66-5044 | TUBE - tee to valve (suction) | 1 | |
| 26 | 66-4960 | VALVE - solenoid (suction) | 1 | |
| 27 | 66-5045 | TUBE - suction | 1 | |
| 28 | 91-900 | BRACKET - valve | 1 |
