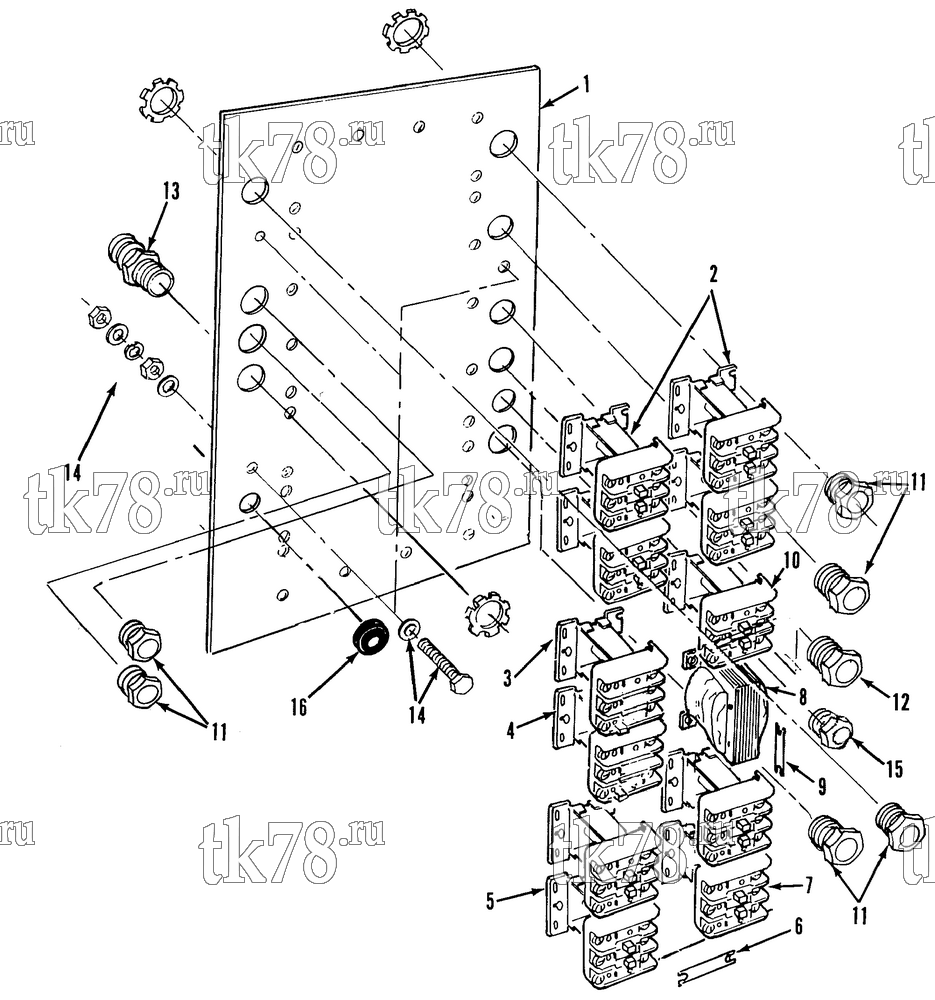

Установкa Thermo King схема HIGH VOLTAGE TRAY – 76D7
Обновление от: 10/28/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 99-9377 | TRAY - only | 1 | |
| 2 | 44-5294 | CONTACTOR - evaporator & condenser fans | 2 | |
| 44-4286 | COIL | 2 | ||
| 40-287 | KIT - points | 2 | ||
| 55-3511 | SCREW - contactor | 4 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 3 | 44-6092 | RELAY - compressor overload (low speed) | 1 | |
| 44-6081 | HEATER - overload | 1 | ||
| 4 | 44-6092 | RELAY - compressor overload (high speed) | 1 | |
| 44-6083 | HEATER - overload | 1 | ||
| 55-2989 | SCREW - relay | 6 | ||
| 55-2202 | LOCKWASHER | 6 | ||
| 55-2201 | FLATWASHER | 6 | ||
| 5 | 44-6164 | CONTACTOR - compressor | 1 | |
| 44-4286 | COIL - contactor | 1 | ||
| N/A | KIT - points | 1 | ||
| 55-3511 | SCREW - contactor | 4 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 6 | 44-5845 | JUMPER | 12 | |
| 7 | 41-1971 | CONTACTOR - phase correction (see 8, 9, 10, 11) | 1 | |
| 55-3511 | SCREW - contactor | 4 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 8 | 44-5521 | TRANSFORMER | 1 | |
| 99-3522 | NAMEPLATE - Caution 460 Volts | 1 | ||
| 55-3842 | SCREW - transformer | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 9 | 44-3710 | JUMPER - strip | 2 | |
| 10 | 44-5300 | CONTACTOR - evaporator heater | 1 | |
| 44-4286 | COIL | 1 | ||
| 40-287 | KIT - points | 1 | ||
| 55-3025 | SCREW - contactor | 3 | ||
| 55-2964 | LOCKWASHER | 3 | ||
| 55-2001 | FLATWASHER | 3 | ||
| 11 | 55-2788 | FITTING - connector | 5 | |
| 55-5018 | NUT | 5 | ||
| 12 | 55-5111 | CONNECTOR - liquid tite | 4 | |
| 13 | 55-3539 | CONNECTOR - barb | 1 | |
| 55-6127 | NUT | 1 | ||
| 33-1056 | O-RING - fitting | 1 | ||
| 14 | 55-3000 | SCREW - ground | 3 | |
| 55-3008 | WASHER - sealing | 3 | ||
| 55-2996 | LOCKWASHER | 6 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 55-2965 | NUT | 6 | ||
| 15 | 55-5112 | CONNECTOR - liquid tite | 1 | |
| 16 | 33-1435 | GROMMET | 1 |
