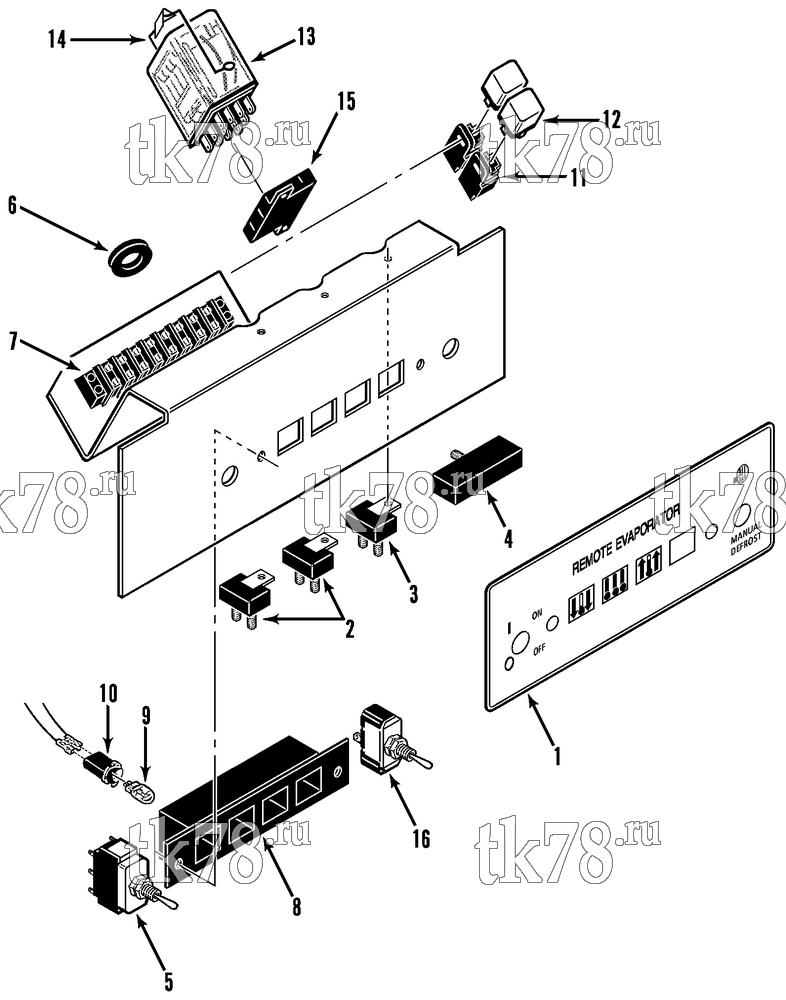

Установкa Thermo King схема SWITCH PANEL PE ER INTEGRAL CONTROL – 75D9
Обновление от: 3/20/97
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 99-9293 | NAMEPLATE - Switch Remote Evaporator | 1 | |
| 2 | 44-6145 | BREAKER - circuit | 2 | |
|
30-44-6145 | Предохранитель 20А | 1 320 ₽ |
|
| 3 | 44-6146 | BREAKER - circuit | 1 | |
|
10-44-6146 | Автоматический выключатель, 40A | 2 220 ₽ |
|
| 55-2995 | SCREW | 3 | ||
| 55-2996 | LOCKWASHER | 3 | ||
| 55-2965 | NUT | 3 | ||
| 55-2001 | FLATWASHER | 3 | ||
| 55-1511 | LOCKWASHER | 3 | ||
| 4 | 44-6726 | BREAKER - circuit | 1 | |
| 5 | 44-709 | SWITCH - on/off | 1 | |
|
10-44-709 | Выключатель четырехполюсный | 5 130 ₽ |
|
| 6 | 33-563 | GROMMET | 1 | |
| 7 | 44-5057 | BOARD - terminal | 1 | |
| 99-9294 | MARKSTRIP | 1 | ||
| 55-3684 | SCREW | 2 | ||
| 55-3800 | LOCKWASHER | 4 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 55-2990 | NUT | 4 | ||
| 8 | 99-8322 | HOUSING - lamp | 1 | |
| 55-2995 | SCREW | 2 | ||
| 55-2996 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 9 | 44-3711 | BULB | 4 | |
| 10 | 44-6462 | SOCKET - bulb | 4 | |
| 11 | 44-9111 | RELAY | 2 | |
|
10-44-9111 | Реле | 1 310 ₽ |
|
| 55-2995 | SCREW | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-1511 | LOCKWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 12 | 44-5537 | SOCKET - relay | 2 | |
| 13 | 44-3186 | RELAY | 1 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 14 | 99-2027 | SPRING - holddown | 1 | |
| 55-2771 | CLAMP | 1 | ||
| 55-2270 | RIVET | 2 | ||
| 15 | 44-3184 | SOCKET - relay | 1 | |
| 16 | 44-1164 | SWITCH - defrost | 1 | |
|
10-44-1164 | Выключатель размораживания, JD/KD/MD/RD/TD-I/II / SB-I/II/III | 2 890 ₽ |
|
|
P-10-01129-01 | Выключатель разморозки, Genesis/Thunderbird | 2 890 ₽ |
|
| 17 | 99-9287 | PANEL - lower switch | 1 | |
| 99-4976 | STRIP - gasket (50 ft) | A/R |
