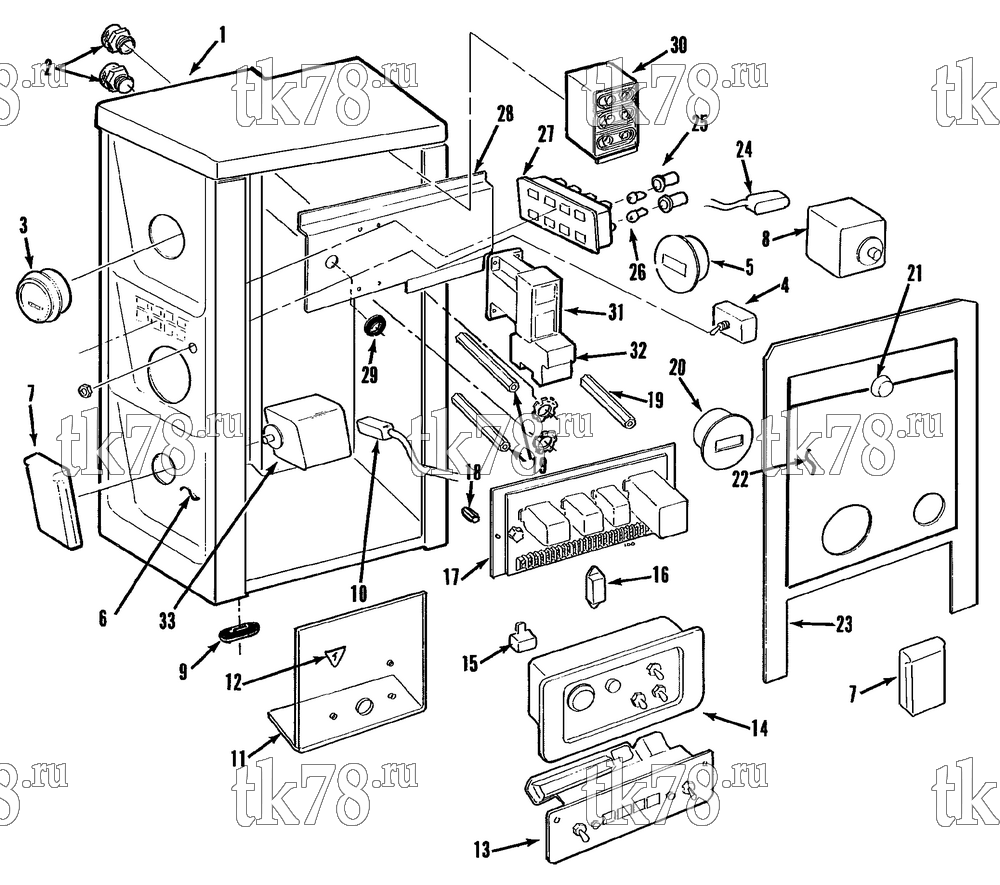

Установкa Thermo King схема CONTROL BOX (PE) – 75D8
Обновление от: 10/16/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-3067 | BOX - control | 1 | |
| 2 | 44-2412 | CONNECTOR - cable | 2 | |
| 33-144 | O-RING | 1 | ||
| 33-1010 | GROMMET | 1 | ||
| 55-2635 | NUT | 2 | ||
| 3 | 44-8764 | HOURMETER | 1 | |
|
10-44-8764 | Счетчик часов | 7 260 ₽ |
|
| 99-8601 | NAMEPLATE - Hourmeter | 1 | ||
| 4 | 44-7064 | HARNESS - switch (Cycle Sentry) | 1 | |
| 44-709 | SWITCH | 1 | ||
|
10-44-709 | Выключатель четырехполюсный | 5 130 ₽ |
|
| 44-6590 | DIODE - silicone rectifier | 1 | ||
| 44-5140 | CONNECTOR (7-pin) | 1 | ||
| 44-5719 | CONNECTOR (8-pin, male) | 1 | ||
| 5 | 61-3467 | THERMOMETER | 1 | |
|
10-61-3467 | Термометр | 15 250 ₽ |
|
| 66-1153 | LENS | 1 | ||
| 33-2430 | GASKET - lens (use on plastic body thermometer) | 1 | ||
| 33-666 | GASKET - lens (use on metal body thermometer) | 1 | ||
| 41-2590 | THERMOMETER - digital LED (F) | 1 | ||
| 44-5234 | SENSOR (10 ft) | 1 | ||
|
10-44-5234 | Сенсор | 14 130 ₽ |
|
| 55-2997 | SCREW - thermometer | 3 | ||
| 55-2999 | NUT | 3 | ||
| 55-3014 | WASHER | 3 | ||
| 6 | 99-8014 | NAMEPLATE - gauge panel | 1 | |
| 7 | 99-5635 | COVER - thermostat | 2 | |
| 33-1373 | GASKET | 2 | ||
| 8 | 45-1564 | THERMOSTAT - TG IV | 1 | |
| 55-2263 | SCREW - thermostat | 4 | ||
| 9 | 33-628 | GROMMET | 1 | |
| 10 | 44-7063 | HARNESS - thermostat | 1 | |
| 44-5310 | CONNECTOR | 1 | ||
| 44-5718 | CONNECTOR (male) | 1 | ||
| 44-5600 | CONNECTOR | 1 | ||
| 44-5030 | CONNECTOR | 1 | ||
| 11 | 99-9288 | COVER - high voltage | 1 | |
| 12 | 99-7834 | NAMEPLATE - Caution | 1 | |
| 13 | 99-9287 | PANEL - lower (see 75D9) | 1 | |
| 55-3623 | SCREW | 4 | ||
| 55-3493 | NUT - captive | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 14 | 45-252 | PANEL - switch (see 67D6) | 1 | |
| 55-3085 | NUT - speed | 2 | ||
| 15 | 44-5808 | BREAKER - circuit | 1 | |
| 44-2739 | NAMEPLATE - Push to Reset | 1 | ||
| 55-2995 | SCREW - breaker | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 55-2965 | NUT | 1 | ||
| 16 | 44-8017 | DETECTOR - liquid level | 1 | |
| 55-1844 | SCREW | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 17 | 44-7246 | BOARD - pc (Cycle Sentry) | 1 | |
|
10-44-7246 | Плата, CS-II with Buzzer | 28 560 ₽ |
|
| 55-1801 | NUT | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 18 | 99-8609 | SPACER | 1 | |
| 55-3018 | SCREW | 1 | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 19 | 99-8608 | SPACER - hex | 3 | |
| 55-3018 | SCREW | 3 | ||
|
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-2086 | FLATWASHER | 3 | ||
| 20 | 44-8045 | THERMOMETER - digital (F) | 1 | |
| 99-7640 | BRACKET - thermometer | 1 | ||
| 44-5896 | SENSOR | 1 | ||
| 55-2997 | SCREW | 3 | ||
| 55-3014 | WASHER | 3 | ||
| 55-3013 | FLATWASHER | 3 | ||
| 55-2999 | NUT | 3 | ||
| 21 | 92-8854 | BUTTON - reset | 1 | |
| 22 | 99-9289 | NAMEPLATE - Operating Remote Evaporator | 1 | |
| 23 | 99-9290 | PANEL - cover | 1 | |
| 99-4976 | STRIP (neoprene, 50 ft) | A/R | ||
| 24 | 44-7062 | HARNESS - thermostat (ER) | 1 | |
| 44-5310 | CONNECTOR | 1 | ||
| 44-2825 | COVER - socket | 1 | ||
| 44-5030 | CONNECTOR | 1 | ||
| 44-4925 | CONNECTOR | 1 | ||
| 44-5763 | DIODE | 1 | ||
| 25 | 44-6916 | HARNESS - indicator light | 1 | |
| 44-6462 | SOCKET | 5 | ||
| 44-5030 | CONNECTOR | 1 | ||
| 26 | 44-3711 | BULB | 5 | |
| 27 | 44-6489 | HOUSING - lamp | 1 | |
| 33-1606 | GASKET - lamp housing | 1 | ||
| 55-2995 | SCREW | 4 | ||
| 55-2965 | NUT | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 27 | 55-3013 | FLATWASHER | 4 | |
| 28 | 99-9291 | BRACKET - high voltage | 1 | |
| 29 | 33-415 | GROMMET | 1 | |
| 30 | 44-7041 | CAPACITOR | 3 | |
| 99-9292 | BRACKET - capacitor | 1 | ||
| 31 | 41-5629 | CONTACTOR (4 pole) | 1 | |
| 55-3580 | SCREW - contactor | 2 | ||
| 55-415 | LOCKWASHER | 2 | ||
| 32 | 44-6888 | RELAY - overload | 1 | |
| 33 | 40-372 | THERMOSTAT - TG (host unit) | 1 |
