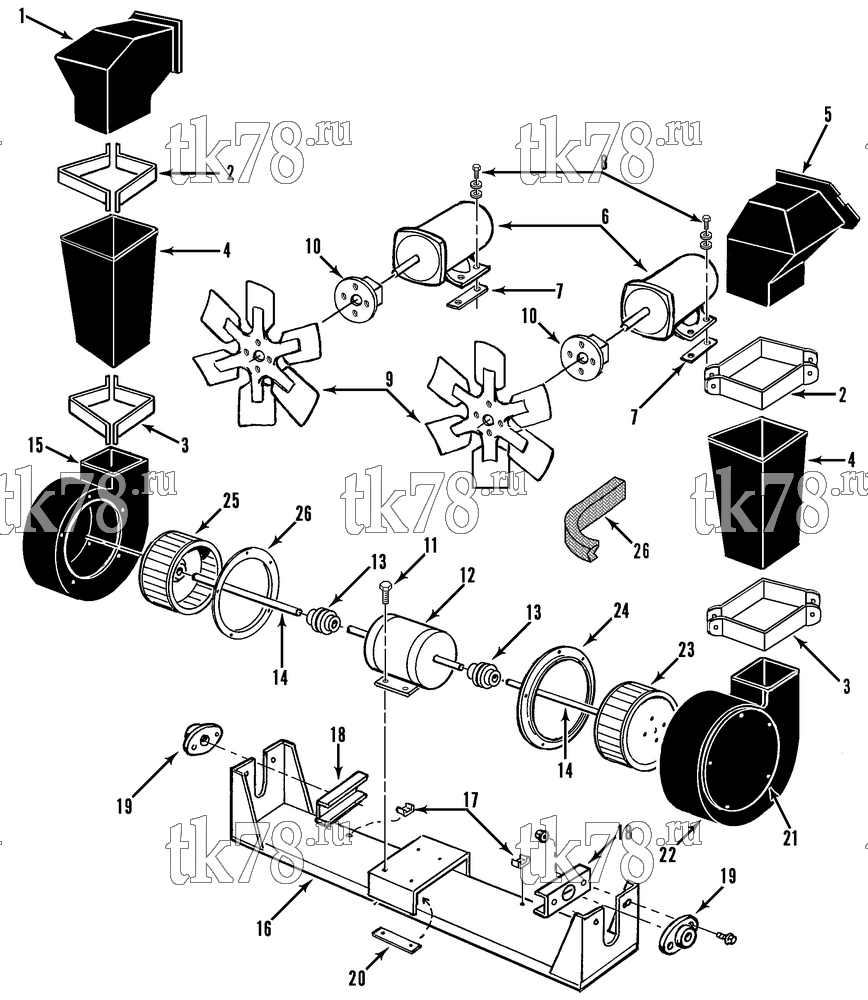

Установкa Thermo King схема BLOWERS, FANS, DUCTS & MOTORS (M2) – 75D4
Обновление от: 1/17/02
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-2839 | DUCT (roadside) | 1 | |
| 2 | 99-8334 | CLAMP - duct (top) | 4 | |
| 55-2977 | SCREW - clamp | 8 | ||
| 55-2086 | FLATWASHER | 16 | ||
| 55-4953 | LOCKNUT | 4 | ||
| 3 | 99-8333 | CLAMP - duct (bottom) | 4 | |
| 4 | 98-2840 | DUCT - vertical | 2 | |
| 5 | 98-2838 | DUCT (curbside) | 1 | |
| 6 | 104-426 | MOTOR - condenser fan (28VDC, 3/4 hp) | 2 | |
| 77-1032 | BEARING (brush end) | 1 | ||
| 77-1305 | BEARING (opposite brush end) | 1 | ||
| 44-5416 | BRUSH (set of 4) | 1 | ||
| 33-1370 | SEAL - oil | 1 | ||
| 7 | 99-8335 | NUTSTRIP | 4 | |
| 55-3035 | RIVET - blind | 4 | ||
| 8 | 55-2969 | SCREW - motor | 8 | |
| 55-4727 | FLATWASHER | 8 | ||
| 55-2959 | LOCKWASHER | 8 | ||
| 9 | 78-1115 | FAN - assembly (complete) | 2 | |
| 10 | 77-1457 | HUB - fan | 2 | |
| 55-2963 | SCREW - hub to fan | 4 | ||
| 55-2959 | LOCKWASHER | 4 | ||
| 55-3089 | SCREW - hub to shaft | 2 | ||
| 55-2958 | FLATWASHER | 4 | ||
| 55-1587 | SCREW | 4 | ||
| 55-4953 | NUT (hexstop) | 4 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-1801 | NUT (hexstop) | 2 | ||
| 99-6141 | NAMEPLATE - Caution Fan | 4 | ||
| 11 | 55-3490 | SCREW - motor | 4 | |
| 12 | 104-323 | MOTOR - evaporator blower (28VDC, 1.25 hp, see 76C1) | 1 | |
| 44-5416 | BRUSH (set of 4) | 1 | ||
| 77-1302 | BEARING (brush end) | 1 | ||
| 77-1305 | BEARING (opposite end) | 1 | ||
| 13 | 77-2589 | COUPLING | 2 | |
| 14 | 77-1520 | SHAFT | 2 | |
| 15 | 98-2841 | HOUSING - blower (roadside) | 1 | |
| 55-2977 | SCREW - housing | 3 | ||
| 55-1801 | NUT - jam | 3 | ||
| 55-3031 | SCREW | 5 | ||
| 55-3008 | WASHER - sealing | 5 | ||
| 55-4560 | NUT (hexstop) | 5 | ||
| 55-2001 | FLATWASHER | 5 | ||
| 16 | 98-2699 | MOUNT - motor | 1 | |
| 55-2963 | SCREW - mount to frame | 8 | ||
| 55-5032 | NUT - captive | 8 | ||
| 55-2958 | FLATWASHER | 8 | ||
| 55-2959 | LOCKWASHER | 8 | ||
| 55-5691 | INSERT | 1 | ||
| 17 | 99-4647 | CUP - cable tie | 2 | |
| 55-4954 | NUT (hexstop) | 2 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 99-8246 | TAPE - tedlar | A/R | ||
| 18 | 99-7864 | BRACKET - bearing | 2 | |
| 19 | 77-1807 | BEARING - flange | 2 | |
| 55-3089 | SCREW - bearing | 4 | ||
| 55-2958 | FLATWASHER | 8 | ||
| 55-4954 | LOCKNUT | 4 | ||
| 20 | 99-8335 | NUTSTRIP - motor | 2 | |
| 55-3035 | RIVET - strip | 2 | ||
| 21 | 99-9316 | PLATE - blower housing cover | 2 | |
| 55-4546 | SCREW - plate | 10 | ||
| 55-4953 | LOCKNUT | 1 | ||
| 22 | 98-2842 | HOUSING - blower (curbside) | 1 | |
| 55-2977 | SCREW - housing | 3 | ||
| 55-1801 | NUT - jam | 3 | ||
| 55-3031 | SCREW | 5 | ||
| 55-3008 | WASHER - sealing | 5 | ||
| 55-4560 | NUT (hexstop) | 5 | ||
| 55-2001 | FLATWASHER | 5 | ||
| 23 | 77-1484 | WHEEL - blower (ccw, curbside) | 1 | |
| 24 | 77-1834 | RING - inlet | 2 | |
| 25 | 77-1483 | WHEEL - blower (cw, roadside) | 1 | |
| 26 | 99-7245 | STRIP - sealing (manus, 2 wide x 1/8 thk) | A/R |
