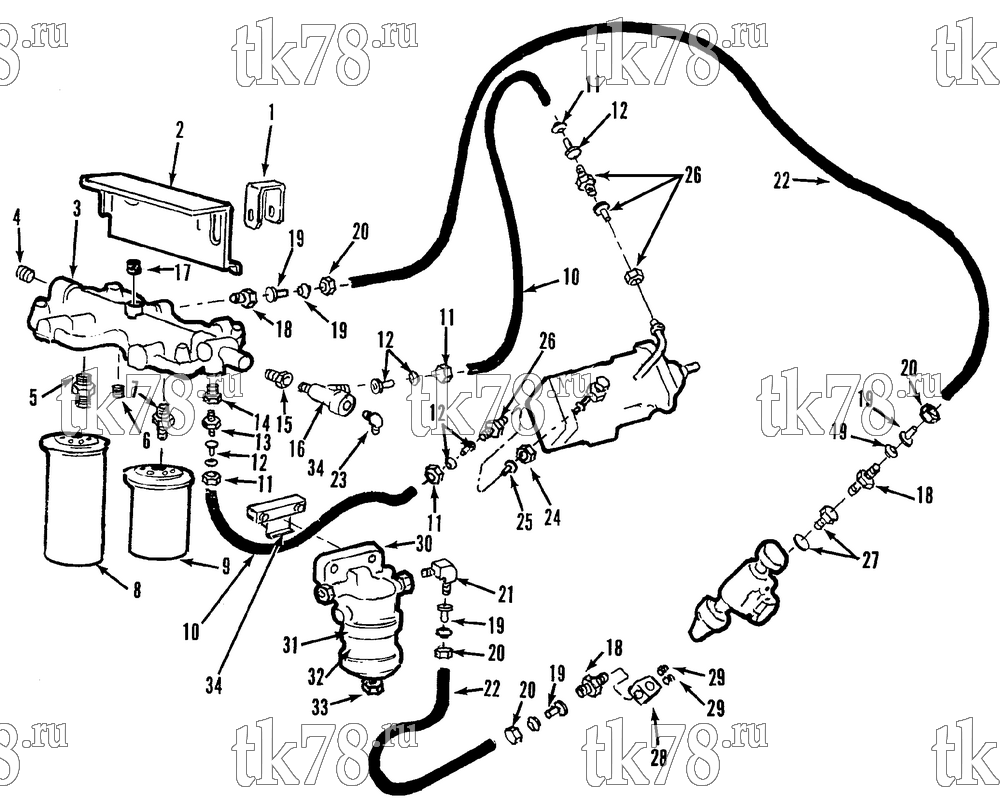

Установкa Thermo King схема FUEL FILTERS & HOSES – 75B1
Обновление от: 6/3/97
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 99-9267 | BRACKET | 1 | |
| 2 | 99-9268 | BRACKET - filter | 1 | |
| 55-2979 | SCREW | 5 | ||
| 55-2086 | FLATWASHER | 5 | ||
| 55-4953 | NUT | 5 | ||
| 55-5022 | SCREW | 2 | ||
| 3 | 11-6528 | BRACKET | 1 | |
| 55-3462 | SCREW | 4 | ||
|
20-55-3462 | Болт | 600 ₽ |
|
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 4 | ||
| 4 | 55-193 | PLUG | 1 | |
| 5 | 55-3168 | ADAPTER | 1 | |
| 6 | 55-1004 | PLUG - pipe | 1 | |
| 7 | 55-3403 | ADAPTER | 1 | |
| 8 | 11-9102 | FILTER - fuel (primary, EMI) | 1 | |
| 9 | 11-9103 | FILTER - fuel (secondary, EMI) | 1 | |
| 10 | 11-4367 | HOSE (1/4 od x 35 ft lg) | A/R | |
| 11 | 11-4841 | NUT (1/4) | 4 | |
| 12 | 10-243 | KIT - sleeve & eyelet (1/4) | 4 | |
| 13 | 11-4370 | CONNECTOR - hose fitting (1/4) | 1 | |
| 14 | 55-5023 | BUSHING | 1 | |
| 15 | 55-4799 | BUSHING | 1 | |
| 16 | 11-5321 | TEE | 1 | |
| 17 | 55-433 | PLUG | 1 | |
| 18 | 55-4515 | FITTING - hose | 3 | |
| 19 | 10-242 | KIT - sleeve & eyelet (3/8) | 4 | |
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 20 | 11-4941 | NUT - hose (3/8) | 4 | |
| 21 | 11-4380 | ELBOW | 1 | |
|
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 22 | 11-4367 | HOSE (1/4 od x 35 ft lg) | A/R | |
| 23 | 11-4380 | ELBOW | 1 | |
|
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 24 | Not Used | |||
| 25 | Not Used | |||
| 26 | 11-6496 | FITTING (5/16) | 1 | |
| 27 | 11-4381 | ADAPTER | 2 | |
| 55-1922 | WASHER | 2 | ||
|
10-55-1922 | Уплотнтель WASHER, PIPE JOINT | 690 ₽ |
|
| 28 | 11-5542 | BLOCK - fuel | 1 | |
| 29 | 55-433 | PLUG | 1 | |
| 30 | 11-4930 | FILTER (see 119C11) | 1 | |
| 31 | 11-4976 | RING - sealing | 1 | |
| 32 | 11-4975 | BOWL - glass | 1 | |
| 11-4977 | RING - sealing | 2 | ||
| 33 | 11-4978 | SCREW - drain | 1 | |
| 55-3089 | SCREW | 2 | ||
| 55-4954 | NUT | 2 | ||
| 34 | 99-9269 | BRACKET - sediment bowl | 1 | |
| 55-5424 | SCREW | 2 | ||
| 55-2959 | LOCKWASHER | 2 |
