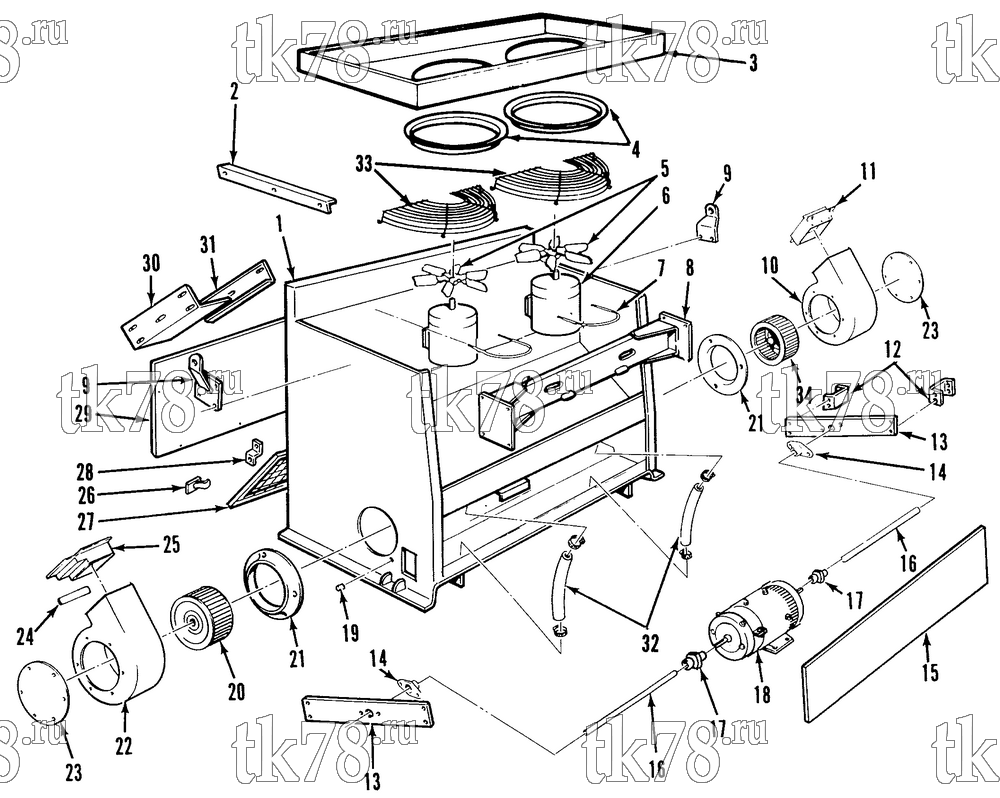

Установкa Thermo King схема STRUCTURAL COMPONENTS - MOTORS & FANS – 74C13
Обновление от: 1/17/02
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-2676 | FRAME - assembly | 1 | |
| 55-3059 | NUT - captive | 6 | ||
| 2 | 99-7330 | ANGLE - coil support | 2 | |
| 55-2969 | SCREW - angle | 8 | ||
| 55-2958 | FLATWASHER | 8 | ||
| 55-4954 | LOCKNUT | 8 | ||
| 3 | 98-2537 | PLENUM | 1 | |
| 99-6141 | NAMEPLATE - Caution Fan | 4 | ||
| 55-1587 | SCREW - plenum | 11 | ||
| 55-2086 | FLATWASHER | 11 | ||
| 55-4953 | LOCKNUT | 11 | ||
| 4 | 98-2357 | ORIFICE - condenser fan | 2 | |
| 55-1587 | SCREW - orifice | 12 | ||
| 55-3045 | WASHER - dome | 12 | ||
| 55-3059 | NUT - captive | 12 | ||
| 5 | 78-542 | FAN - condenser | 2 | |
| 55-3089 | SCREW - fan to shaft | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 6 | 104-655 | MOTOR - condenser fan | 2 | |
| 44-6004 | RESISTOR (15 ohm, 25W) | 2 | ||
| 99-9084 | NAMEPLATE - arrow | 2 | ||
| 99-6861 | NUTSTRIP - motor | 4 | ||
| 55-3035 | RIVET - strip | 8 | ||
| 55-2683 | SCREW - motor | 8 | ||
| 7 | 99-6862 | U-BOLT - motor | 2 | |
| 55-4953 | LOCKNUT | 4 | ||
| 8 | 98-2538 | BRACKET - motor | 1 | |
| 55-2969 | SCREW - bracket | 8 | ||
| 55-4931 | WASHER - special | 4 | ||
| 55-4954 | LOCKNUT | 8 | ||
| 9 | 91-7707 | BRACKET - lifting | 2 | |
| 10 | 98-2539 | HOUSING - blower (right) | 1 | |
| 99-7331 | INSULATOR - housing (inside) | 1 | ||
| 99-6865 | INSULATOR - housing (outside) | 1 | ||
| 99-7332 | INSULATOR - housing (peripheral) | 1 | ||
| 11 | 98-2541 | ADAPTER - air outlet | 1 | |
| 55-3035 | RIVET - adapter | 4 | ||
| 55-2979 | SCREW - housing | 3 | ||
| 55-4953 | LOCKNUT | 3 | ||
| 12 | 99-7333 | CHANNEL - standoff (bearing plate) | 4 | |
| 55-2957 | SCREW - channel | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | LOCKNUT | 8 | ||
| 13 | 99-7334 | PLATE - bearing | 2 | |
| 55-1587 | SCREW - plate | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | LOCKNUT | 8 | ||
| 14 | 77-1221 | BEARING - flange | 2 | |
| 55-2961 | SCREW - bearing | 4 | ||
| 55-2641 | FLATWASHER | 4 | ||
| 55-4955 | NUT | 4 | ||
| 15 | 98-2542 | PANEL - access | 1 | |
| 99-7335 | INSULATOR - panel | 1 | ||
| 99-7336 | STRIP - neoprene (0.12 x 0.8 x 50 ft) | A/R | ||
| 99-5966 | STRIP - gasket (vertical, 50 ft) | A/R | ||
| 55-3018 | SCREW - panel | 12 | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-2086 | FLATWASHER | 12 | ||
| 16 | 77-1473 | SHAFT - blower | 2 | |
| 17 | 77-2589 | COUPLING - flexible | 2 | |
| 18 | 104-656 | MOTOR - evaporator blower (see 76G7) | 1 | |
| 44-6053 | RESISTOR (5 ohm, 50W) | 1 | ||
| 55-6154 | SCREW - resistor (5.0 in lg) | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 55-2965 | NUT | 1 | ||
| 99-9084 | NAMEPLATE - arrow | 1 | ||
| 99-6871 | NUTSTRIP - motor | 2 | ||
| 55-3035 | RIVET - strip | 4 | ||
| 55-2969 | SCREW - motor | 4 | ||
| 55-4727 | WASHER - special | 4 | ||
| 55-2959 | LOCKWASHER | 4 | ||
| 19 | 99-6872 | SPACER - blower housing | 6 | |
| 20 | 77-1484 | WHEEL - blower (ccw, roadside) | 1 | |
| 21 | 77-1834 | RING - inlet | 2 | |
| 55-5130 | RIVET - ring | 10 | ||
| 22 | 98-2540 | HOUSING - blower (left) | 1 | |
| 99-7337 | INSULATOR - housing (inside) | 1 | ||
| 99-6874 | INSULATOR - housing (outside) | 1 | ||
| 99-7332 | INSULATOR - housing (peripheral) | 1 | ||
| 55-2979 | SCREW - housing | 3 | ||
| 55-4953 | LOCKNUT | 3 | ||
| 23 | 99-9316 | PLATE - blower housing cover | 2 | |
| 99-6876 | INSULATOR - cover | 2 | ||
| 55-3555 | SCREW - cover | 10 | ||
| 24 | 99-6867 | SPACER - adapter | 1 | |
| 25 | 98-2541 | ADAPTER - air outlet | 1 | |
| 55-3035 | RIVET - adapter | 4 | ||
| 26 | 55-4422 | FASTENER - snap (filter) | 2 | |
| 55-2995 | SCREW - fastener | 2 | ||
| 55-4508 | LOCKNUT | 2 | ||
| 27 | 91-6292 | FILTER - air | 1 | |
| 28 | 99-7804 | BRACKET - expansion valve | 1 | |
| 55-5211 | U-BOLT - expansion valve | 1 | ||
| 55-4560 | LOCKNUT | 2 | ||
| 29 | 98-2543 | PANEL - front | 1 | |
| 55-3018 | SCREW - panel | 13 | ||
|
|
20-55-3018 | Болт | 540 ₽ |
|
| 99-5966 | STRIP - gasket (panel, 25 ft) | A/R | ||
| 99-2789 | NAMEPLATE - TK Logo | 1 | ||
| 30 | 99-7338 | BRACKET - coil (left) | 1 | |
| 31 | 99-7339 | BRACKET - coil (right) | 1 | |
| 55-3048 | SCREW - bracket | 10 | ||
| 55-4955 | LOCKNUT | 10 | ||
| 32 | 98-780 | HOSE - drain (25 ft) | A/R | |
| 55-2684 | CLAMP - hose | 4 | ||
| 66-1273 | VALVE - check (hose) | 2 | ||
| 33 | 98-3133 | GUARD - fan | 2 | |
| 34 | 77-1483 | WHEEL - blower (cw, curbside) | 1 |
