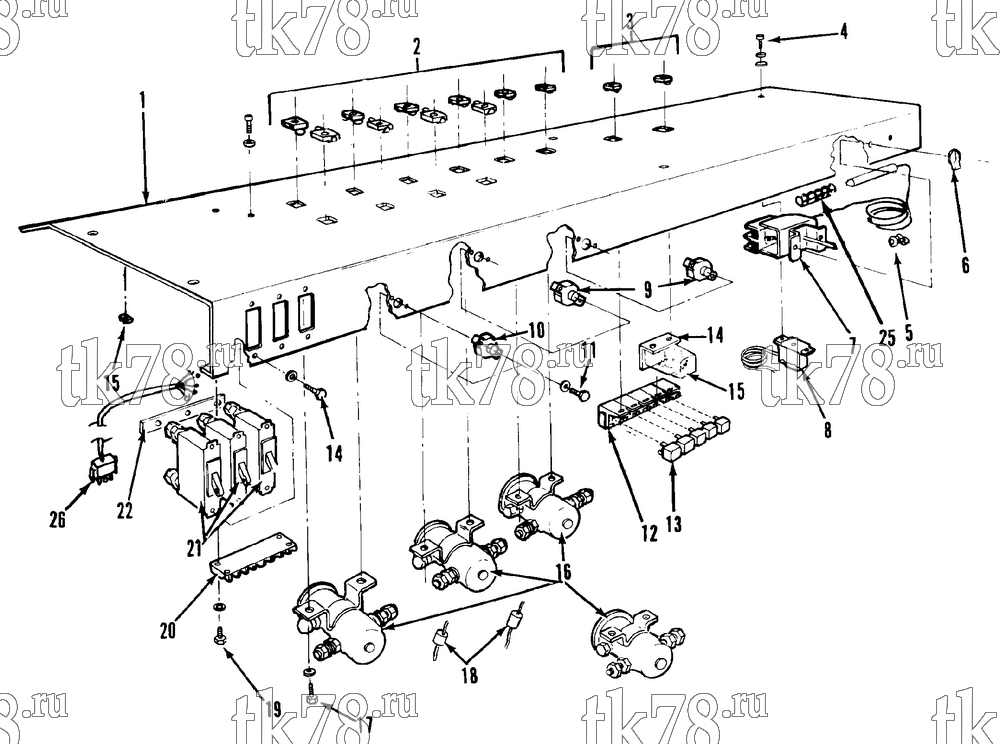

Установкa Thermo King схема CONTROL PANEL ASSEMBLY – 74B13
Обновление от: 3/24/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-2670 | PANEL - only | 1 | |
| 99-7805 | NAMEPLATE - switch panel | 1 | ||
| 2 | 55-3085 | NUT - captive (1/4-20) | 8 | |
| 3 | 55-3493 | NUT - captive (10-32) | 2 | |
| 4 | 55-3183 | SCREW - thermostat | 2 | |
| 55-3233 | LOCKWASHER | 2 | ||
| 55-1266 | FLATWASHER | 2 | ||
| 5 | 55-547 | CLAMP - thermo bulb | 2 | |
| 55-3027 | SCREW - clamp | 3 | ||
| 55-2964 | LOCKWASHER | 3 | ||
| 55-2001 | FLATWASHER | 3 | ||
| 55-2965 | NUT | 3 | ||
| 6 | 44-1222 | KNOB - temperature control | 1 | |
| 7 | 44-6043 | THERMOSTAT - return air | 1 | |
| 55-3513 | SCREW - thermostat | 2 | ||
| 55-3014 | LOCKWASHER | 2 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 8 | 44-3961 | THERMOSTAT - antifreeze | 1 | |
| 9 | 44-7216 | BREAKER - circuit (10 amp) | 2 | |
| 10 | 44-7217 | BREAKER - circuit (15 amp) | 1 | |
| 11 | 55-3196 | SCREW - breaker | 6 | |
| 55-1511 | LOCKWASHER | 6 | ||
| 55-431 | FLATWASHER | 6 | ||
| 55-2752 | NUT | 6 | ||
| 12 | 44-5537 | SOCKET - relay | 5 | |
| 55-3027 | SCREW - socket | 10 | ||
| 55-2964 | LOCKWASHER | 10 | ||
| 55-2001 | FLATWASHER | 10 | ||
| 13 | 44-9112 | RELAY | 5 | |
| 14 | 55-3513 | SCREW - breaker | 6 | |
| 55-3014 | LOCKWASHER | 6 | ||
| 55-3013 | FLATWASHER | 6 | ||
| 15 | 99-3281 | MOUNT - cable tie | 5 | |
| 55-5130 | RIVET | 5 | ||
| 16 | 41-3987 | SOLENOID - fan | 4 | |
| 44-7285 | HARNESS - evaporator fan | 1 | ||
| 17 | 55-145 | SCREW - solenoid | 8 | |
| 55-419 | LOCKWASHER (internal thread) | 3 | ||
| 55-366 | LOCKWASHER | 5 | ||
| 55-411 | FLATWASHER | 8 | ||
| 18 | 44-6007 | DIODE | 3 | |
| 19 | 55-3684 | SCREW - terminal board | 2 | |
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 55-2990 | NUT | 2 | ||
| 20 | 44-5057 | BOARD - terminal | 1 | |
| 44-3800 | DIODE - assembly | 1 | ||
| 99-9546 | MARKSTRIP | 1 | ||
| 21 | 44-5494 | BREAKER - circuit (65 amp) | 3 | |
| 22 | 44-6044 | JUMPER - circuit breaker | 1 | |
| 23 | 55-3513 | SCREW - breaker | 1 | |
| 55-3014 | LOCKWASHER | 6 | ||
| 55-3013 | FLATWASHER | 6 | ||
| 24 | 99-3281 | MOUNT - cable tie | 5 | |
| 55-5130 | RIVET | 5 | ||
| 25 | 99-6851 | RETAINER - thermostat bulb | 1 | |
| 55-3357 | CLAMP - retainer | 2 | ||
| 55-3027 | SCREW - clamp | 2 | ||
| 26 | 44-7286 | HARNESS - control | 1 | |
| 44-7287 | CONNECTOR (12-pin) | 1 |
