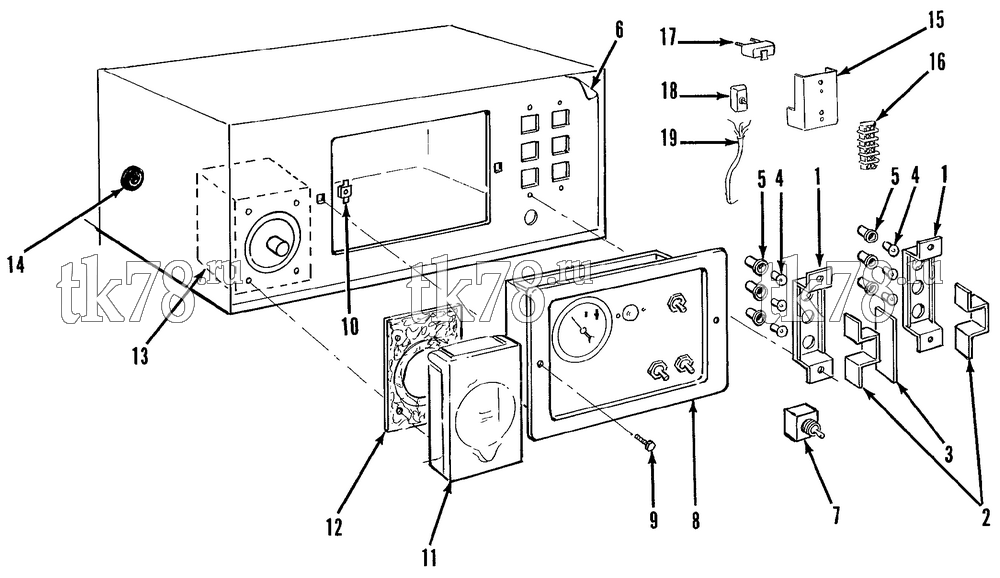

Установкa Thermo King схема CONTROL PANEL GROUP – 73A5
Обновление от: 7/10/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 99-7278 | BRACKET - light | 2 | |
| 55-3022 | SCREW - bracket | 4 | ||
| 55-4223 | NUT | 4 | ||
| 2 | 99-7374 | BAFFLE - light | 2 | |
| 3 | 99-7759 | SHIELD - light | 2 | |
| 4 | 44-3035 | BULB - light | 6 | |
| 5 | 41-6310 | SOCKET - indicator light | 6 | |
| 44-5654 | TERMINAL - bulb | 6 | ||
| 6 | 99-8707 | NAMEPLATE - switch & light (w/o hole for Cycle Sentry switch) | 1 | |
| 99-8810 | NAMEPLATE - switch & light (w/ Cycle Sentry) | 1 | ||
| 7 | 44-709 | SWITCH - Cycle Sentry | 1 | |
|
10-44-709 | Выключатель четырехполюсный | 5 130 ₽ |
|
| 44-6590 | DIODE - silicone rectifier | 1 | ||
| 8 | 45-252 | PANEL - switch | 1 | |
| 9 | 55-2977 | SCREW - switch panel | 2 | |
| 55-3028 | WASHER - sealing | 2 | ||
| 10 | 55-4966 | NUT - captive | 1 | |
| 11 | 99-1326 | COVER - thermostat | 1 | |
|
10-99-1326 | Крышка термостата | 8 600 ₽ |
|
| 12 | 33-977 | GASKET - cover | 1 | |
| 13 | 45-1564 | THERMOSTAT (Thermoguard) | 1 | |
| 55-5358 | SCREW - thermostat | 4 | ||
| 14 | 33-624 | GROMMET - harness | 1 | |
| 15 | 99-8809 | BRACKET - circuit breaker | 1 | |
| 99-8729 | NAMEPLATE - Auxiliary Unit | 1 | ||
| 55-736 | SCREW - bracket | 2 | ||
| 55-1511 | LOCKWASHER | 2 | ||
| 16 | 44-4617 | BOARD - terminal | 1 | |
| 44-6737 | MARKSTRIP | 1 | ||
| 55-735 | SCREW - terminal board | 2 | ||
| 55-3233 | LOCKWASHER | 2 | ||
| 17 | 44-6138 | BREAKER - circuit (30 amp) | 1 | |
| 18 | 44-6726 | BREAKER - circuit (3.9 amp, manual reset) | 1 | |
| 19 | 44-6834 | HARNESS | 1 |
