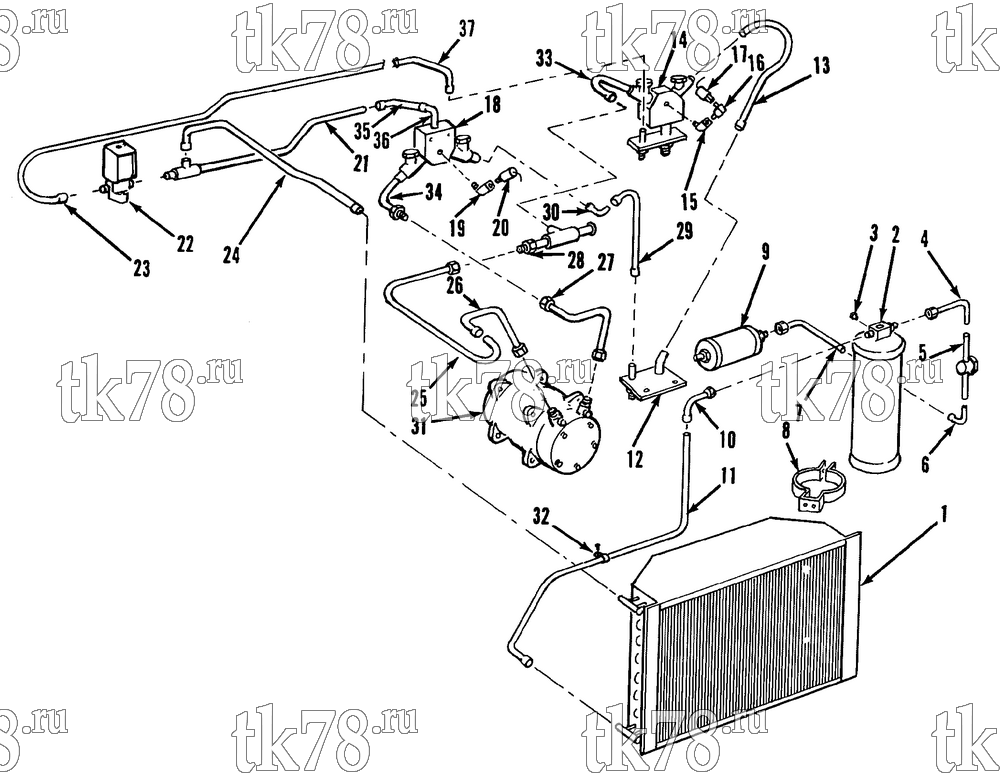

Установкa Thermo King схема REFRIGERATION COMPONENTS (STB-II 20) – 72E7
Обновление от: 12/30/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-713 | COIL - condenser | 1 | |
| 55-4974 | NUT - caged | 8 | ||
| 55-145 | SCREW - coil | 4 | ||
| 55-411 | FLATWASHER | 4 | ||
| 55-419 | LOCKWASHER | 4 | ||
| 2 | 67-764 | TANK - receiver | 1 | |
| 3 | 55-5252 | PLUG - fuse | 1 | |
| 4 | 66-4151 | TUBE - indicator to tank | 1 | |
| 5 | 66-1296 | INDICATOR - liquid | 1 | |
| 6 | 66-4152 | TUBE - liquid indicator to dehydrator | 1 | |
| 7 | 66-4145 | TUBE - liquid indicator to dehydrator | 1 | |
| 8 | 55-2141 | HANGER - receiver tank | 1 | |
| 55-145 | SCREW - hanger | 1 | ||
| 55-411 | FLATWASHER | 2 | ||
| 55-4118 | NUT | 1 | ||
| 55-5664 | SCREW - tank | 1 | ||
| 55-4118 | NUT | 1 | ||
| 9 | 66-4729 | DEHYDRATOR | 1 | |
|
10-66-4729 | Дегидратор, SB-I/II/III | 3 890 ₽ |
|
| 10 | 66-4153 | TUBE - receiver tank | 1 | |
| 11 | 66-4131 | TUBE - condenser to receiver tank | 1 | |
| 55-549 | CLAMP - tube | 2 | ||
| 55-165 | SCREW - clamp | 2 | ||
| 55-4118 | NUT | 2 | ||
| 12 | 99-8677 | PLATE - adapter | 1 | |
| 13 | 66-4388 | TUBE - suction | 1 | |
| 14 | 66-4389 | MANIFOLD - suction (incl 13 & 33) | 1 | |
| 66-3788 | BLOCK - connector | 2 | ||
| 66-3789 | VALVE - check | 2 | ||
| 60-166 | KIT - check valve repair | 1 | ||
| 55-5677 | SCREW - manifold | 2 | ||
| 15 | 55-1653 | ELBOW | 1 | |
| 16 | 55-4489 | ELBOW | 1 | |
| 17 | 44-6132 | SWITCH - lpco | 1 | |
| 18 | 66-4052 | MANIFOLD - discharge (incl 29, 34, 35, 36) | 1 | |
| 66-3655 | VALVE - check | 2 | ||
| 60-158 | KIT - check valve repair (see 9G12) | 2 | ||
| 55-5677 | SCREW - manifold | 2 | ||
| 55-4118 | NUT | 2 | ||
| 55-411 | FLATWASHER | 2 | ||
| 19 | 55-1653 | ELBOW | 1 | |
| 20 | 44-5305 | SWITCH - hpco | 1 | |
|
10-44-5305 | Выключатель высокого давления (R12) | 3 950 ₽ |
|
| 21 | 66-4144 | TUBE & TEE - discharge | 1 | |
| 22 | 66-3693 | VALVE - solenoid (see 64C6) | 1 | |
| 66-4302 | VALVE - solenoid liquid/refrigerant (see 64C6) | 1 | ||
| 44-6264 | CONNECTOR - electric | 1 | ||
| 33-285 | GROMMET | 1 | ||
| 99-261 | CONNECTOR - pressure regulator valve | 1 | ||
| 23 | 66-4143 | TUBE | 1 | |
| 24 | 66-4459 | TUBE - tee to condenser | 1 | |
| 25 | 66-4147 | TUBE - valve pressure regulator compressor | 1 | |
| 26 | 66-4141 | TUBE - valve pressure regulator compressor | 1 | |
| 27 | 66-4140 | TUBE - compressor discharge block | 1 | |
| 28 | 66-4146 | VALVE - pressure regulating | 1 | |
| 29 | 66-4148 | TUBE - discharge | 1 | |
| 30 | 66-4012 | ELBOW | 1 | |
| 66-4456 | TUBE - elbow to manifold | 1 | ||
| 31 | 102-349 | COMPRESSOR (see 71A10) | 1 | |
| 32 | 55-549 | CLAMP | 1 | |
| 55-165 | SCREW - clamp | 1 | ||
| 55-4118 | NUT | 1 | ||
| 55-1610 | CONNECTOR - liquid line | 1 | ||
| 33 | 66-4159 | TUBE - suction | 1 | |
| 34 | 66-4160 | TUBE - discharge | 1 | |
| 55-1610 | ADAPTER | 1 | ||
| 35 | 55-5690 | ELBOW | 1 | |
| 36 | 55-3441 | ELBOW | 1 | |
| 55-1610 | CONNECTOR - liquid line | 1 | ||
| 55-4274 | ADAPTER | 1 | ||
| 55-5293 | BUSHING (7/8 ftg, 5/8 sld) | 1 | ||
| 37 | 66-4457 | TUBE - defrost | 1 | |
| 38 | 99-8937 | PLATE - adapter | 1 | |
| 55-1610 | ADAPTER - defrost | 1 | ||
| 55-4274 | ADAPTER - suction | 1 | ||
| 66-4458 | TUBE - adapter to manifold | 1 | ||
| 55-5293 | BUSHING - suction adapter | 1 |
