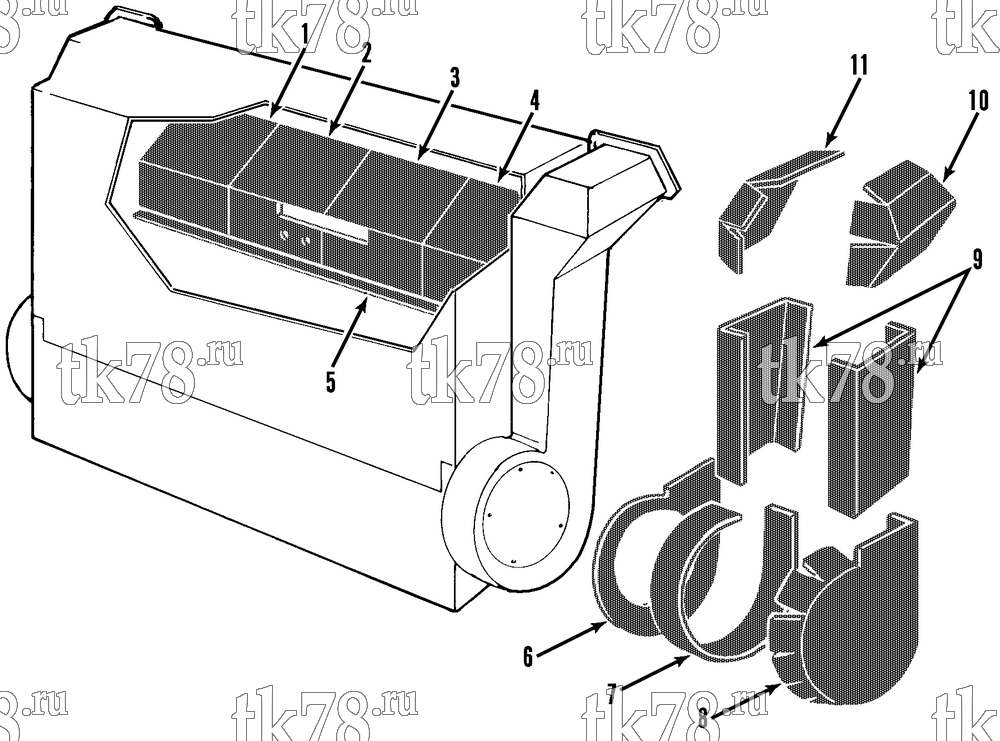

Установкa Thermo King схема INSULATION (T6-M2) – 72D1
Обновление от: 3/17/00
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 99-7853 | INSULATION - air return (roadside) | 1 | |
| 2 | 99-7851 | INSULATION - air return (roadside, center) | 1 | |
| 3 | 99-7850 | INSULATION - air return (curbside, center) | 1 | |
| 4 | 99-7852 | INSULATION - air return (curbside) | 1 | |
| 5 | 99-7925 | INSULATION - air barrier | 1 | |
| 99-8434 | TAPE - sealant | A/R | ||
| 6 | 99-7867 | INSULATION - inside housing (curbside) | 1 | |
| 99-7870 | INSULATION - inside housing (roadside) | 1 | ||
| 7 | 99-8327 | INSULATION - housing | 2 | |
| 8 | 99-7926 | INSULATION - outside housing (curbside) | 1 | |
| 99-7869 | INSULATION - inside housing (roadside) | 1 | ||
| 9 | 99-8328 | INSULATION - vertical duct | 4 | |
| 10 | 99-8329 | INSULATION - transition duct (outside, curbside) | 1 | |
| 99-8330 | INSULATION - transition duct (outside, roadside) | 1 | ||
| 11 | 99-8331 | INSULATION - transition duct (inside, roadside) | 1 | |
| 99-8246 | TAPE - tedlar (3 in wide x 25 ft) | A/R |
