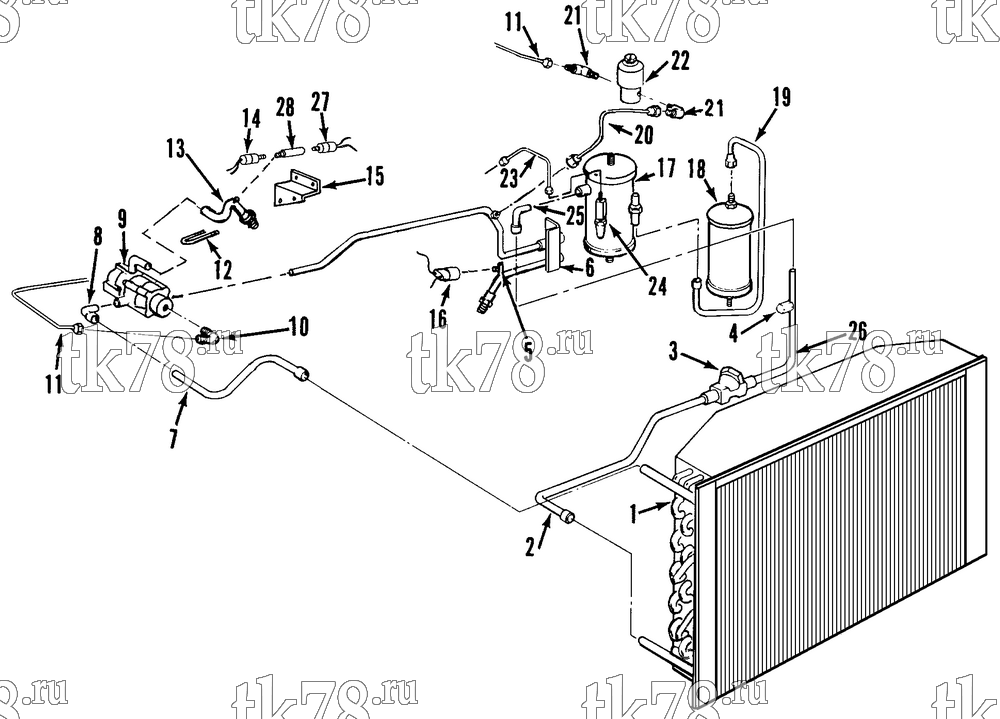

Установкa Thermo King схема REFRIGERATION COMPONENTS (CB-II 10) – 72B14
Обновление от: 12/9/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-671 | COIL - condenser | 1 | |
| 55-3059 | NUT - captive | 6 | ||
| 55-538 | SCREW - coil | 6 | ||
| 55-411 | FLATWASHER | 6 | ||
| 55-419 | LOCKWASHER | 6 | ||
| 2 | 66-3798 | TUBE - coil to receiver | 1 | |
| 3 | 66-3655 | VALVE - check | 1 | |
| 4 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 5 | 55-1117 | TEE | 1 | |
| 6 | 66-4093 | PLATE & TUBE | 1 | |
| 55-165 | SCREW - plate | 2 | ||
| 55-411 | FLATWASHER | 2 | ||
| 55-4118 | NUT | 2 | ||
| 7 | 66-3796 | TUBE - 3-way to coil | 1 | |
| 8 | 55-3441 | ELBOW | 1 | |
| 9 | 66-3635 | VALVE - 3-way (see 59G11) | 1 | |
| 55-214 | SCREW - valve | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 55-2182 | BUSHING | 1 | ||
| 10 | 55-308 | ELBOW | 1 | |
| 11 | 66-3800 | TUBE - 3-way to pilot solenoid | 1 | |
| 12 | 99-661 | U-BOLT - discharge tube | 1 | |
| 55-5292 | NUT - u-bolt | 2 | ||
| 55-431 | FLATWASHER | 2 | ||
| 13 | 66-4094 | TUBE - discharge | 1 | |
| 14 | 44-5305 | SWITCH - hpco | 1 | |
|
10-44-5305 | Выключатель высокого давления (R12) | 3 950 ₽ |
|
| 15 | 99-7727 | BRACKET - discharge tube | 1 | |
| 16 | 44-6132 | SWITCH - lpco | 1 | |
| 17 | 67-1189 | TANK - receiver | 1 | |
|
10-67-1189 | Бак фреона, KD/MD/RD/TD/URD | 16 670 ₽ |
|
| 66-8339 | INDICATOR | 1 | ||
| 66-9257 | BALL | 1 | ||
| 33-1222 | O-RING | 1 | ||
| 55-289 | NUT - receiver | 2 | ||
| 55-402 | FLATWASHER | 2 | ||
| 55-375 | LOCKWASHER | 2 | ||
| 18 | 66-4729 | DEHYDRATOR | 1 | |
|
10-66-4729 | Дегидратор, SB-I/II/III | 3 890 ₽ |
|
| 19 | 66-3799 | TUBE - receiver to dehydrator | 1 | |
| 20 | 66-4092 | TUBE - manifold to solenoid | 1 | |
| 21 | 55-4489 | ELBOW - valve | 2 | |
| 22 | 66-2009 | VALVE - pilot solenoid (12V) | 1 | |
|
10-66-2009 | Управляющий клапан, KD/MD/TD/RD-II / SB-I/II/III | 18 500 ₽ |
|
| 44-3803 | COIL - valve (3/8 bore) | 1 | ||
| 41-1525 | COIL - valve (7/16 bore) | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 66-2088 | VALVE - pilot solenoid (24V) | 1 | ||
| 41-325 | COIL - valve (3/8 bore) | 1 | ||
| 44-6158 | COIL - valve (7/16 bore) | 1 | ||
| 55-1339 | SCREW - valve | 2 | ||
| 55-406 | FLATWASHER | 2 | ||
| 55-414 | LOCKWASHER | 2 | ||
| 55-8786 | NUT - valve | 1 | ||
| 23 | 66-3802 | TUBE - hot gas to receiver | 1 | |
| 24 | 66-5501 | VALVE - check | 1 | |
| 55-308 | ELBOW - check valve to receiver | 1 | ||
| 55-5422 | ELBOW - check valve to receiver | 1 | ||
| 25 | 55-2183 | ELBOW - liquid line to receiver | 1 | |
| 26 | 66-4194 | TUBE - check valve to receiver | 1 | |
| 27 | 44-6865 | SWITCH - condenser fan | 1 | |
| 28 | 55-1654 | TEE | 1 |
