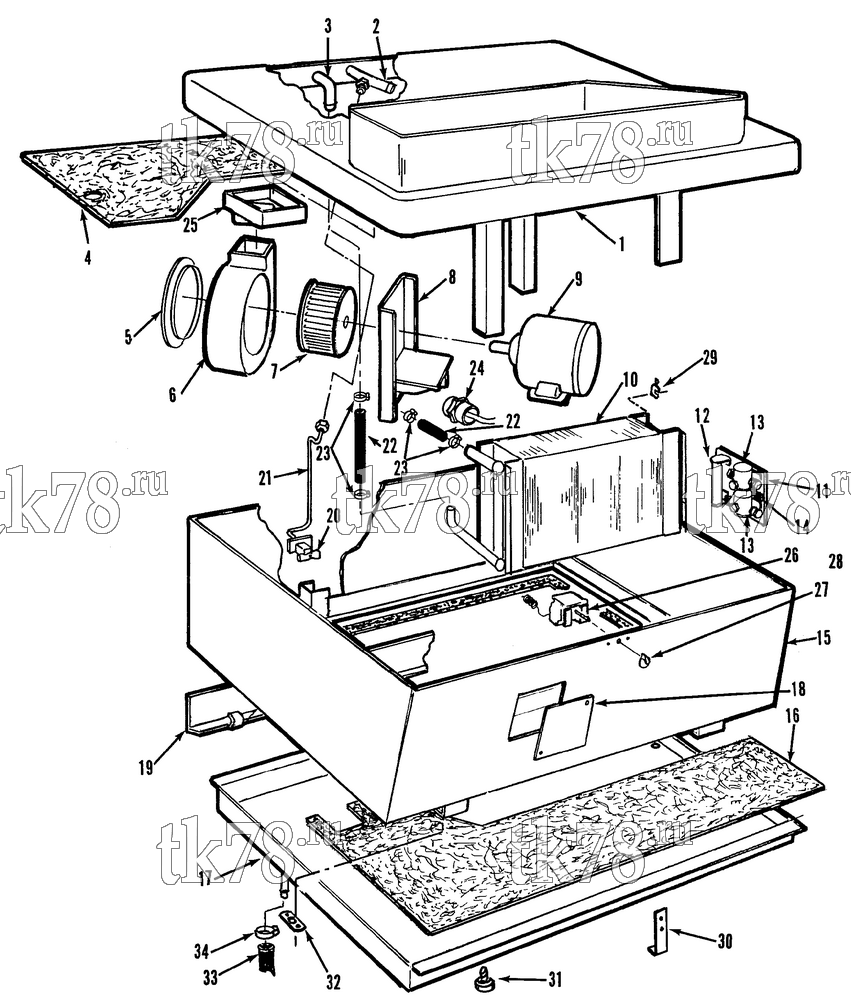

Установкa Thermo King схема HEATER ASSEMBLY – 72B1
Обновление от: 5/29/01
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-2927 | FRAME - heater | 1 | |
| 2 | 66-4403 | TUBE - outlet (complete) | 1 | |
| 3 | 66-4405 | TUBE - inlet (complete) | 1 | |
| 99-7876 | NAMEPLATE - Water Inlet | 1 | ||
| 33-1683 | GASKET - tube | 2 | ||
| 4 | 99-8792 | INSULATION - frame | 1 | |
| 5 | 77-1329 | FLANGE - inlet | 1 | |
| 6 | 98-2928 | HOUSING - blower | 1 | |
| 55-4286 | PLUG - button (1 dia) | 1 | ||
| 7 | 77-1327 | WHEEL - blower | 1 | |
| 8 | 99-8788 | MOUNT - motor | 1 | |
| 55-3834 | SCREW - mount | 4 | ||
| 55-2958 | FLATWASHER | 4 | ||
| 55-2959 | LOCKWASHER | 4 | ||
| 9 | 104-421 | MOTOR (24VDC, 1/2 hp) | 1 | |
| 44-6852 | BRUSH (set of 2) | 1 | ||
| 77-1628 | BEARING | 2 | ||
| 55-2969 | SCREW - motor | 4 | ||
| 55-4727 | WASHER - special | 4 | ||
| 55-2958 | FLATWASHER | 4 | ||
| 55-2954 | NUT (stop) | 4 | ||
| 10 | 67-767 | COIL - heater | 1 | |
| 55-1587 | SCREW - coil | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-2202 | LOCKWASHER | 6 | ||
| 55-5546 | DRAIN COCK | 1 | ||
| 11 | 99-8795 | PANEL - solenoid | 1 | |
| 99-2477 | NAMEPLATE - 24 Volt | 1 | ||
| 55-2957 | SCREW - panel | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-3059 | NUT - captive | 4 | ||
| 12 | 44-6825 | RESISTOR (0.5 ohm, 80W) | 1 | |
| 55-2995 | SCREW - resistor | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 13 | 41-3987 | SOLENOID | 2 | |
| 44-6507 | JUMPER | 1 | ||
| 44-6007 | DIODE - solenoid | 2 | ||
| 55-1587 | SCREW - solenoid | 4 | ||
| 55-2993 | LOCKWASHER (internal tooth) | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER - spring | 4 | ||
| 14 | 44-4341 | BOARD - terminal | 1 | |
| 99-8796 | MARKSTRIP | 1 | ||
| 55-3511 | SCREW - terminal board | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 15 | 98-2929 | COVER - heater | 1 | |
| 16 | 99-8791 | INSULATION - cover | 1 | |
| 17 | 98-2930 | COVER - access (lower) | 1 | |
| 18 | 99-8793 | COVER - access (motor) | 1 | |
| 33-1684 | GASKET - cover | 1 | ||
| 55-1587 | SCREW - cover | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 19 | 99-8789 | BRACKET - hinge | 1 | |
| 55-5639 | SCREW - bracket | 5 | ||
| 55-2001 | FLATWASHER | 5 | ||
| 20 | 55-5546 | DRAIN COCK | 1 | |
| 21 | 66-4404 | TUBE - bleed line | 1 | |
| 22 | 99-7318 | HOSE (3/4 id x 25 ft) | A/R | |
| 23 | 55-5400 | CLAMP - hose | 4 | |
| 24 | 44-6841 | HARNESS - main | 1 | |
| 44-6840 | RECEPTACLE (9-pin, 30 series) | 1 | ||
| 44-6839 | PLUG - sealing (4 gauge) | 1 | ||
| 44-6836 | PLUG - sealing (12 & 16 gauge) | 2 | ||
| 44-6851 | PIN (male, 12 gauge) | 4 | ||
| 305-402 | PIN (male, 8 gauge) | 2 | ||
| 25 | 99-8813 | DUCT & BLOCKOFF | 1 | |
| 26 | 44-6548 | THERMOSTAT | 1 | |
| 99-6851 | RETAINER - thermo bulb | 1 | ||
| 55-3357 | CLAMP - bulb | 2 | ||
| 99-8802 | NAMEPLATE - Temperature | 1 | ||
| 99-8787 | COVER - plate (thermo) | 1 | ||
| 27 | 44-1222 | KNOB - temperature control | 1 | |
| 28 | 99-8814 | STRIP - gasket | 1 | |
| 29 | 55-5634 | FASTENER - snap | 2 | |
| 30 | 99-8794 | CATCH - safety (secondary) | 1 | |
| 55-3027 | SCREW - safety latch | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2965 | NUT (hex) | 2 | ||
| 31 | 99-1006 | FASTENER - screw to cover | 2 | |
| 55-8919 | WASHER - split (plastic) | 2 | ||
| 32 | 55-2074 | NUT - speed | 2 | |
| 55-692 | WASHER - split (ss) | 2 | ||
| 33 | 99-8790 | TRAP - evaporator drain | 2 | |
| 34 | 55-5400 | CLAMP - boot | 2 |
