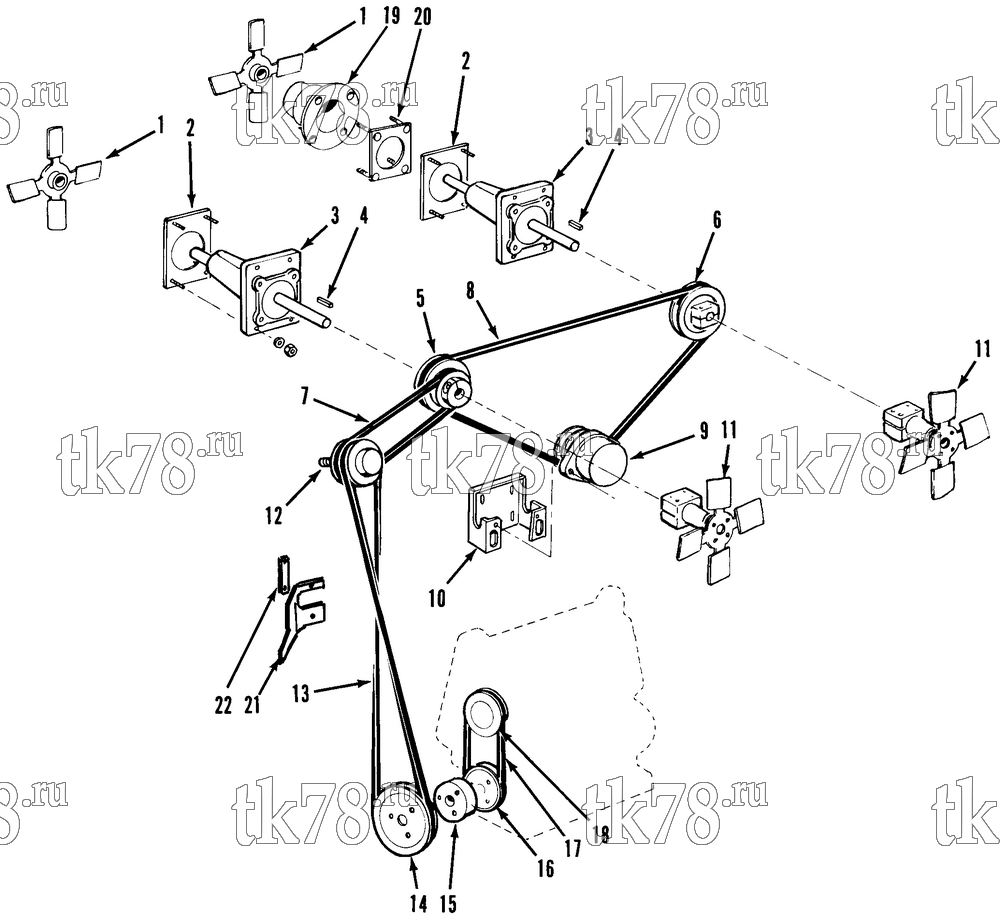

Установкa Thermo King схема FANS, BELTS & PULLEYS GROUP (LND PEG) – 71F6
Обновление от: 3/14/95
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-609 | FAN - evaporator | 2 | |
| 2 | 99-3261 | BOLTPLATE - fanshaft | 2 | |
| 55-5078 | NUT - fanshaft | 8 | ||
| 3 | 78-627 | FANSHAFT - assembly | 2 | |
| 4 | 55-457 | KEY - fanshaft | 4 | |
| 5 | 77-1611 | PULLEY - fan drive | 1 | |
| 55-139 | SCREW - hub | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 6 | 77-1611 | PULLEY - fan drive | 1 | |
| 77-1562 | HUB - fan | 1 | ||
| 55-141 | SCREW - pulley to hub | 4 | ||
| 55-153 | SCREW - hub to shaft | 2 | ||
| 55-790 | LOCKWASHER | 6 | ||
| 7 | 78-668 | BELT - idler to fanshaft | 1 | |
| 10-78-668 | Ремень водяной помпы, SB-III/SMX | 3 680 ₽ |
|
|
| PP-78-668 | Ремень водяной помпы, SB-III/SMX | 1 040 ₽ |
|
|
| 8 | 78-608 | BELT - fan & alternator | 1 | |
| 9 | 44-6266 | ALTERNATOR | 1 | |
|
10-44-6266 | Генератор 37A 12V | 32 740 ₽ |
|
| 77-1565 | PULLEY - alternator | 1 | ||
| 55-2042 | NUT - pulley | 1 | ||
| 55-4766 | LOCKWASHER | 1 | ||
| 55-1600 | KEY | 1 | ||
| 10 | 99-8189 | MOUNT - alternator | 1 | |
| 99-8188 | BOLTSTRIP | 2 | ||
| 55-2298 | WASHER - special | 4 | ||
| 55-5078 | NUT | 4 | ||
| 55-4794 | SCREW - alternator (1/2-13) | 1 | ||
| 55-2038 | FLATWASHER | 1 | ||
| 55-3686 | NUT | 1 | ||
| 55-2969 | SCREW - alternator (3/8-18) | 1 | ||
| 55-371 | FLATWASHER | 1 | ||
| 55-790 | LOCKWASHER | 1 | ||
| 11 | 78-605 | FAN & HUB - assembly | 2 | |
| 77-1563 | HUB - fan | 2 | ||
| 55-141 | SCREW - fan to hub | 4 | ||
| 55-790 | LOCKWASHER | 4 | ||
| 55-153 | SCREW - hub to shaft | 4 | ||
| 55-790 | LOCKWASHER | 4 | ||
| 55-371 | FLATWASHER | 4 | ||
| 12 | 77-1456 | PULLEY - idler (see 66E10) | 1 | |
| 55-287 | NUT - pulley | 1 | ||
| 55-365 | LOCKWASHER | 1 | ||
| 55-2038 | FLATWASHER | 1 | ||
| 13 | 78-669 | BELT - engine to idler | 1 | |
| 10-78-669 | Ремень двигатель - промежуточный ролик, LND 30 | 9 310 ₽ |
|
|
| 14 | 77-1566 | PULLEY - crankshaft | 1 | |
| 55-5419 | SCREW - pulley | 3 | ||
| 55-5411 | LOCKWASHER | 3 | ||
| 15 | 77-1569 | SPACER - pulley | 1 | |
| 16 | 77-1436 | PULLEY - crankshaft (see 67A6) | 1 | |
| 17 | 78-513 | BELT - water pump | 1 | |
| 18 | 77-1426 | PULLEY - water pump (see 63F1) | 1 | |
|
10-77-1426 | Шкив водяной помпы, Yanmar 374 / 388 / 395 / 482 / 486, SL/SLe | 6 670 ₽ |
|
| 19 | 99-7766 | SUPPORT - bearing | 2 | |
| 20 | 99-3269 | BOLTPLATE | 2 | |
| 55-5078 | NUT - support | 8 | ||
| 55-402 | FLATWASHER | 8 |
