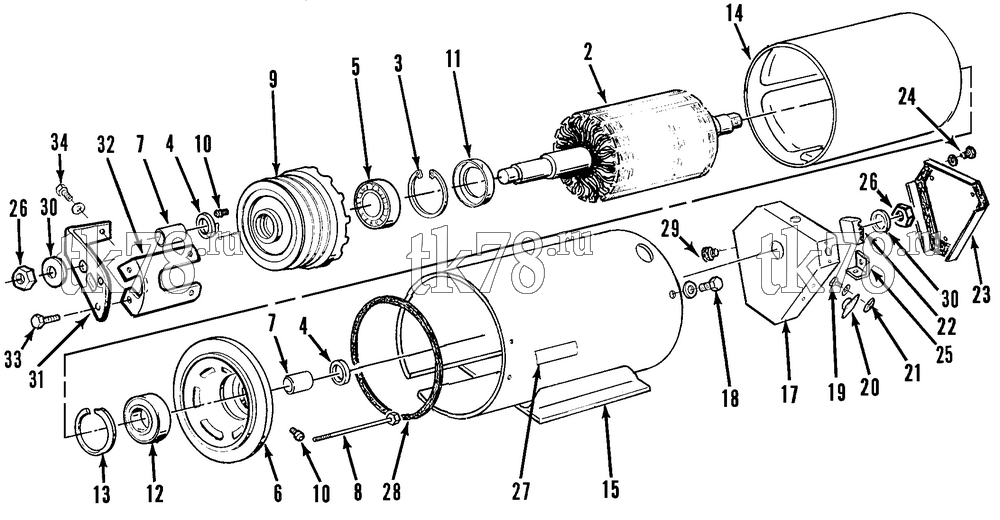

Установкa Thermo King схема ALTERNATOR ASSEMBLY (104-420) – 70E14
Обновление от: 5/6/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | N/A | ALTERNATOR (5 kW, see note) | 1 | |
| 2 | 45-1276 | ARMATURE | 1 | |
| 3 | 55-4394 | RING - retaining | 1 | |
| 4 | 33-594 | O-RING | 1 | |
| 5 | 77-1557 | BEARING - ball (one seal) | 1 | |
| 6 | 77-1615 | BELL - end (lead) | 1 | |
| 7 | 55-4021 | FITTING | 1 | |
| 8 | 55-5194 | SCREW | 2 | |
| 9 | 77-1616 | BELL - end (w/ pulley) | 1 | |
| 10 | 55-4393 | FITTING - grease | 1 | |
| 11 | 33-1615 | SEAL - oil & grease | 2 | |
| 12 | 77-1559 | BEARING - lead | 1 | |
| 13 | 55-4468 | FLATWASHER | 1 | |
| 14 | 99-8558 | YOKE - alternator (front) | 1 | |
| 99-8557 | YOKE - support | 1 | ||
| 15 | 99-9262 | HOUSING - alternator (outer) | 1 | |
| 16 | 55-5192 | SCREW | 3 | |
| 55-375 | LOCKWASHER | 3 | ||
| 16 | 55-1243 | WASHER | 3 | |
| 17 | 99-8853 | YOKE - armature (alternator, rear) | 1 | |
| 18 | 55-173 | SCREW | 3 | |
| 55-790 | LOCKWASHER | 3 | ||
| 55-1321 | WASHER - special | 3 | ||
| 55-2644 | NUT - jam | 3 | ||
| 19 | 55-4832 | SCREW - protector | 2 | |
| 55-406 | FLATWASHER | 2 | ||
| 20 | 44-6149 | PROTECTOR - motor | 1 | |
| 44-5791 | BRACKET - protector | 1 | ||
| 21 | 55-4473 | NUT (plastic) | 2 | |
| 22 | 44-5254 | BOARD - terminal | 1 | |
| 99-5328 | NAMEPLATE - Wire Number | 1 | ||
| 44-5253 | JUMPER | 1 | ||
| 55-4469 | SCREW - terminal board | 2 | ||
| 55-415 | LOCKWASHER | 2 | ||
| 23 | 99-6331 | COVER | 1 | |
| 24 | 55-1510 | SCREW - cover | 3 | |
| 55-1511 | LOCKWASHER | 3 | ||
| 25 | 99-5329 | BRACKET - cover | 3 | |
| 55-3493 | NUT - captive | 3 | ||
| 44-4162 | GRIP - cable | 1 | ||
| 55-2836 | LOCKNUT | 1 | ||
| 26 | 55-5193 | NUT | 2 | |
| 99-8684 | NAMEPLATE - torque | 2 | ||
| 27 | 55-5632 | WASHER - belleville | 1 | |
| 28 | 55-5581 | LOCKWASHER - alternator (front) | 1 | |
| 29 | 44-4162 | GRIP - cable | 1 | |
| 55-2836 | NUT | 1 | ||
| 30 | 55-5632 | WASHER - belleville | 2 | |
| 31 | 99-8558 | YOKE - alternator (front) | 1 | |
| 32 | 99-8557 | YOKE - support | 1 | |
| 33 | 55-5192 | SCREW | 2 | |
| 55-1243 | WASHER | 2 | ||
| 34 | 55-5192 | SCREW - yoke | 3 | |
| 55-375 | LOCKWASHER | 3 | ||
| 55-1243 | WASHER - special | 3 |
