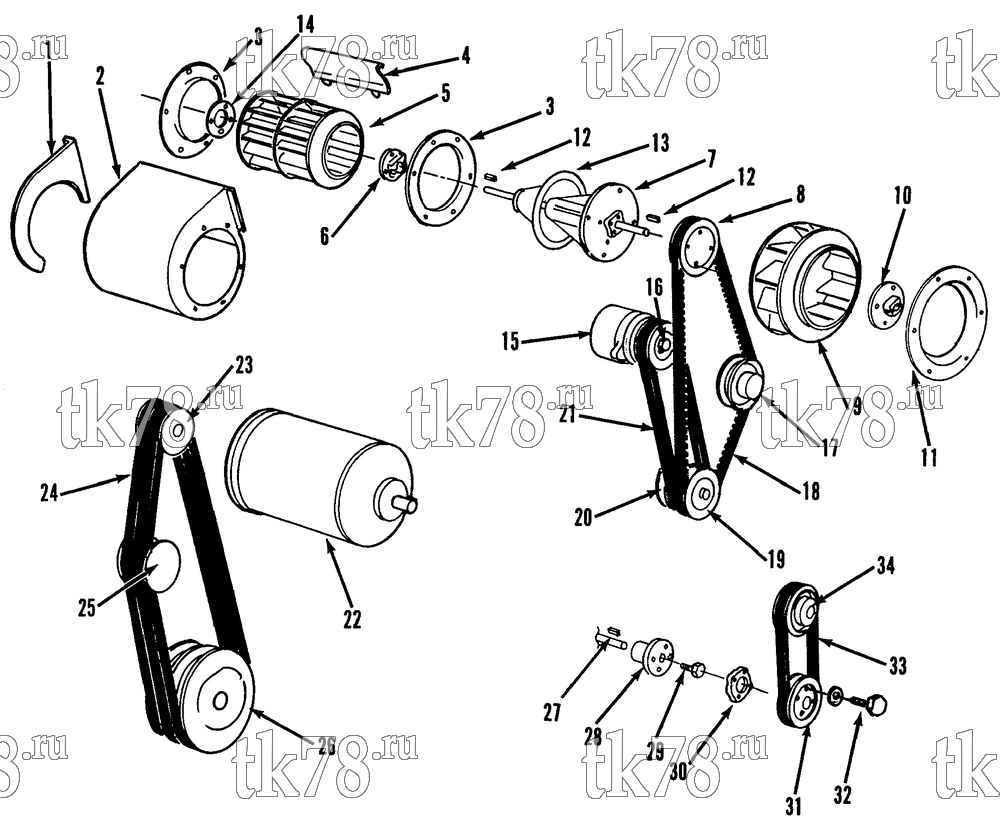

Установкa Thermo King схема FANS & BELTS GROUP (SB-II 50 di 2.2) – 70D4
Обновление от: 3/6/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-2737 | PANEL - housing (evaporator blower, top) | 1 | |
| 55-2977 | SCREW - panel | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 2 | 98-2738 | HOUSING - evaporator blower | 1 | |
| 3 | 90-409 | KIT - evaporator orifice (polypropylene) | 2 | |
| 55-4742 | LOCKWASHER - spl (0.266 in id) | 4 | ||
| 55-1587 | SCREW - orifice | 8 | ||
| 55-3059 | NUT - captive | 8 | ||
| 4 | 99-7962 | MEMBER - housing (evaporator blower) | 1 | |
| 5 | 78-742 | BLOWER - evaporator | 1 | |
| 6 | 77-2208 | HUB - blower | 1 | |
| 99-4353 | RING | 1 | ||
| 55-2969 | SCREW (5/16-18 x 1) | 4 | ||
| 55-2962 | SCREW (5/16-18 x 1-3/4) | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 7 | 78-741 | FANSHAFT - assembly (see 84E5) | 1 | |
| 78-693 | TRANSMISSION - two speed | 1 | ||
| 55-129 | SCREW - fanshaft | 6 | ||
| 55-375 | LOCKWASHER | 6 | ||
| 55-402 | FLATWASHER | 6 | ||
| 8 | 77-1842 | PULLEY - fan | 1 | |
| 9 | 78-595 | FAN - condenser | 1 | |
| 10 | 77-1592 | HUB - fan | 1 | |
| 55-153 | SCREW - hub | 2 | ||
| 55-371 | FLATWASHER | 2 | ||
| 55-172 | SCREW - fan | 4 | ||
| 55-790 | LOCKWASHER | 4 | ||
| 55-371 | FLATWASHER | 4 | ||
| 11 | 98-2804 | SPINNING - condenser | 1 | |
| 55-538 | SCREW - spinning | 6 | ||
| 55-405 | WASHER - dome | 6 | ||
| 55-3085 | NUT - speed | 6 | ||
| 12 | 55-457 | KEY - woodruff | 2 | |
| 13 | 99-8135 | COVER - housing bearing | 1 | |
| 99-3179 | COVER - fanshaft (2 speed transmission) | 1 | ||
| 55-1587 | SCREW - cover | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-4742 | FLATWASHER | 4 | ||
| 14 | 99-4353 | RING - evaporator fan | 1 | |
| 15 | 41-2195 | ALTERNATOR (37 amp, model EA, see 70D6) | 1 | |
|
10-41-2195 | Генератор 37A, MD/RD/TD-II / SB-II/III | 19 510 ₽ |
|
| 41-2194 | ALTERNATOR (23 amp, model 8MR) | 1 | ||
|
10-41-2194 | Генератор 23A, KD/MD/RD/TD-II / TS / SB-II/III | 19 720 ₽ |
|
| 41-2197 | ALTERNATOR (65 amp, model 8MR) | 1 | ||
|
10-41-2196 | Генератор 65A, KD/MD/RD/TD-II / URD / SB-II/III | 22 650 ₽ |
|
| 16 | 77-1598 | PULLEY - alternator (see 86A10) | 1 | |
| 99-9583 | GUIDE - belt (replaces alternator pulley nut) | 1 | ||
| 17 | 77-1808 | PULLEY - idler assembly | 1 | |
| 18 | 78-629 | BELT - fan | 1 | |
| 10-78-629 | Ремень двигатель - промвал, SB/SB-II/SB-III | 7 200 ₽ |
|
|
| PP-78-629 | Ремень двигатель - промвал, SB/SB-II/SB-III | 3 810 ₽ |
|
|
| 78-731 | BELT - fan (2 speed transmission) | 1 | ||
| 19 | 77-1599 | PULLEY - fan drive | 1 | |
| 20 | 77-1600 | PULLEY - alternator drive | 1 | |
| 21 | 78-339 | BELT - alternator | 1 | |
| 10-78-339 | Ремень генератора, SB-II/III 50 | 3 540 ₽ |
|
|
| PP-78-339 | Ремень генератора, SB-II/III 50 | 1 530 ₽ |
|
|
| 22 | 104-475 | MOTOR (15hp) | 1 | |
| 77-1395 | BEARING (drive end) | 1 | ||
| 77-1052 | BEARING (opposite drive end) | 1 | ||
| 23 | 77-1919 | PULLEY - motor | 1 | |
| 24 | 78-784 | BELT - compressor drive | 1 | |
| 10-78-784 | Пара ремней электромотор - компрессор, SB-II | 8 420 ₽ |
|
|
| PP-78-784 | Пара ремней электромотор - компрессор, SB-II | 3 420 ₽ |
|
|
| 25 | 77-1808 | PULLEY - idler (see 86A4) | 1 | |
| 26 | 107-341 | CLUTCH (see 125E4) | 1 | |
|
US-107-341 | Сцепление, SB-II/III / SMX/SMX-II | 113 700 ₽ |
|
| 27 | 55-1933 | KEY - boss | 1 | |
| 28 | 77-1591 | BOSS - pulley | 1 | |
|
10-77-1591 | Шкив, Isuzu 2.2 D.I. | 6 840 ₽ |
|
| 29 | 10-266 | KIT - bolt (crankshaft) | 1 | |
| 30 | 77-1665 | SPACER - pulley | 1 | |
| 31 | 77-1369 | PULLEY - crankshaft | 1 | |
| 32 | 55-4289 | SCREW - pulley | 4 | |
| 55-5411 | LOCKWASHER | 4 | ||
| 33 | 78-289 | BELT - water pump | 1 | |
| 34 | 77-1595 | PULLEY - water pump (stationary) | 1 | |
| 77-1187 | PULLEY - water pump (sliding) | 1 | ||
| 77-1285 | SPACER - pulley (0.035 thk) | 5 | ||
| 77-2164 | SPACER - pulley (0.015 thk) | 5 | ||
| 55-4998 | SCREW - pulley | 3 | ||
| 55-790 | LOCKWASHER | 3 |
