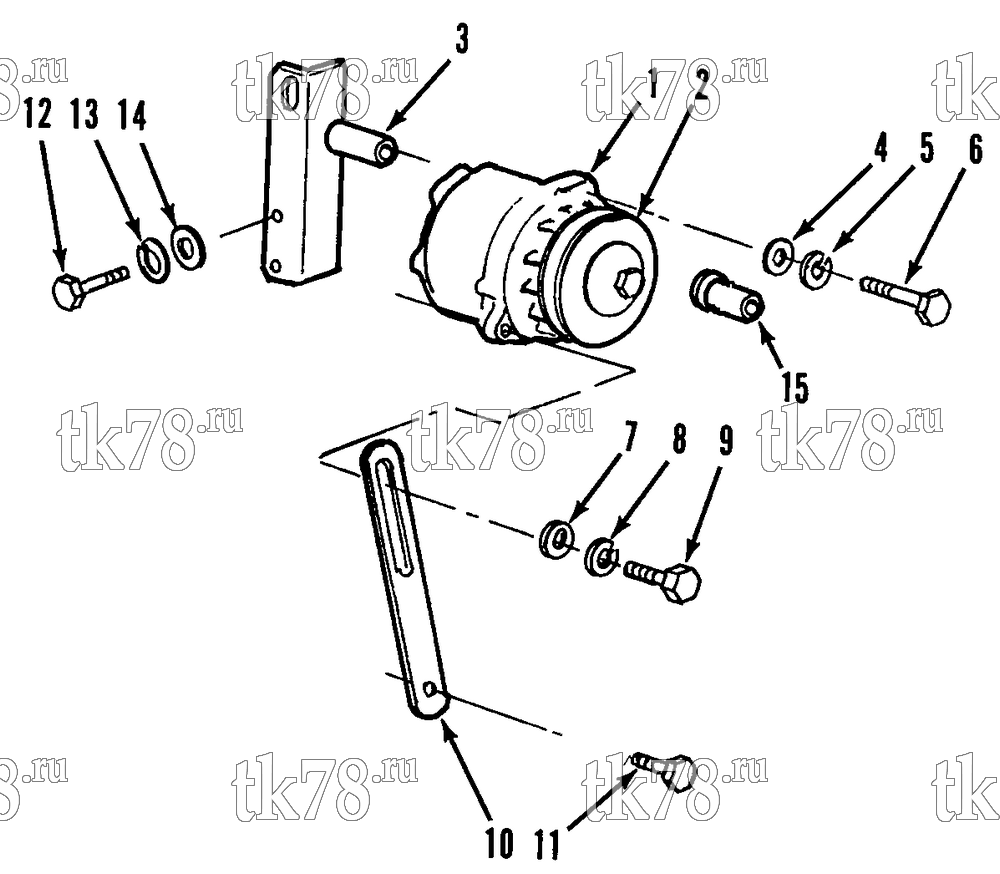

Установкa Thermo King схема ALTERNATOR MOUNTING – 69G5
Обновление от: 3/20/97
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-6257 | ALTERNATOR (51 amp, see 68G3) | 1 | |
| 44-6266 | ALTERNATOR (37 amp, see 66B2) | 1 | ||
|
10-44-6266 | Генератор 37A 12V | 32 740 ₽ |
|
| 2 | 77-762 | PULLEY - alternator (30s) | 1 | |
| 77-1598 | PULLEY - alternator (50s) | 1 | ||
| 3 | 99-8556 | BRACKET - alternator | 1 | |
| 4 | 55-2038 | FLATWASHER | 1 | |
| 5 | 55-365 | LOCKWASHER | 1 | |
| 6 | 55-4214 | SCREW - alternator | 1 | |
| 7 | 55-2769 | WASHER - special | 1 | |
| 8 | 55-421 | LOCKWASHER | 1 | |
| 9 | 55-2969 | SCREW - alternator adjusting | 1 | |
| 10 | 99-8552 | ARM - alternator adjusting | 1 | |
| 11 | 55-6945 | BOLT - arm | 1 | |
| 12 | 55-5022 | SCREW - bracket | 2 | |
| 13 | 55-790 | LOCKWASHER | 2 | |
| 14 | 55-371 | FLATWASHER | 2 | |
| 15 | 99-9583 | GUIDE - belt (replaces alternator pulley nut on 50 units) | 1 |
