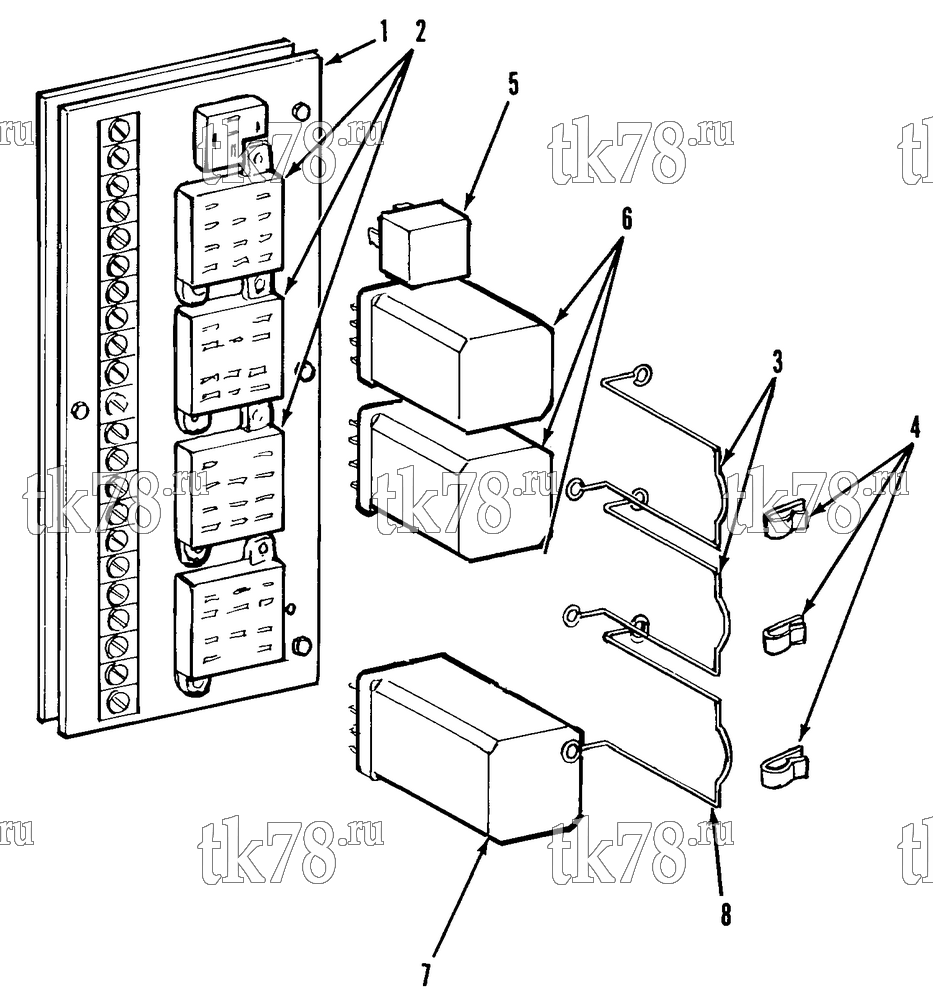

Установкa Thermo King схема CYCLE SENTRY II – 69C1
Обновление от: 1/24/95
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-7246 | BOARD - Cycle Sentry | 1 | |
|
10-44-7246 | Плата, CS-II with Buzzer | 28 560 ₽ |
|
| 2 | NSS | RELAY - socket | 3 | |
| 3 | 99-2027 | SPRING - holddown (relay) | 3 | |
| 4 | 55-2771 | CLAMP - holddown (relay) | 3 | |
| 5 | 44-6463 | RELAY - solid state (Battery Sentry) | 1 | |
|
10-44-6463 | Реле, Sentry | 6 500 ₽ |
|
| 6 | 44-3186 | RELAY - plug-in (run, start, pre-heat) | 3 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 7 | 44-7192 | SWITCH - Cycle Sentry module | 1 | |
|
10-44-7192 | Выключатель стартера | 19 780 ₽ |
|
| 8 | 99-8475 | HOLDDOWN - spring, relay | 1 | |
| 55-736 | SCREW - bracket | 1 | ||
| 55-431 | FLATWASHER | 1 |
