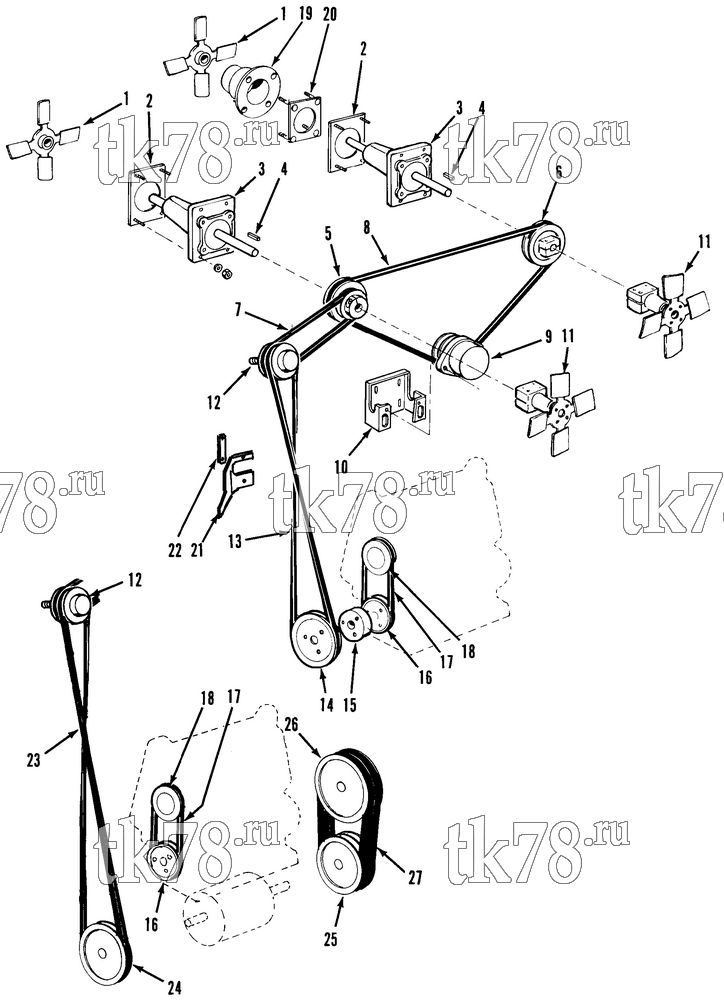

Установкa Thermo King схема FANS, BELTS & PULLEYS GROUP (LND-30 & 50) – 69B11
Обновление от: 3/6/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-609 | FAN - evaporator | 2 | |
| 2 | 99-3261 | BOLTPLATE - fanshaft | 2 | |
| 55-5078 | NUT - fanshaft | 8 | ||
| 3 | 78-627 | FANSHAFT - assembly | 2 | |
| 4 | 55-457 | KEY - fanshaft | 4 | |
| 5 | 77-1611 | PULLEY - fan drive (LND 30) | 1 | |
| 77-1587 | PULLEY - fan drive (LND 50) | 1 | ||
| 55-139 | SCREW - hub | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 6 | 77-1611 | PULLEY - fan drive (LND 30) | 1 | |
| 77-1586 | PULLEY - fan (LND 50) | 1 | ||
| 77-1562 | HUB - fan | 1 | ||
| 55-141 | SCREW - pulley to hub | 4 | ||
| 55-153 | SCREW - hub to shaft | 2 | ||
| 55-790 | LOCKWASHER | 6 | ||
| 7 | 78-671 | BELT - idler to fanshaft (LND 50) | 1 | |
| 10-78-671 | Ремень, MD-II, LND | 3 250 ₽ |
|
|
| 78-668 | BELT - idler to fanshaft (LND 30) | 1 | ||
| 10-78-668 | Ремень водяной помпы, SB-III/SMX | 3 680 ₽ |
|
|
| PP-78-668 | Ремень водяной помпы, SB-III/SMX | 1 040 ₽ |
|
|
| 8 | 78-626 | BELT - fan & alternator (LND 50) | 1 | |
| 10-78-626 | Ремень вентилятора и генератора, LND | 4 940 ₽ |
|
|
| 78-608 | BELT - fan & alternator (LND 30, before 11/85) | 1 | ||
| 78-626 | BELT - fan & alternator (LND 30, 11/85 & after) | 1 | ||
| 10-78-626 | Ремень вентилятора и генератора, LND | 4 940 ₽ |
|
|
| 9 | 44-6266 | ALTERNATOR (see 113D8) | 1 | |
|
10-44-6266 | Генератор 37A 12V | 32 740 ₽ |
|
| 77-1565 | PULLEY - alternator | 1 | ||
| 55-2042 | NUT - pulley | 1 | ||
| 55-4766 | LOCKWASHER | 1 | ||
| 55-1600 | KEY | 1 | ||
| 44-9752 | ALTERNATOR (23 amp, see 78A8) | 1 | ||
|
10-41-2194 | Генератор 23A, KD/MD/RD/TD-II / TS / SB-II/III | 19 720 ₽ |
|
| 44-8500 | ALTERNATOR (35 amp, see 113F12) | 1 | ||
| 10 | 99-8189 | MOUNT - alternator | 1 | |
| 99-8188 | BOLTSTRIP | 2 | ||
| 55-2298 | WASHER - special | 4 | ||
| 55-5078 | NUT | 4 | ||
| 55-4794 | SCREW - alternator (1/2-13) | 1 | ||
| 55-2038 | FLATWASHER | 1 | ||
| 55-3686 | NUT | 1 | ||
| 55-2969 | SCREW - alternator (3/8-18) | 1 | ||
| 55-371 | FLATWASHER | 1 | ||
| 55-790 | LOCKWASHER | 1 | ||
| 11 | 78-605 | FAN & HUB - assembly | 2 | |
| 77-1563 | HUB - fan | 2 | ||
| 55-141 | SCREW - fan to hub | 4 | ||
| 55-790 | LOCKWASHER | 4 | ||
| 55-153 | SCREW - hub to shaft | 4 | ||
| 55-790 | LOCKWASHER | 4 | ||
| 55-371 | FLATWASHER | 4 | ||
| 12 | 77-1808 | PULLEY - idler (see 66E10) | 1 | |
| 55-287 | NUT - pulley | 1 | ||
| 55-365 | LOCKWASHER | 1 | ||
| 55-2038 | FLATWASHER | 1 | ||
| 13 | 78-669 | BELT - engine to idler (LND 30) | 1 | |
| 10-78-669 | Ремень двигатель - промежуточный ролик, LND 30 | 9 310 ₽ |
|
|
| 14 | 77-1706 | PULLEY - crankshaft (LND 30) | 1 | |
| 55-5419 | SCREW - pulley (LND 30) | 3 | ||
| 55-5411 | LOCKWASHER (LND 30) | 3 | ||
| 15 | 77-1569 | SPACER - pulley (LND 30) | 1 | |
| 16 | 77-1436 | PULLEY - crankshaft (see 67A6) | 1 | |
| 17 | 78-513 | BELT - water pump | 1 | |
| 18 | 77-1426 | PULLEY - water pump (see 63F1) | 1 | |
|
10-77-1426 | Шкив водяной помпы, Yanmar 374 / 388 / 395 / 482 / 486, SL/SLe | 6 670 ₽ |
|
| 19 | 99-7766 | SUPPORT - bearing | 2 | |
| 20 | 99-3269 | BOLTPLATE | 2 | |
| 55-5078 | NUT - support | 8 | ||
| 55-402 | FLATWASHER | 8 | ||
| 21 | 99-9256 | GUARD - belt | 1 | |
| 22 | 99-8473 | BOLTSTRIP | 1 | |
| 55-4118 | NUT | 2 | ||
| 55-411 | FLATWASHER | 2 | ||
| 23 | 78-697 | BELT - engine to idler (LND 50) | 1 | |
| 10-78-697 | Ремень двигатель - промежуточный ролик, LND 50 | 6 760 ₽ |
|
|
| 24 | 77-1884 | PULLEY - fan drive (LND 50) | 1 | |
| 55-153 | SCREW - pulley | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 25 | 77-1590 | PULLEY - clutch (LND 50) | 1 | |
| 55-153 | SCREW - pulley | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 26 | 107-341 | CLUTCH (see 125E4) | 1 | |
|
US-107-341 | Сцепление, SB-II/III / SMX/SMX-II | 113 700 ₽ |
|
| 27 | 78-628 | BELT - clutch (set) | 1 | |
| 10-78-628 | Ремень набор из 2 шт, LND (30&50) | 5 200 ₽ |
|
