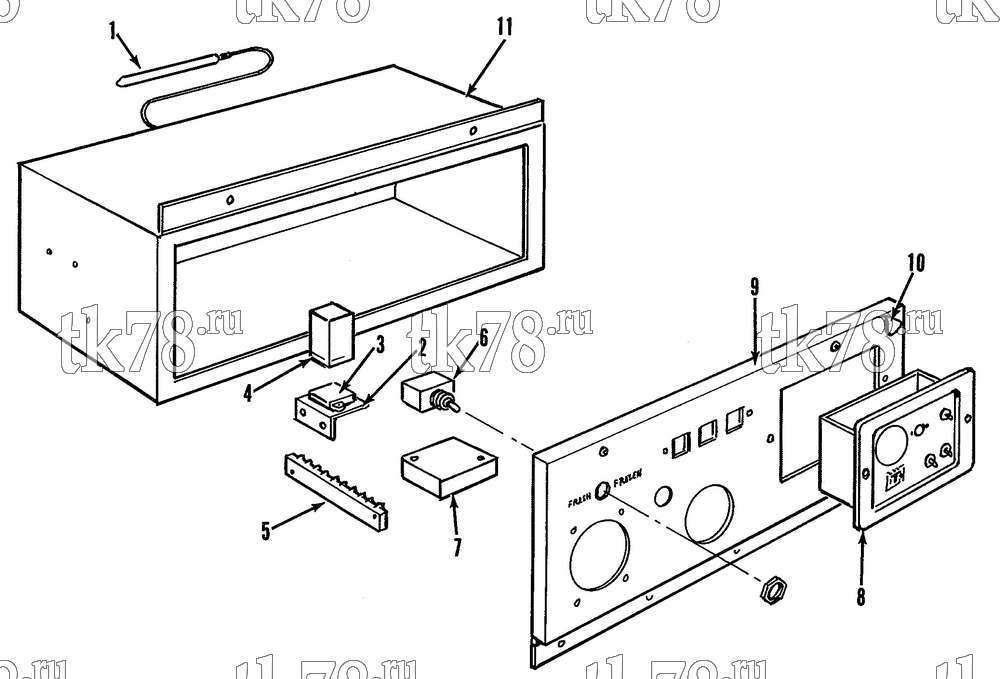

Установкa Thermo King схема DISCHARGE AIR MONITOR COMPONENTS – 67B11
Обновление от: 3/8/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-5234 | SENSOR - air discharge monitor | 1 | |
|
10-44-5234 | Сенсор | 14 130 ₽ |
|
| 55-547 | CLAMP - sensor | 1 | ||
| 33-367 | GROMMET - sensor | 2 | ||
| 2 | 99-4268 | BRACKET - relay | 1 | |
| 3 | 44-3184 | SOCKET - relay | 1 | |
| 4 | 44-3186 | RELAY | 1 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 99-2027 | SPRING - holddown | 1 | ||
| 55-2270 | RIVET - spring | 2 | ||
| 55-2771 | CLAMP - speednut | 1 | ||
| 5 | 44-4186 | BOARD - terminal | 1 | |
| 99-8281 | MARKSTRIP | 1 | ||
| 99-8282 | MARKSTRIP | 1 | ||
| 6 | 44-1357 | SWITCH - on/off (fresh/frozen) | 1 | |
|
10-44-1357 | Выключатель однополюсный | 4 400 ₽ |
|
| PP-44-1357 | Выключатель однополюсный | 2 000 ₽ |
|
|
| 99-8283 | NAMEPLATE - toggle switch (fresh/frozen) | 1 | ||
| 99-8284 | NAMEPLATE - heat & cool lights may be on when discharge air monitor is operating | 1 | ||
| 7 | 44-6597 | MONITOR - discharge air | 1 | |
| 8 | 45-1244 | PANEL - switch (see 7C13) | 1 | |
| 9 | 99-8285 | COVER - control panel (discharge air monitor) | 1 | |
| 10 | 99-8286 | NAMEPLATE - control panel | 1 | |
| 11 | 99-8287 | BOX - control (only) | 1 |
