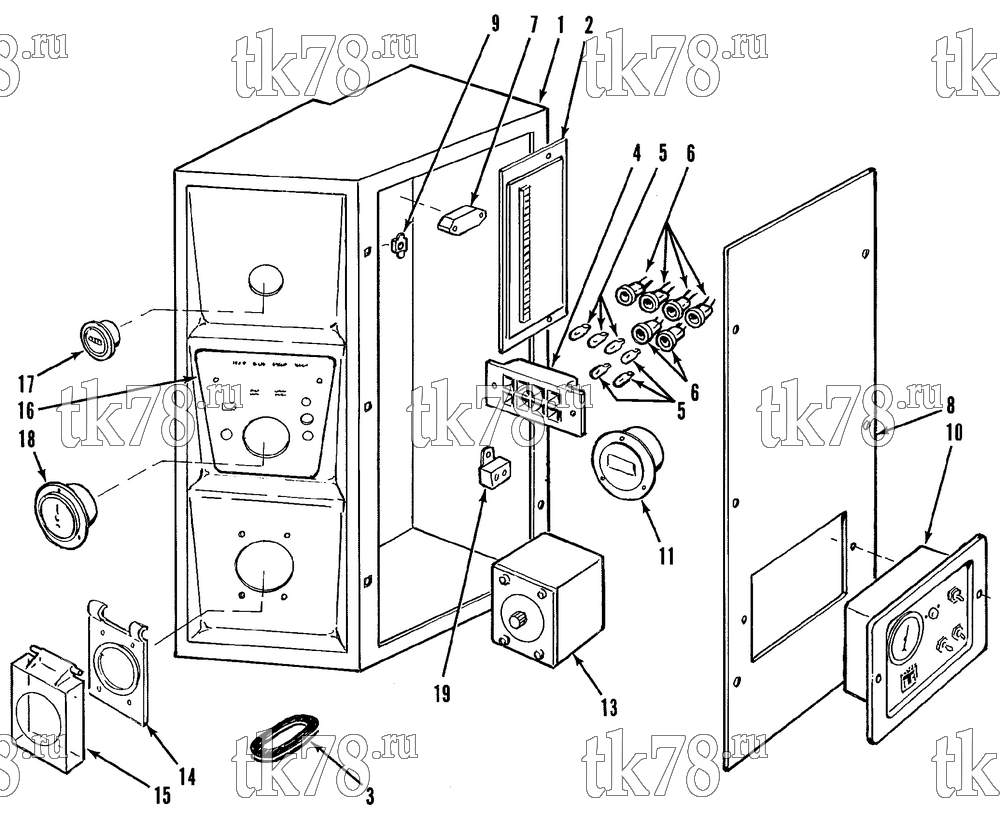

Установкa Thermo King схема CONTROL BOX ASSEMBLY – 66B14
Обновление от: 3/6/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-2753 | BOX - control | 1 | |
| 2 | 44-7246 | BOARD - Cycle Sentry (see 77E3) | 1 | |
|
10-44-7246 | Плата, CS-II with Buzzer | 28 560 ₽ |
|
| 55-3472 | NUT - board | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 3 | 33-628 | GROMMET - harness | 1 | |
| 4 | 44-6489 | HOUSING - lamp | 1 | |
| 33-1606 | GASKET - lamp housing | 1 | ||
| 55-2995 | SCREW - housing | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2996 | LOCKWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 5 | 44-3711 | BULB - light | 5 | |
| 6 | 44-6492 | HARNESS - indicator light | 1 | |
| 44-6462 | SOCKET - light | 5 | ||
| 44-7054 | TERMINAL - bulb | 10 | ||
| 44-5030 | CONNECTOR (7-pin) | 1 | ||
| 7 | 44-8017 | DETECTOR - liquid level | 1 | |
| 55-2995 | SCREW - detector | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2996 | LOCKWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 8 | 98-2754 | PANEL - control box | 1 | |
| 99-4976 | STRIP (rubber) | A/R | ||
| 55-3623 | SCREW - panel | 6 | ||
| 55-2964 | LOCKWASHER | 6 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 9 | 55-3493 | NUT - captive | 6 | |
| 10 | 45-1232 | PANEL - switch (SB-II 3000, see 66F5) | 1 | |
| 45-252 | PANEL - switch (SB-II 1500, see 67D6) | 1 | ||
| 55-3085 | NUT - captive | 2 | ||
| 11 | 40-356 | KIT - digital thermometer | 1 | |
| 44-6496 | SENSOR - thermometer | 1 | ||
| 44-6700 | HARNESS - thermometer | 1 | ||
| 41-2590 | THERMOMETER - digital LED (F) | 1 | ||
| 44-5234 | SENSOR (10 ft) | 1 | ||
|
10-44-5234 | Сенсор | 14 130 ₽ |
|
| 55-2997 | SCREW - thermometer | 3 | ||
| 55-3013 | FLATWASHER | 3 | ||
| 55-2964 | LOCKWASHER | 3 | ||
| 55-2999 | NUT | 3 | ||
| 13 | 45-1564 | THERMOSTAT (Thermoguard, see 42F12) | 1 | |
| 55-1512 | SCREW - thermostat | 4 | ||
| 14 | 33-977 | GASKET - thermostat | 1 | |
| 15 | 99-1326 | COVER - thermostat | 1 | |
|
10-99-1326 | Крышка термостата | 8 600 ₽ |
|
| 99-7972 | COVER - thermostat (clear) | 1 | ||
| 99-5635 | COVER - thermostat (black) | 1 | ||
| 16 | 99-8014 | NAMEPLATE - gauge panel | 1 | |
| 17 | 44-8764 | HOURMETER | 1 | |
|
10-44-8764 | Счетчик часов | 7 260 ₽ |
|
| 18 | 61-3467 | THERMOMETER - analog | 1 | |
|
10-61-3467 | Термометр | 15 250 ₽ |
|
| 66-1153 | LENS | 1 | ||
| 33-2430 | GASKET - lens (use on plastic body thermometer) | 1 | ||
| 33-666 | GASKET - lens (use on metal body thermometer) | 1 | ||
| 55-2997 | SCREW - thermometer | 3 | ||
| 55-3013 | FLATWASHER | 3 | ||
| 55-2964 | LOCKWASHER | 3 | ||
| 55-2999 | NUT | 3 | ||
| 19 | 44-5808 | BREAKER - circuit (throttle solenoid) | 1 | |
| 55-2995 | SCREW - breaker | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 55-2965 | NUT | 1 |
