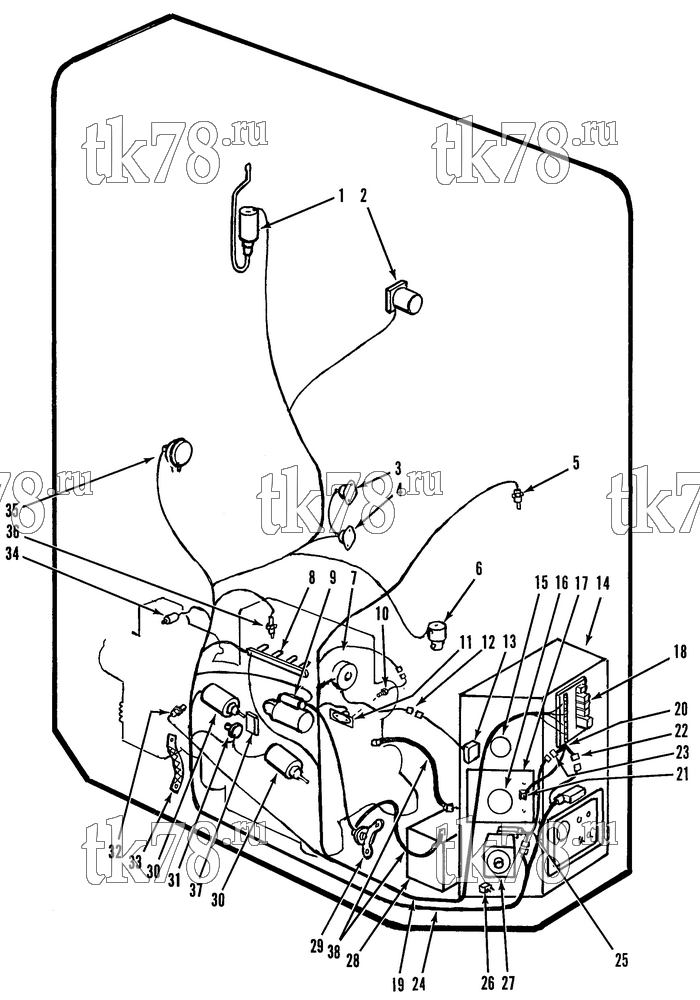

Установкa Thermo King схема ELECTRICAL COMPONENTS (SB-II 3000) – 66B12
Обновление от: 6/15/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-2823 | SOLENOID - defrost | 1 | |
|
10-44-2823 | Соленоид оборотов двигателя | 5 370 ₽ |
|
| 99-2244 | STRAP - ground | 1 | ||
| 44-2756 | DIODE (silicone) | 1 | ||
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 2 | 44-6484 | VALVE - overdrive control | 1 | |
| 44-6595 | COIL (12V) | 1 | ||
| 3 | 44-3155 | SWITCH - defrost termination (electronic) | 1 | |
|
10-44-3155 | Выключатель оттайки, KD/MD/RD-I / SB-I/II | 4 780 ₽ |
|
| 4 | 55-4507 | SCREW - switch | 3 | |
| 55-2201 | FLATWASHER | 3 | ||
| 55-5761 | LOCKWASHER | 3 | ||
| 5 | 44-6534 | SENSOR - radiator | 1 | |
|
10-44-6534 | Сенсор радиатора | 8 830 ₽ |
|
| 44-6535 | HARNESS - sensor | 1 | ||
| 6 | 66-2009 | VALVE - pilot solenoid | 1 | |
|
10-66-2009 | Управляющий клапан, KD/MD/TD/RD-II / SB-I/II/III | 18 500 ₽ |
|
| 44-3803 | COIL - solenoid (12V) | 1 | ||
| 41-1525 | COIL - valve (12V, 7/16 bore) | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 55-8786 | NUT - valve | 1 | ||
| 7 | 44-6266 | ALTERNATOR (37 amp, see 51B10) | 1 | |
|
10-44-6266 | Генератор 37A 12V | 32 740 ₽ |
|
| 8 | 44-2922 | GLOW PLUG | 4 | |
|
10-44-2922 | Свеча накаливания, Isuzu C201 | 1 510 ₽ |
|
| 9 | 845-1285 | STARTER - gear reducing | 1 | |
| 10 | 44-6019 | BOLT - thermistor | 1 | |
|
10-44-6019 | Термистор | 4 880 ₽ |
|
| 11 | 44-6018 | THERMOSTAT - block temperature sensor | 1 | |
| 30-44-6018 | Выключатель температурный | 15 030 ₽ |
|
|
| 99-7372 | PLATE - sensor | 1 | ||
| 55-3134 | SCREW - sensor | 2 | ||
| 55-1266 | FLATWASHER | 2 | ||
| 55-5090 | SCREW - plate | 1 | ||
| 55-364 | LOCKWASHER | 2 | ||
| 12 | 44-6486 | HARNESS - voltage regulator | 1 | |
| 13 | 44-5013 | REGULATOR - voltage (12V) | 1 | |
| 44-5013 OEM | Реле-регулятор генератора, KD/MD/RD-I / SB-I/II / UMD/URD | 5 050 ₽ |
|
|
| 55-736 | SCREW - regulator | 3 | ||
| 55-431 | FLATWASHER | 3 | ||
| 55-5292 | NUT | 3 | ||
| 14 | 98-2753 | BOX - control | 1 | |
| 15 | 44-8764 | HOURMETER | 1 | |
|
10-44-8764 | Счетчик часов | 7 260 ₽ |
|
| 16 | 44-8046 | THERMOMETER - digital | 1 | |
| 55-2997 | SCREW - thermometer | 1 | ||
| 55-3013 | FLATWASHER | 3 | ||
| 55-3014 | LOCKWASHER | 3 | ||
| 55-2999 | NUT | 3 | ||
| 17 | 99-8014 | NAMEPLATE - gauge panel | 1 | |
| 18 | 44-7246 | BOARD - Cycle Sentry (see 77E3) | 1 | |
|
10-44-7246 | Плата, CS-II with Buzzer | 28 560 ₽ |
|
| 55-3472 | NUT - relay | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 19 | 44-6494 | HARNESS (Cycle Sentry to engine) | 1 | |
| 20 | 44-6493 | HARNESS (Cycle Sentry) | 1 | |
| 21 | 44-709 | SWITCH - Cycle Sentry | 1 | |
|
10-44-709 | Выключатель четырехполюсный | 5 130 ₽ |
|
| 44-6590 | DIODE - silicone | 1 | ||
| 22 | 44-5140 | CONNECTOR - main harness (7-pin) | 1 | |
| 23 | 44-5719 | CONNECTOR - thermostat harness (8-pin) | 1 | |
| 24 | 44-6487 | HARNESS - main | 1 | |
| 44-5214 | SOCKET (12-pin, 10 amp) | 1 | ||
| 25 | 44-6491 | HARNESS (Thermoguard) | 1 | |
| 44-5310 | CONNECTOR - thermostat (15-pin) | 1 | ||
| 44-5718 | CONNECTOR - Cycle Sentry (8-pin) | 1 | ||
| 44-5600 | CONNECTOR - main harness (6-pin) | 1 | ||
| 26 | 44-5808 | BREAKER - circuit (throttle solenoid) | 1 | |
| 27 | 45-1564 | THERMOSTAT (Thermoguard, see 42F12) | 1 | |
| 33-977 | GASKET - thermostat cover | 1 | ||
| 99-1326 | COVER - thermostat | 1 | ||
|
10-99-1326 | Крышка термостата | 8 600 ₽ |
|
| 28 | 203-340 | BATTERY (625 CCA) | 1 | |
| 98-2733 | TRAY - battery | 1 | ||
| 99-4482 | ROD - battery holddown | 2 | ||
| 55-4118 | NUT - rod | 2 | ||
| 55-411 | FLATWASHER | 2 | ||
| 99-6332 | STRAP - holddown | 1 | ||
| 99-7947 | TUBE - drain | 1 | ||
| 55-2242 | NUT (steel) | 1 | ||
| 55-7318 | LOCKNUT (plastic) | 1 | ||
| 29 | 44-7997 | INSULATOR - terminal (see 84D13) | 1 | |
| 30 | 44-6544 | SOLENOID - engine | 2 | |
|
10-44-6544 | Соленоид оборотов двигателя, MD-II/KD-II/SB-II/SB-III | 19 090 ₽ |
|
|
PP-44-6544 | Соленоид оборотов двигателя, MD-II/KD-II/SB-II/SB-III | 7 150 ₽ |
|
| 44-2756 | DIODE (silicone) | 1 | ||
|
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 31 | 44-4774 | SWITCH - oil pressure | 1 | |
|
10-44-4774 | Выключатель давления масла | 5 530 ₽ |
|
| 32 | 44-9298 | SENSOR - rpm | 1 | |
|
10-44-9298 | Датчик оборотов двигателя | 14 400 ₽ |
|
|
PP-44-9298 | Датчик оборотов двигателя | 3 310 ₽ |
|
| 99-6738 | PLATE - rpm sensor | 1 | ||
| 33 | 44-6533 | STRAP - ground | 1 | |
| 34 | 44-5305 | SWITCH - hpco (R12) | 1 | |
|
10-44-5305 | Выключатель высокого давления (R12) | 3 950 ₽ |
|
| 44-5508 | SWITCH - hpco (R502) | 1 | ||
|
10-44-5508 | Выключатель высокого давления (R502) | 8 490 ₽ |
|
| 35 | 44-3474 | SWITCH - air pressure | 1 | |
|
10-44-3474 | Переключатель воздуха | 7 150 ₽ |
|
| 55-5292 | NUT - switch | 2 | ||
| 55-431 | FLATWASHER | 2 | ||
| 36 | 44-3018 | SWITCH - water temperature | 1 | |
|
10-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 5 830 ₽ |
|
| PP-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 2 200 ₽ |
|
|
| 37 | 44-6551 | SWITCH - micro (transmission control) | 1 | |
| 55-4819 | SCREW - adjust | 1 | ||
| 55-2752 | NUT | 1 | ||
| 99-8136 | SUPPORT - switch | 1 | ||
| 55-5022 | SCREW - support | 1 | ||
| 55-371 | LOCKWASHER | 1 | ||
| 99-8137 | BRACKET - switch | 1 | ||
| 38 | 44-6698 | CABLE - battery (19 in lg) | 2 | |
| 44-6699 | CABLE - battery (22 in, threaded posts) | 2 |
