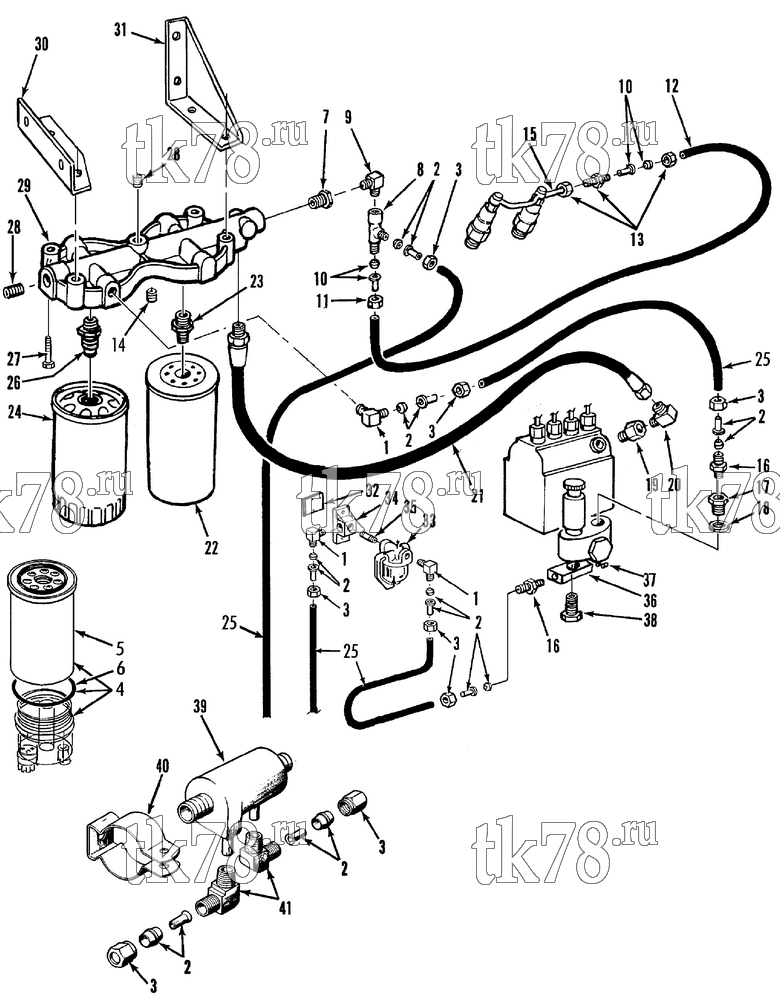

Установкa Thermo King схема FUEL FILTERS & HOSES – 65F7
Обновление от: 11/24/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-4380 | ELBOW | 8 | |
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 2 | 10-242 | KIT - sleeve & eyelet (3/8) | 5 | |
|
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 3 | 11-4941 | NUT - hose fitting (3/8) | 5 | |
| 4 | 11-5948 | FILTER - fuel (primary) | 1 | |
| US-11-5947 | Фильтр топливный со сливом, SB-II/III | 3 040 ₽ |
|
|
| 5 | 11-5947 | ELEMENT - fuel filter | 1 | |
| US-11-5947 | Фильтр топливный со сливом, SB-II/III | 3 040 ₽ |
|
|
| 6 | 33-1687 | O-RING - bowl | 1 | |
| 7 | 55-4799 | BUSHING | 1 | |
| 8 | 11-5665 | TEE | 1 | |
| 9 | 55-2505 | ELBOW | 1 | |
| 10 | 10-243 | KIT - sleeve & eyelet (1/4) | 2 | |
| 11 | 11-4841 | NUT - fuel hose (1/4) | 2 | |
| 12 | 11-4367 | HOSE (1/4 od x 35 ft lg) | A/R | |
| 13 | 11-6496 | FITTING - hose (5/16 x 1/4) | 1 | |
| 14 | 55-1004 | PLUG - pipe | 1 | |
| 15 | 11-3361 | TUBE - fuel return | 1 | |
| 16 | 55-4515 | COUPLING | 2 | |
| 17 | 11-4381 | ADAPTER | 2 | |
| 18 | 55-1922 | WASHER | 2 | |
|
10-55-1922 | Уплотнтель WASHER, PIPE JOINT | 690 ₽ |
|
| 19 | 11-4694 | ADAPTER | 1 | |
| 20 | 55-3331 | ELBOW | 1 | |
| 21 | 11-5675 | HOSE - filter to injection pump | 1 | |
| 22 | 11-9102 | FILTER - fuel (primary, EMI) | 1 | |
| 11-9097 | FILTER - fuel (primary, std) | 1 | ||
|
10-11-9097 | Топливный фильтр, Primary | 2 750 ₽ |
|
| 23 | 55-3168 | ADAPTER - fuel pickup | 1 | |
| 24 | 11-9103 | FILTER - fuel (secondary, EMI) | 1 | |
| 11-9098 | FILTER - fuel (secondary, std) | 1 | ||
|
11-9341 OEM | Фильтр топливный EMI 2000, MD/RD/KD/T-Series | 2 680 ₽ |
|
|
US-11-9341 | Фильтр топливный, MD/RD/KD/T-Series | 1 840 ₽ |
|
|
10-11-9341 | Фильтр топливный, MD/RD/KD/T-Series | 1 090 ₽ |
|
| 25 | 11-4372 | HOSE (3/8 od x 35 ft lg) | A/R | |
| 26 | 55-3403 | ADAPTER - fuel pickup | 1 | |
| 27 | 55-153 | SCREW - bracket | 4 | |
| 55-371 | FLATWASHER | 4 | ||
| 55-4967 | NUT | 4 | ||
| 28 | 55-193 | PLUG - pipe | 2 | |
| 29 | 11-6528 | BRACKET - filter | 1 | |
| 30 | 99-8763 | BRACKET - filter | 1 | |
| 31 | 99-9731 | BRACKET - filter | 1 | |
| 55-201 | SCREW - filter to bracket | 4 | ||
| 55-371 | FLATWASHER | 4 | ||
| 55-4967 | NUT | 4 | ||
| 55-145 | SCREW - bracket to frame | 2 | ||
| 55-411 | FLATWASHER | 6 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 55-4118 | NUT | 4 | ||
| 32 | 99-5309 | BRACKET - prefilter | 1 | |
| 55-5022 | SCREW - bracket | 1 | ||
| 55-790 | LOCKWASHER | 1 | ||
| 55-371 | FLATWASHER | 1 | ||
| 33 | 11-4817 | FILTER - fuel | 1 | |
| 11-4956 | HEAD - filter | 1 | ||
| 11-4880 | ELEMENT - filter | 1 | ||
| 33-2464 | GASKET | 1 | ||
| 10-299 | KIT - bowl & filter (glass) | 1 | ||
| 11-4957 | BAIL - filter | 1 | ||
| 11-4958 | NUT - bail | 1 | ||
| 34 | 55-4496 | ELBOW - flange | 1 | |
| 55-1049 | SCREW - elbow | 2 | ||
| 55-5292 | NUT | 2 | ||
| 35 | 55-4512 | NIPPLE | 1 | |
| 36 | 11-5542 | BLOCK - fuel | 1 | |
| 37 | 55-433 | PLUG - pipe | 2 | |
| 38 | 11-4381 | ADAPTER - block | 1 | |
| 39 | 10-253 | KIT - fuel heater (diesel) | 1 | |
| 55-1521 | CLAMP - hose (water) | 1 | ||
| 40 | 55-2537 | HANGER | 1 | |
| 55-101 | SCREW - heater | 2 | ||
| 55-927 | NUT | 2 | ||
| 41 | 11-4959 | ELBOW - fuel | 2 | |
| 42 | 99-6344 | BRACKET - heater | 1 |
