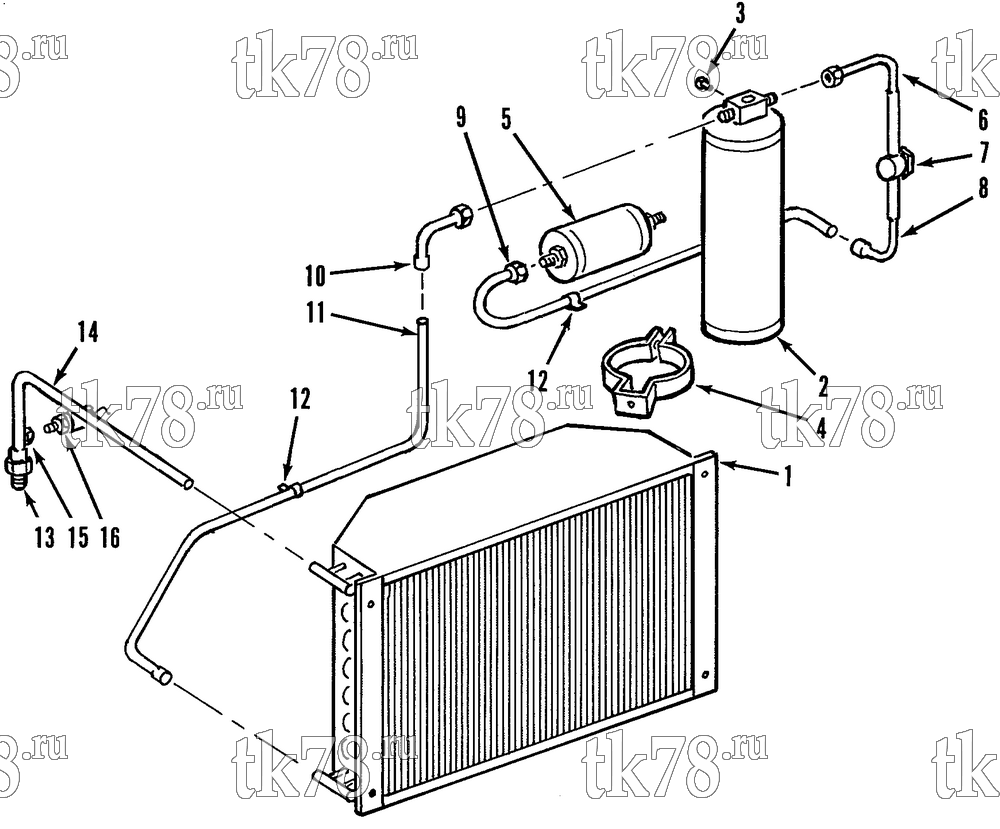

Установкa Thermo King схема REFRIGERATION COMPONENTS (STB-I 10D) – 64E13
Обновление от: 7/22/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-713 | COIL - condenser | 1 | |
| 55-3059 | NUT - captive | 4 | ||
| 55-538 | SCREW - coil | 4 | ||
| 2 | 67-249 | TANK - receiver | 1 | |
| 3 | 55-5252 | PLUG - fuse | 1 | |
| 4 | 55-2141 | HANGER - receiver tank | 1 | |
| 55-165 | SCREW - hanger | 1 | ||
| 55-4118 | NUT | 1 | ||
| 55-5664 | SCREW - tank | 1 | ||
| 55-4118 | NUT | 1 | ||
| 5 | 66-1409 | DEHYDRATOR | 1 | |
|
10-66-4729 | Дегидратор, SB-I/II/III | 3 890 ₽ |
|
| 6 | 66-4151 | TUBE - receiver to indicator | 1 | |
| 7 | 66-1296 | INDICATOR - liquid | 1 | |
| 8 | 66-4152 | TUBE - indicator to dehydrator | 1 | |
| 55-2865 | COUPLING | 1 | ||
| 9 | 66-4150 | TUBE - receiver to dehydrator | 1 | |
| 10 | 66-4153 | TUBE - receiver tank | 1 | |
| 11 | 66-4131 | TUBE - condenser to receiver tank | 1 | |
| 12 | 55-549 | CLAMP - tube | 2 | |
| 55-165 | SCREW | 2 | ||
| 55-4118 | NUT | 2 | ||
| 13 | 55-3213 | ADAPTER | 1 | |
| 14 | 66-4149 | TUBE - adapter to valve | 1 | |
| 15 | 66-4139 | FITTING - hpco switch | 1 | |
| 16 | 44-5305 | SWITCH - hpco | 1 | |
|
10-44-5305 | Выключатель высокого давления (R12) | 3 950 ₽ |
|
