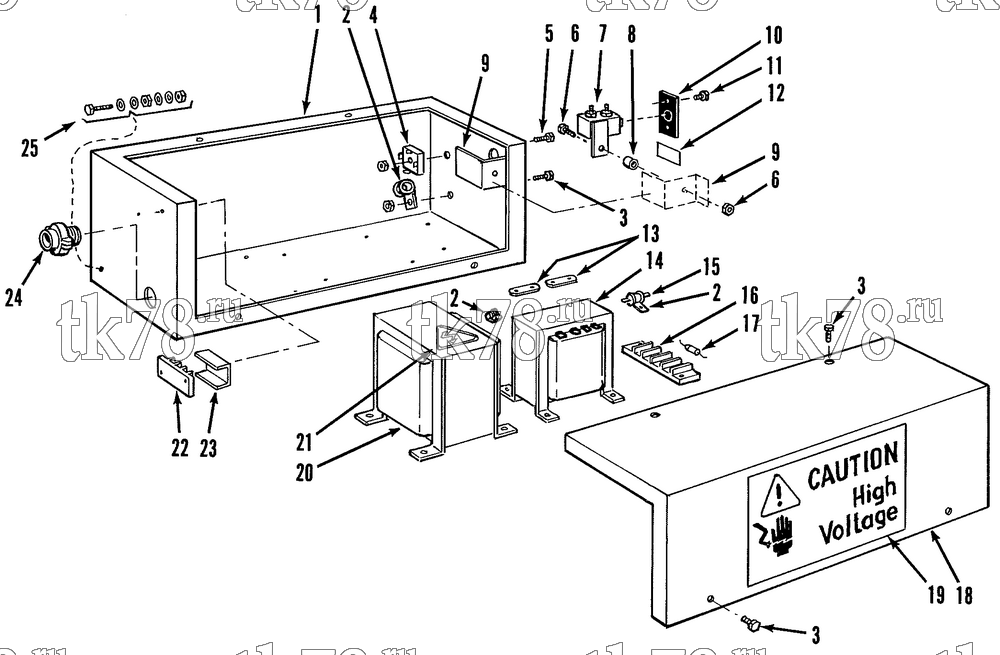

Установкa Thermo King схема TRANSFORMER BOX ASSEMBLY (STB-I 20D) – 64C9
Обновление от: 7/23/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 99-7680 | BOX - only | 1 | |
| 2 | 55-547 | CLAMP | 3 | |
| 3 | 55-736 | SCREW - cover & clamp (1/2 in lg) | 2 | |
| 55-1049 | SCREW (3/4 in lg) | 1 | ||
| 4 | 44-6301 | RECTIFIER | 1 | |
| 5 | 55-4815 | SCREW - rectifier | 1 | |
| 55-1266 | FLATWASHER | 1 | ||
| 55-3519 | NUT | 1 | ||
| 6 | 55-1230 | SCREW - circuit breaker | 1 | |
| 55-5292 | NUT | 1 | ||
| 7 | 44-6146 | BREAKER - circuit (manual reset, 12V, 40 amp) | 1 | |
|
10-44-6146 | Автоматический выключатель, 40A | 2 220 ₽ |
|
| 44-6400 | BREAKER - circuit (manual reset, 24V, 20 amp) | 1 | ||
| 55-346 | NUT - circuit breaker | 2 | ||
| 55-1852 | LOCKWASHER | 2 | ||
| 55-401 | FLATWASHER | 2 | ||
| 8 | 55-5198 | SPACER - circuit breaker | 1 | |
| 9 | 99-7682 | BRACKET - circuit breaker | 1 | |
| 55-2270 | RIVET - circuit breaker | 1 | ||
| 10 | 44-2119 | SEAL - circuit breaker | 1 | |
| 99-7039 | PLATE - boot | 1 | ||
| 11 | 55-2366 | SCREW - seal | 2 | |
| 55-3519 | NUT | 2 | ||
| 12 | 99-8525 | NAMEPLATE - Electric Motor Reset | 1 | |
| 13 | 44-3710 | JUMPER (1 req for 24V; 2 req for 12V) | A/R | |
| 14 | 44-6402 | TRANSFORMER (115/230) | 1 | |
| 44-6403 | TRANSFORMER (220/380V) | 1 | ||
| 55-736 | SCREW - transformer | 4 | ||
| 55-5292 | NUT | 4 | ||
| 15 | 44-6323 | CAPACITOR - assembly | 1 | |
| 16 | 44-4269 | BOARD - terminal | 1 | |
| 55-4265 | SCREW - board | 2 | ||
| 55-5077 | NUT | 2 | ||
| 17 | 44-2756 | DIODE - assembly | 1 | |
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 18 | 99-7681 | COVER - transformer box | 1 | |
| 99-4976 | STRIP - gasket (cover, 4.0 ft) | A/R | ||
| 19 | 99-5307 | NAMEPLATE - Caution High Voltage | 1 | |
| 20 | 44-6299 | CHOKE - reactor filter | 1 | |
| 55-736 | SCREW - choke | 4 | ||
| 55-5292 | NUT | 4 | ||
| 21 | 99-7834 | NAMEPLATE - Caution | 1 | |
| 22 | 44-4341 | BOARD - terminal | 1 | |
| 23 | 99-7681 | COVER - terminal board | 1 | |
| 55-4265 | SCREW - terminal board | 2 | ||
| 55-5077 | NUT | 2 | ||
| 24 | 55-3291 | CONNECTOR - cable (1 incl locknut) | 1 | |
| 25 | 55-3506 | SCREW - ground | 1 | |
| 55-3496 | LOCKWASHER (internal/external tooth) | 1 | ||
| 55-346 | NUT | 2 | ||
| 55-401 | FLATWASHER | 2 | ||
| 55-1852 | LOCKWASHER (internal tooth) | 1 |
