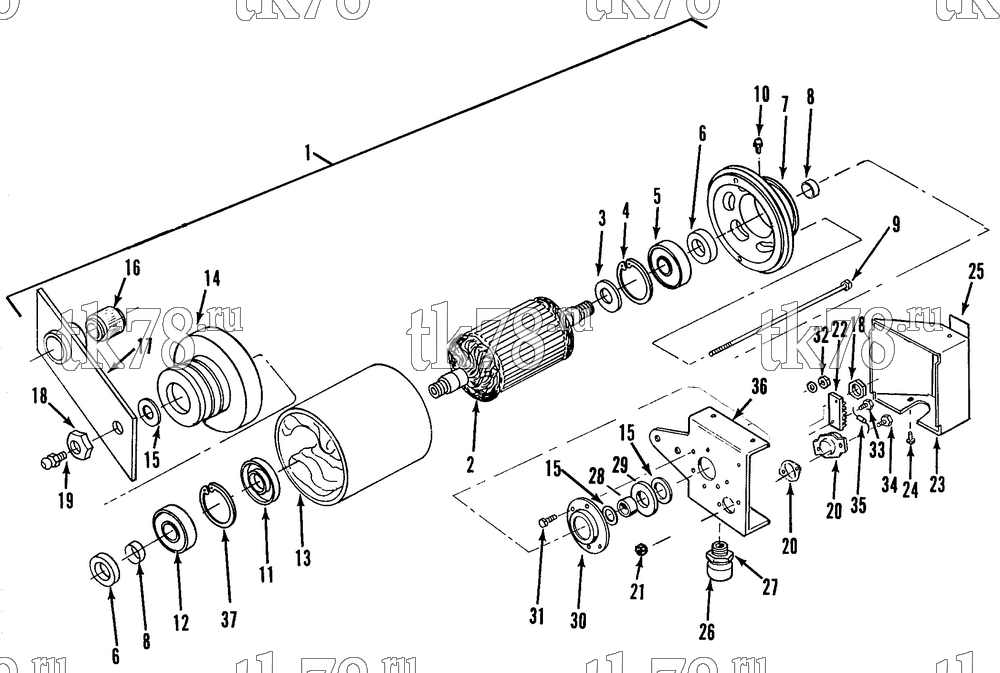

Установкa Thermo King схема ALTERNATOR ASSEMBLY – 62C3
Обновление от: 4/15/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 104-438 | ALTERNATOR (RMU-II M4, M5, M7) | 1 | |
| 104-439 | ALTERNATOR (RMU-II M6, M8) | 1 | ||
| 2 | 45-1183 | ARMATURE (incl 19) | 1 | |
| 3 | 55-5408 | WASHER - thrust | 1 | |
| 4 | 55-5409 | RING - retaining (104-387 & 104-424 only) | 1 | |
| 5 | 77-1557 | BEARING - ball | 1 | |
| 6 | 33-1614 | SEAL - grease | 1 | |
| 7 | 77-1624 | BELL - end | 1 | |
| 8 | 77-1626 | SLEEVE - seal | 2 | |
| 9 | 55-5194 | SCREW (1/4-20 x 7-1/2) | 2 | |
| 10 | 55-4393 | FITTING - grease | 1 | |
| 11 | 33-1615 | SEAL - grease | 1 | |
| 12 | 77-1559 | BEARING - roller | 1 | |
| 13 | 99-8125 | FRAME (w/ magnets) | 1 | |
| 14 | 77-1625 | BELL - end (w/ pulley, 104-424 alternator) | 1 | |
| 77-1568 | BELL - end (w/ pulley, 104-387 alternator) | 1 | ||
| 77-1519 | BELL - end (w/ pulley, 104-377 alternator) | 1 | ||
| 15 | 55-5281 | WASHER - special | 3 | |
| 16 | 99-7634 | MOUNT - vibration | 1 | |
| 17 | 99-7581 | BAR - pivot (incl 16) | 1 | |
| 18 | 55-5282 | NUT | 1 | |
| 19 | 55-4393 | FITTING - grease | 1 | |
| 20 | 44-5097 | PROTECTOR - motor (RMU-II M5, M7) | 1 | |
| 21 | 55-4223 | NUT - protector | 2 | |
| 22 | 44-5254 | BOARD - terminal | 1 | |
| 99-5328 | NAMEPLATE - Wire Number | 1 | ||
| 44-5253 | JUMPER | 2 | ||
| 23 | 99-7580 | COVER | 1 | |
| 24 | 55-2778 | SCREW - cover | 3 | |
| 25 | 99-7834 | NAMEPLATE - Caution | 1 | |
| 26 | 44-4162 | GRIP - cable | 1 | |
| 27 | 55-2836 | NUT | 1 | |
| 28 | 99-7584 | SLEEVE - support | 2 | |
| 29 | 99-7582 | ISOLATOR - vibration | 1 | |
| 30 | 99-7583 | FLANGE | 1 | |
| 31 | 55-538 | SCREW (1/4-20 x 5/8) | 6 | |
| 32 | 55-4118 | NUT | 6 | |
| 33 | 55-4487 | SCREW - terminal board | 2 | |
| 55-2998 | LOCKWASHER | 2 | ||
| 34 | 55-1385 | SCREW - protector | 2 | |
| 35 | 44-6550 | RESISTOR | 1 | |
| 36 | 99-7579 | BOX - junction | 1 | |
| 37 | 55-5663 | RING - retaining (104-377 & 104-387 alternator) | 1 |
