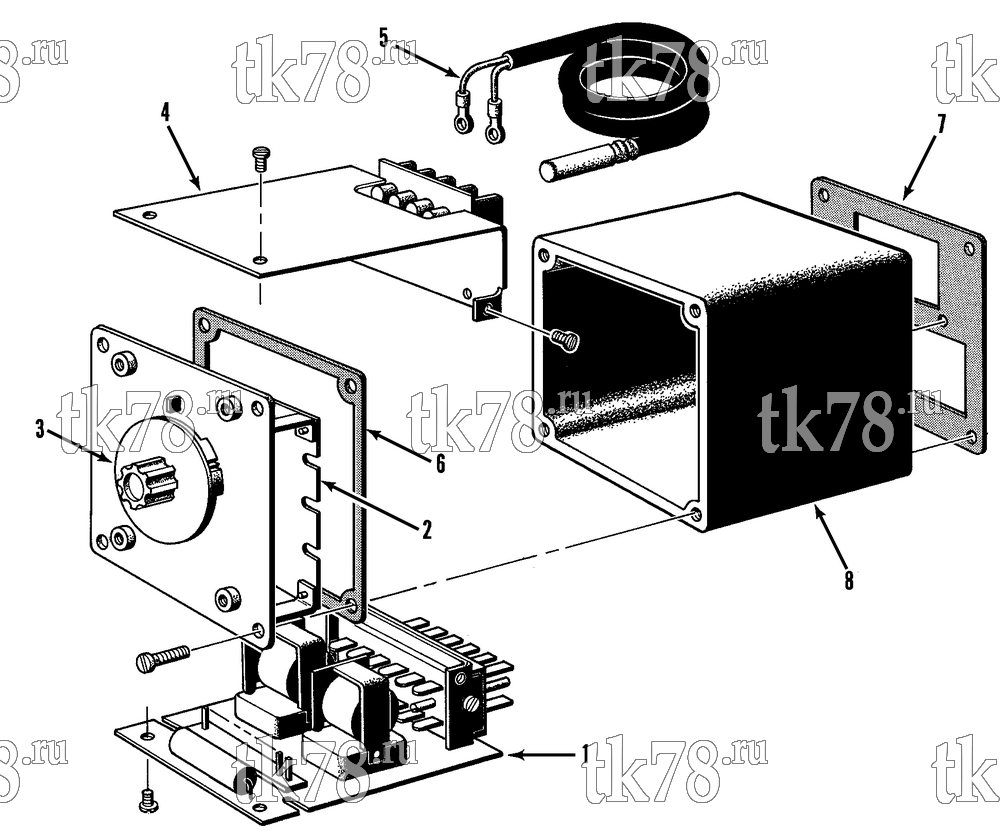

Установкa Thermo King схема THERMOGUARD THERMOSTAT (PE UNITS) – 61D1
Обновление от: 4/7/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 45-1564 | THERMOSTAT - TG III | 1 | ||
| 1 | 44-5817 | RELAY - board module | 1 | |
| 2 | 44-5818 | FRONT - plate module | 1 | |
| 3 | 44-7505 | DIAL - Fahrenheit & Celsius scale | 1 | |
| 4 | 44-5237 | AMPLIFIER - board | 1 | |
| 5 | 44-5234 | LEAD - sensor (111 in lg) | 1 | |
|
10-44-5234 | Сенсор | 14 130 ₽ |
|
| 55-3510 | CLAMP (1/2 dia) | 1 | ||
| 55-547 | CLAMP (3/8 dia) | 1 | ||
| 55-3484 | CLAMP (5/16 dia) | 1 | ||
| 55-1049 | SCREW - clamp | 3 | ||
| 55-5292 | NUT | 3 | ||
| 6 | 33-1429 | GASKET - front | 1 | |
| 7 | 33-1391 | GASKET - rear | 1 | |
| 33-1390 | WICK | 1 | ||
| 8 | 99-6140 | HOUSING | 1 |
