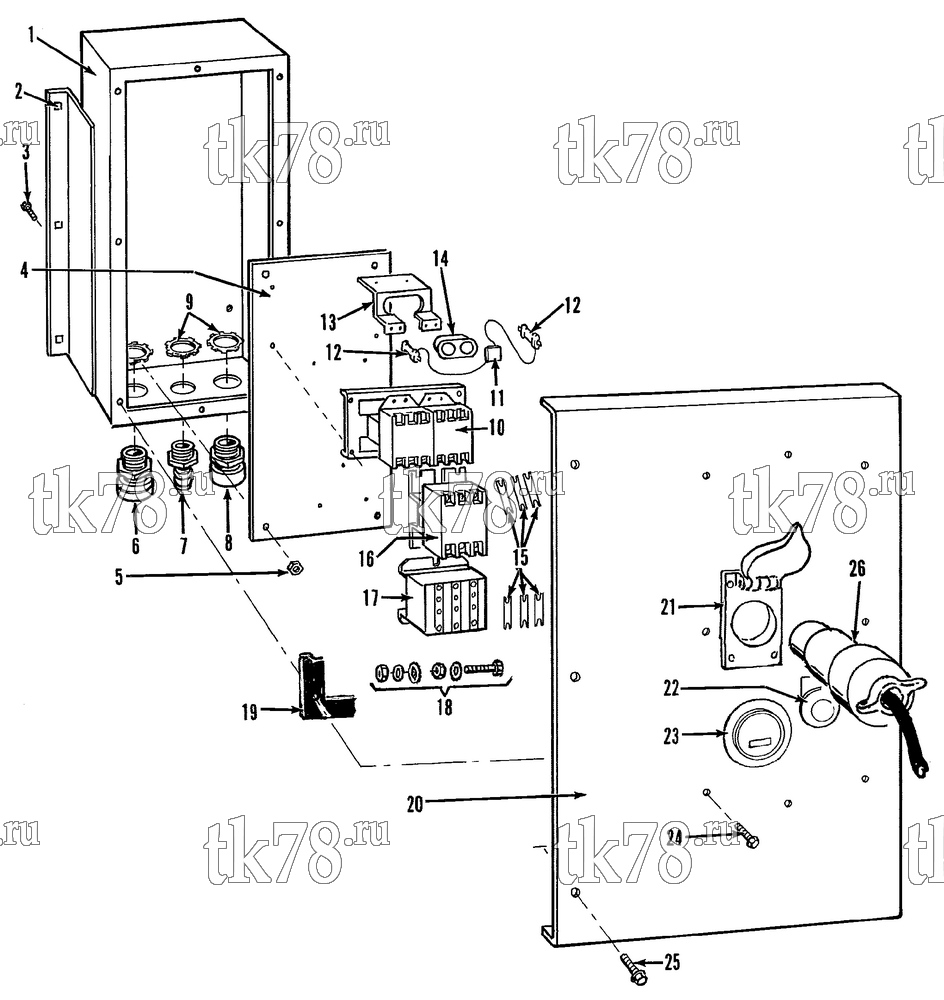

Установкa Thermo King схема HIGH VOLTAGE BOX – 60G9
Обновление от: 10/31/97
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 99-7412 | BOX - high voltage (only) | 1 | |
| 2 | 55-3059 | NUT - captive (box) | 6 | |
| 55-2991 | SCREW - box | 6 | ||
| 55-366 | LOCKWASHER | 6 | ||
| 3 | 55-2977 | SCREW - plate | 4 | |
| 55-411 | FLATWASHER | 8 | ||
| 4 | 99-7413 | PLATE - relays | 1 | |
| 5 | 55-1801 | NUT - plate | 4 | |
| 55-2086 | FLATWASHER | 4 | ||
| 6 | 55-3830 | PLUG | 1 | |
| 44-4272 | GRIP - cable | 1 | ||
| 7 | 33-432 | GROMMET | 1 | |
| 8 | 44-3651 | GRIP - cable | 1 | |
| 9 | 55-2242 | LOCKNUT | 3 | |
| 10 | 44-5753 | CONTACTOR - assembly (complete) | 1 | |
| 44-5752 | CONTACTOR - only | 1 | ||
| 44-4889 | COIL | 1 | ||
| 40-333 | KIT - points | 1 | ||
| 55-3256 | SCREW - contactor | 4 | ||
| 55-3014 | LOCKWASHER | 4 | ||
| 55-3013 | FLATWASHER | 4 | ||
| 11 | 44-6002 | BOARD - phase correction | 1 | |
| 44-5149 | BOARD - circuit (phase correction) | 1 | ||
| 44-3832 | RECTIFIER | 2 | ||
| 12 | 44-4298 | RESISTOR | 2 | |
| 13 | 99-5226 | BRACKET - capacitor & circuit board | 1 | |
| 55-4592 | RIVET - bracket | 4 | ||
| 99-6511 | BRACKET - resistor | 1 | ||
| 14 | 44-4299 | CAPACITOR | 1 | |
| 15 | 44-5845 | JUMPER | 6 | |
| 16 | 44-2853 | CONTACTOR - compressor | 1 | |
| 44-4786 | COIL | 1 | ||
| 40-259 | KIT - points | 3 | ||
| 55-3025 | SCREW - contactor | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 55-2964 | LOCKWASHER | 3 | ||
| 17 | 44-6092 | RELAY - overload (200/3/60) | 1 | |
| 44-6088 | HEATER - relay (200/3/60, set of 3) | 1 | ||
| 44-6081 | HEATER - relay (380/3/60, set of 3) | 1 | ||
| 55-2989 | SCREW - relay | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 18 | 55-3000 | SCREW - ground | 1 | |
| 55-3496 | LOCKWASHER | 1 | ||
| 55-2996 | LOCKWASHER (ss) | 2 | ||
| 55-2001 | FLATWASHER (stainless steel) | 2 | ||
| 55-2965 | NUT (stainless steel) | 2 | ||
| 19 | 33-1557 | GASKET - cover | 1 | |
| 20 | 98-2560 | COVER - high voltage box | 1 | |
| 21 | 41-1817 | RECEPTACLE - power | 1 | |
| 55-3022 | SCREW - receptacle | 4 | ||
| 55-3429 | FLATWASHER | 4 | ||
| 55-4223 | NUT | 4 | ||
| 99-7834 | NAMEPLATE - Caution | 1 | ||
| 99-3195 | NAMEPLATE - 208/230 Volt | 1 | ||
| 99-6907 | NAMEPLATE - 380/460 Volt | 1 | ||
| 22 | 44-4613 | BUTTON - reset | 1 | |
| 23 | 44-5585 | HOURMETER | 1 | |
| 55-3256 | SCREW - hourmeter | 3 | ||
| 55-3014 | LOCKWASHER | 3 | ||
| 55-5754 | NUT | 3 | ||
| 24 | 55-3000 | SCREW - cover to box | 8 | |
| 55-2001 | FLATWASHER | 8 | ||
| 55-4742 | FLATWASHER | 8 | ||
| 25 | 55-1587 | SCREW - cover | 6 | |
| 55-2964 | LOCKWASHER | 3 | ||
| 26 | 41-1816 | RECEPTACLE - power (200/3/60) | 1 | |
| 44-4700 | RECEPTACLE - power (380-460/3/50-60) | 1 |
