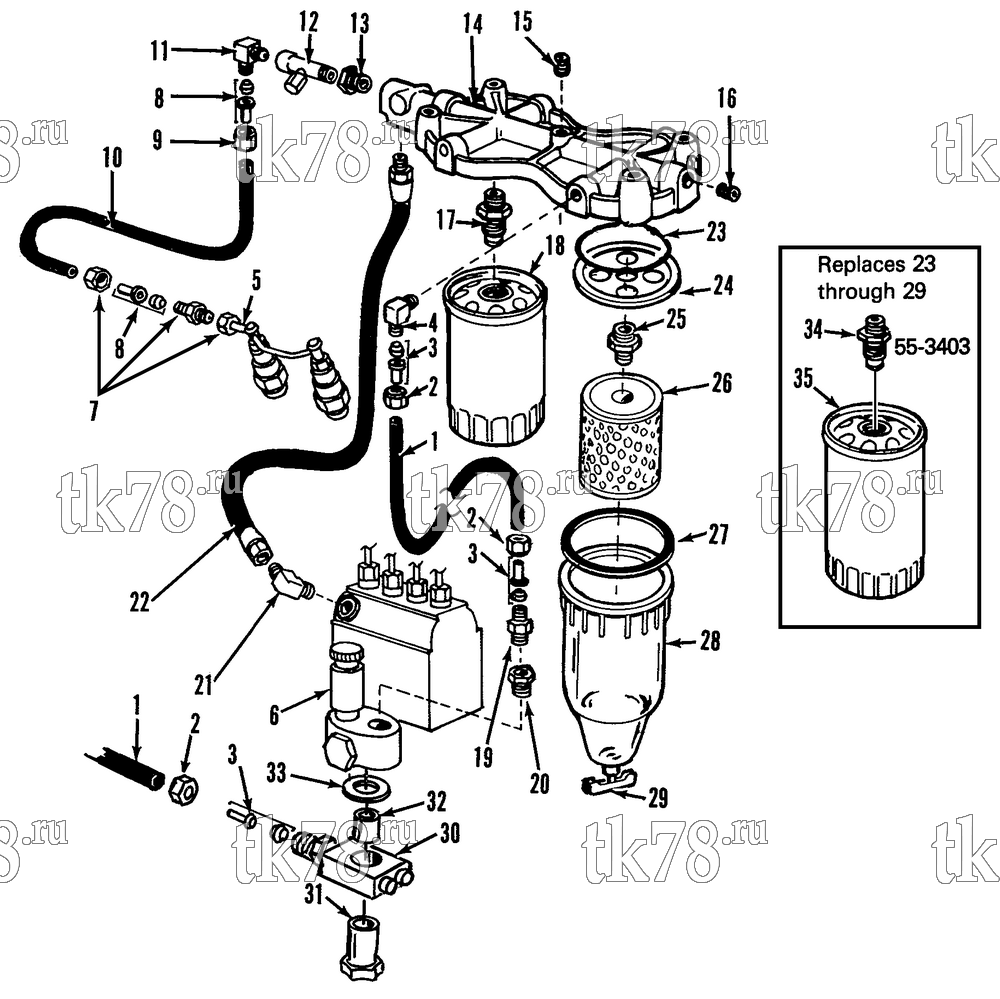

Установкa Thermo King схема FUEL FILTERS & HOSES (SB-I 2000 & EMI UNITS) – 60C4
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-4372 | HOSE (3/8 od x 35 ft lg) | A/R | |
| 2 | 11-4941 | NUT - hose fitting (3/8) | 3 | |
| 3 | 10-242 | KIT - sleeve & eyelet (3/8) | 3 | |
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 4 | 11-4380 | ELBOW | 1 | |
|
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 5 | 11-5324 | LINE - fuel return | 1 | |
| 6 | 11-9725 | PUMP - priming | 1 | |
|
10-11-8680 | Помпа подкачки топлива ТННД | 1 450 ₽ |
|
| PP-11-5895 | Помпа подкачки топлива ТННД | 640 ₽ |
|
|
| 7 | 11-6496 | FITTING - hose (5/16 x 1/4) | 1 | |
| 8 | 10-243 | KIT - sleeve & eyelet (1/4) | 2 | |
| 9 | 11-4841 | NUT - fuel hose (1/4) | 2 | |
| 10 | 11-4367 | HOSE (1/4 od x 35 ft lg) | A/R | |
| 11 | 11-5320 | ELBOW - hose fitting (1/4) | 1 | |
| 12 | 11-5321 | TEE (1/4) | 1 | |
| 13 | 55-4799 | BUSHING | 1 | |
| 14 | 11-6528 | BRACKET - filter | 1 | |
| 55-201 | SCREW - bracket | 4 | ||
| 55-4967 | LOCKNUT | 4 | ||
| 15 | 55-433 | PLUG - pipe | 1 | |
| 16 | 55-193 | PLUG - pipe | 1 | |
| 17 | 55-3168 | ADAPTER - fuel pickup | 1 | |
| 18 | 11-9103 | FILTER - fuel (secondary) | 1 | |
| 19 | 55-4515 | CONNECTOR - hose fitting | 2 | |
| 20 | 11-4381 | BUSHING | 1 | |
| 21 | 55-3331 | ELBOW | 1 | |
| 22 | 11-5334 | HOSE - filter to injection pump | 1 | |
| 23 | 33-1551 | O-RING | 1 | |
| 24 | 11-5540 | ADAPTER - fuel filter | 1 | |
| 25 | 55-5539 | ADAPTER - fuel pickup | 1 | |
| 26 | 11-5524 | FILTER - fuel (primary) | 1 | |
| 27 | 33-1552 | O-RING | 1 | |
| 28 | 11-5541 | BOWL - fuel filter | 1 | |
| 29 | 55-2158 | DRAIN COCK | 1 | |
| 30 | 11-5542 | BLOCK - fuel | 1 | |
| 55-433 | PLUG | 2 | ||
| 55-4515 | CONNECTOR - hose | 1 | ||
| 31 | 55-5524 | BOLT - hollow (block) | 1 | |
| 32 | 11-2854 | FILTER - screen | 1 | |
| 33 | 55-1922 | WASHER | 2 | |
|
10-55-1922 | Уплотнтель WASHER, PIPE JOINT | 690 ₽ |
|
| 34 | 55-3403 | ADAPTER - fuel pickup | 1 | |
| 35 | 11-9102 | FILTER - fuel (primary) | 1 |
