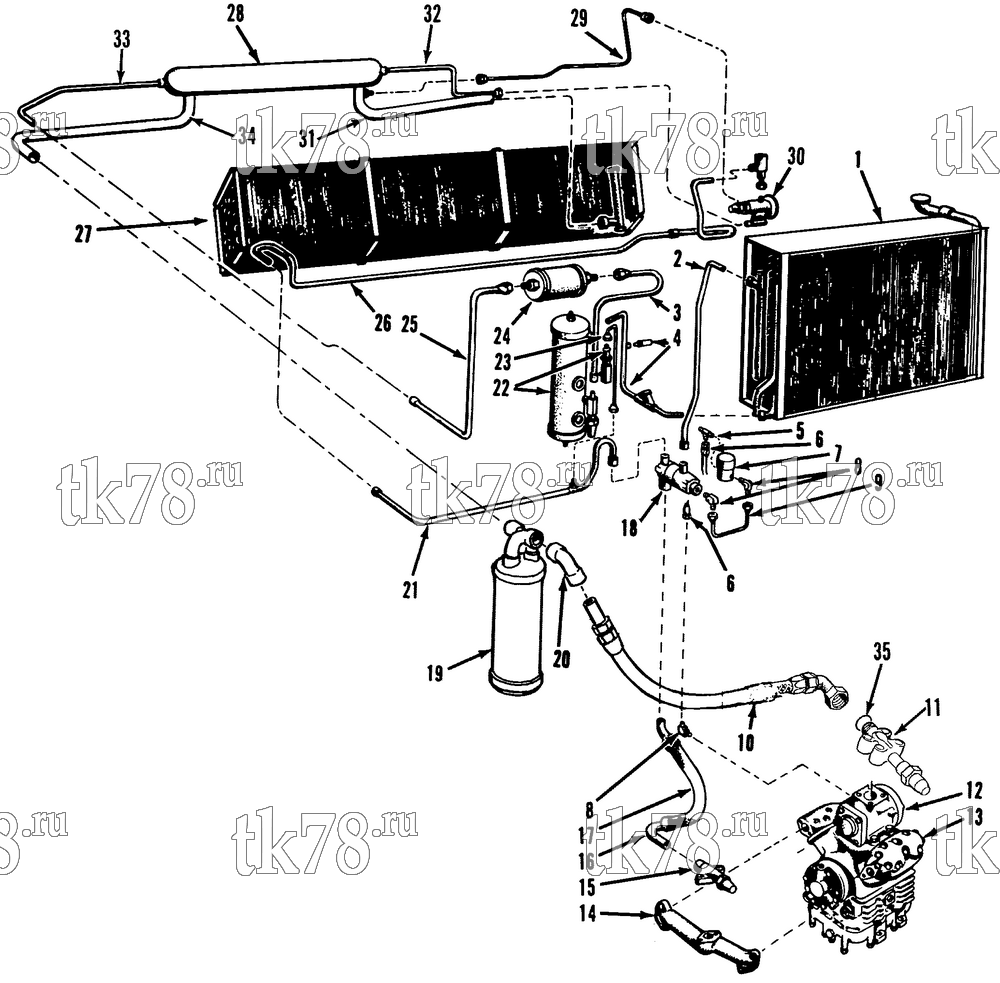

Установкa Thermo King схема REFRIGERATION COMPONENTS – 60C13
Обновление от: 2/20/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-737 | COIL - condenser (see 60D1) | 1 | |
| 2 | 66-3901 | TUBE - 3-way to condenser coil | 1 | |
| 66-2672 | ADAPTER | 1 | ||
| 3 | 66-3151 | TUBE - receiver to drier | 1 | |
| 4 | 66-3902 | TUBE - check valve to receiver | 1 | |
| 66-3655 | VALVE - check (see 9G12) | 1 | ||
| 55-3295 | FITTING - saddle | 1 | ||
| 66-7392 | VALVE - relief (high pressure) | 1 | ||
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING - valve | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 66-3908 | TUBE - coil to valve | 1 | ||
| 55-3026 | CLAMP - tube | 1 | ||
| 55-1230 | SCREW - clamp | 1 | ||
| 55-5292 | NUT | 1 | ||
| 5 | 55-1117 | TEE | 1 | |
| 6 | 66-887 | HOSE - solenoid to compressor | 1 | |
| 7 | 66-2009 | VALVE - pilot solenoid | 1 | |
|
10-66-2009 | Управляющий клапан, KD/MD/TD/RD-II / SB-I/II/III | 18 500 ₽ |
|
| 44-3803 | COIL - solenoid (3/8 bore) | 1 | ||
| 41-1525 | COIL - valve (7/16 bore, see Parts Bulletin 774) | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 55-1339 | SCREW - solenoid | 2 | ||
| 55-715 | LOCKWASHER | 2 | ||
| 55-8786 | NUT - valve | 1 | ||
| 8 | 55-308 | ELBOW | 3 | |
| 9 | 66-3148 | TUBE - 3-way to solenoid valve | 1 | |
| 10 | 66-4262 | VIBRASORBER - suction (before 5/85) | 1 | |
| 66-3236 | VIBRASORBER - suction (5/85 & after) | 1 | ||
| 66-3253 | VIBRASORBER - suction (R502) | 1 | ||
| 11 | 66-4546 | VALVE - suction (see 59B4) | 1 | |
|
10-66-4546 | Резьбовой клапан (Threaded Service Valve) | 15 910 ₽ |
|
| 12 | 66-5933 | VALVE - throttling (see 9E12) | 1 | |
| 13 | NSS | COMPRESSOR - X426 C5 (subassembly, see 75A9) | 1 | |
| N/A | COMPRESSOR - X430 (see 72A12) | 1 | ||
| 20-123 | KIT - remote oil filter | 1 | ||
| 14 | 22-749 | MANIFOLD - discharge (X426) | 1 | |
| 22-660 | MANIFOLD - compressor (X430) | 1 | ||
|
10-22-660 | Коллектор компрессора X430 | 29 550 ₽ |
|
| 15 | 66-129 | VALVE - discharge (see 59B4) | 1 | |
|
10-66-129 | Сервисный вентиль, X426/430 | 22 340 ₽ |
|
| 16 | 66-1332 | TUBE - valve to vibrasorber | 1 | |
| 17 | 66-1224 | VIBRASORBER - discharge | 1 | |
|
10-66-1224 | Вибросорбер нагнетания, SB-I/II | 11 620 ₽ |
|
| 18 | 66-3633 | VALVE - 3-way (see 60E6) | 1 | |
| 19 | 67-593 | TANK - accumulator (see 60D1) | 1 | |
| 20 | 55-5263 | ELBOW | 1 | |
| 21 | 66-3152 | TUBE - 3-way to defrost | 1 | |
| 66-874 | FITTING | 1 | ||
| 22 | 67-319 | TANK - receiver (see 60C12) | 1 | |
| 66-3903 | TUBE - outlet | 1 | ||
| 55-2299 | BUSHING - inlet | 1 | ||
| 66-5501 | VALVE - check | 1 | ||
| 23 | 66-3147 | TUBE | 1 | |
| 24 | 66-4729 | DEHYDRATOR | 1 | |
|
10-66-4729 | Дегидратор, SB-I/II/III | 3 890 ₽ |
|
| 25 | 66-3149 | TUBE - drier to heat exchanger | 1 | |
| 26 | 67-562 | TUBE - defrost | 1 | |
| 27 | 67-592 | COIL - evaporator | 1 | |
| 28 | 67-610 | HEAT EXCHANGER (incl 31 thru 34) | 1 | |
| 67-2491 | HEAT EXCHANGER (first tube out) | 1 | ||
| 67-765 | TANK - only | 1 | ||
| 29 | 66-3146 | TUBE - equalizer line | 1 | |
| 30 | 66-820 | VALVE - expansion (R12, see 60D1) | 1 | |
| 66-633 | ELEMENT - power | 1 | ||
| 66-3592 | SCREEN - inlet | 1 | ||
| 66-2587 | VALVE - expansion (R502) | 1 | ||
| 66-3650 | ELEMENT - power | 1 | ||
| 66-3592 | SCREEN - inlet | 1 | ||
| 31 | 66-3904 | TUBE - suction | 1 | |
| 32 | 66-3905 | TUBE - exchanger to expansion | 1 | |
| 33 | 66-3906 | TUBE - dehydrator to exchanger | 1 | |
| 34 | 66-3907 | TUBE - exchanger to accumulator | 1 | |
| 35 | 33-230 | O-RING - vibrasorber (1.875 id) | 1 | |
|
10-33-230 | О-ринг сервисного клапана, X418/426/430/640 | 380 ₽ |
|
| PP-33-230 | О-ринг сервисного клапана, X418/426/430/640 | 220 ₽ |
|
