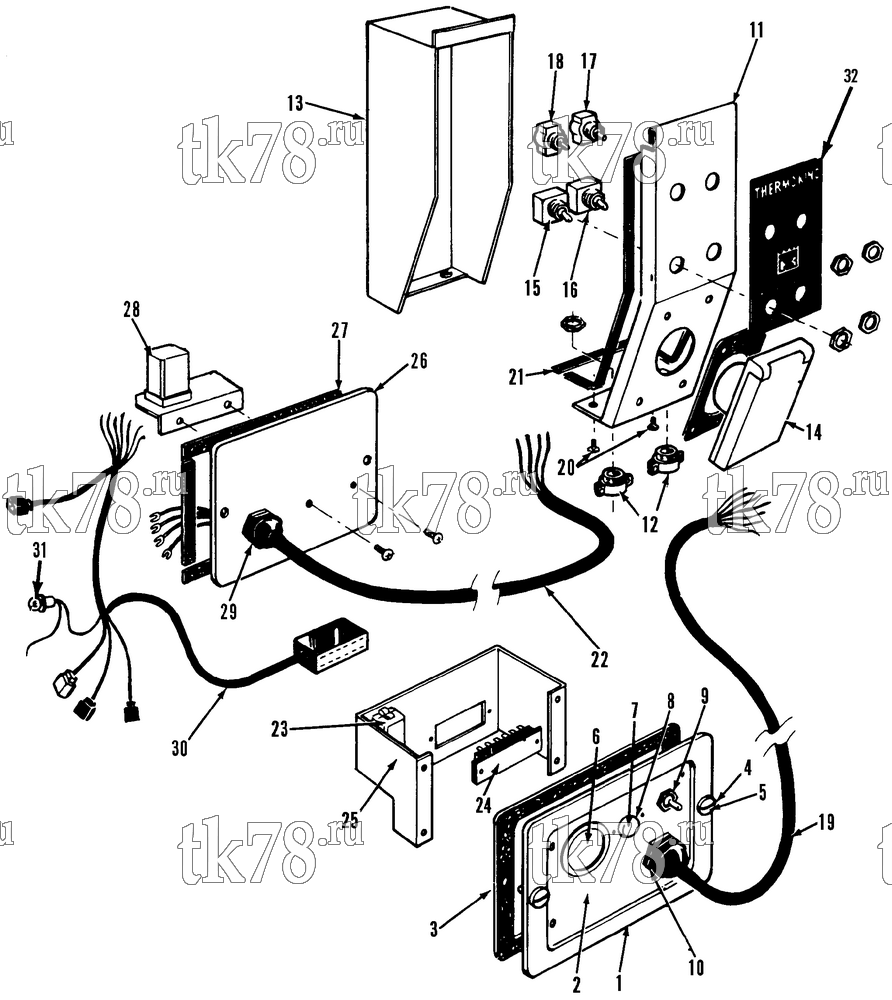

Установкa Thermo King схема PANEL REMOTE (MD 50 230V UE) – 60A9
Обновление от: 8/2/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 99-7500 | PANEL - remote switch | 1 | |
| 2 | 99-7501 | NAMEPLATE - panel | 1 | |
| 3 | 33-743 | GASKET - panel | 1 | |
| 4 | 55-2977 | SCREW - panel | 2 | |
| 5 | 55-4510 | WASHER - retaining | 2 | |
| 6 | 44-3258 | AMMETER | 1 | |
| 44-3258 OEM | Амперметр, KD/MD/RD/TD-II / SB-II/III | 2 400 ₽ |
|
|
| 44-3516 | BREAKER - circuit | 1 | ||
|
30-44-3516 | Предохранитель 30А | 1 090 ₽ |
|
| 44-3182 | JUMPER - switch | 1 | ||
| 7 | 40-1082 | SWITCH - cutout | 1 | |
|
10-44-7774 | Тепловой предохранитель, SB-I/II/III / SMX | 12 430 ₽ |
|
| 44-1556 | RESISTOR (50 ohm) | 1 | ||
|
10-44-1556 | Резистор теплового реле, 12V 5Ω | 1 230 ₽ |
|
| 8 | 44-2119 | SEAL - pushbutton | 1 | |
| 55-1844 | SCREW - switch | 2 | ||
| 55-3800 | LOCKWASHER (internal tooth) | 2 | ||
| 9 | 44-1357 | SWITCH - on/off | 1 | |
|
10-44-1357 | Выключатель однополюсный | 4 400 ₽ |
|
| PP-44-1357 | Выключатель однополюсный | 2 000 ₽ |
|
|
| 10 | 55-5257 | CONNECTOR - liquid tite | 1 | |
| 11 | 99-7505 | COVER - remote box | 1 | |
| 99-6908 | NAMEPLATE - Volt | 1 | ||
| 12 | 55-3831 | CONNECTOR (3/4 id) | 2 | |
| 13 | 99-7054 | BOX - control | 1 | |
| 14 | 44-4656 | RECEPTACLE (20 amp) | 1 | |
| 55-3511 | SCREW - receptacle | 4 | ||
| 55-5077 | NUT | 4 | ||
| 15 | 44-490 | SWITCH - diesel/electric | 1 | |
|
10-44-490 | Выключатель | 2 590 ₽ |
|
| 16 | 44-3183 | SWITCH - start/preheat | 1 | |
|
10-44-3183 | Переключатель старт - прогрев, SB-I/II/III | 6 500 ₽ |
|
| 17 | 44-1357 | SWITCH - on/off | 1 | |
|
|
10-44-1357 | Выключатель однополюсный | 4 400 ₽ |
|
| PP-44-1357 | Выключатель однополюсный | 2 000 ₽ |
|
|
| 18 | 44-1164 | SWITCH - manual defrost | 1 | |
|
P-10-01129-01 | Выключатель разморозки, Genesis/Thunderbird | 2 890 ₽ |
|
|
10-44-1164 | Выключатель размораживания, JD/KD/MD/RD/TD-I/II / SB-I/II/III | 2 890 ₽ |
|
| 19 | 44-6244 | CABLE - power | 1 | |
| 20 | 55-2995 | SCREW - box | 2 | |
| 21 | 99-4976 | STRIP - gasket (cover, bulk) | A/R | |
| 22 | 44-6245 | HARNESS - panel | 1 | |
| 23 | 44-3186 | RELAY (3pdt) | 1 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 44-3184 | SOCKET - relay | 1 | ||
| 55-3588 | RIVET - blind | 2 | ||
| 44-5763 | DIODE | 2 | ||
| 55-2771 | CLAMP - relay | 1 | ||
| 99-2027 | SPRING - holddown (relay) | 1 | ||
| 24 | 44-5227 | PLUG (12 contact) | 1 | |
|
10-44-5227 | Разъем, 12 контактов | 3 250 ₽ |
|
| 99-5316 | BRACKET - shallow (connecting) | 1 | ||
| 55-2270 | RIVET - blind | 2 | ||
| 25 | 99-2026 | BRACKET - panel | 1 | |
| 55-1683 | NUT - speed | 4 | ||
| 55-2995 | SCREW - panel | 4 | ||
| 55-103 | SCREW - bracket | 2 | ||
| 55-401 | FLATWASHER | 6 | ||
| 55-1852 | LOCKWASHER | 6 | ||
| 55-346 | NUT | 6 | ||
| 33-415 | GROMMET | 1 | ||
| 44-6248 | CONNECTOR - electric | 1 | ||
| 55-3571 | RIVET - blind | 4 | ||
| 55-2991 | SCREW - bracket | 4 | ||
| 55-5256 | FLATWASHER | 4 | ||
| 55-5656 | SCREW - harness | 12 | ||
| 55-570 | CLAMP - harness | 12 | ||
| 26 | 44-6250 | COVER - high voltage | 1 | |
| 27 | 99-4976 | STRIP - gasket (cover, bulk) | A/R | |
| 28 | 44-3186 | RELAY (3pdt) | 2 | |
|
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 55-736 | SCREW - relay | 2 | ||
| 55-4560 | NUT | 2 | ||
| 29 | 55-5257 | CONNECTOR - liquid tite | 1 | |
| 30 | 44-6246 | HARNESS - thermostat | 1 | |
| 44-4925 | CONNECTOR - electric | 1 | ||
| 44-5600 | CONNECTOR - electric | 1 | ||
| 99-6993 | BRACKET - relay (2) | 1 | ||
| 41-6310 | SOCKET - indicator light | 1 | ||
| 44-5654 | TERMINAL - bulb | 1 | ||
| 44-3184 | SOCKET - relay | 1 | ||
| 99-2027 | SPRING - holddown | 1 | ||
| 44-5220 | COVER - connector | 1 | ||
| 44-5310 | CONNECTOR (10 amp) | 1 | ||
| 55-103 | SCREW - harness connector | 2 | ||
| 55-2262 | RIVET - blind | 3 | ||
| 44-5827 | CONNECTOR - electric | 1 | ||
| 55-2771 | CLAMP - speednut | 1 | ||
| 44-6247 | CONNECTOR | 1 | ||
| 31 | 44-3035 | BULB - light | 1 | |
| 32 | 99-7516 | NAMEPLATE - cover | 1 |
