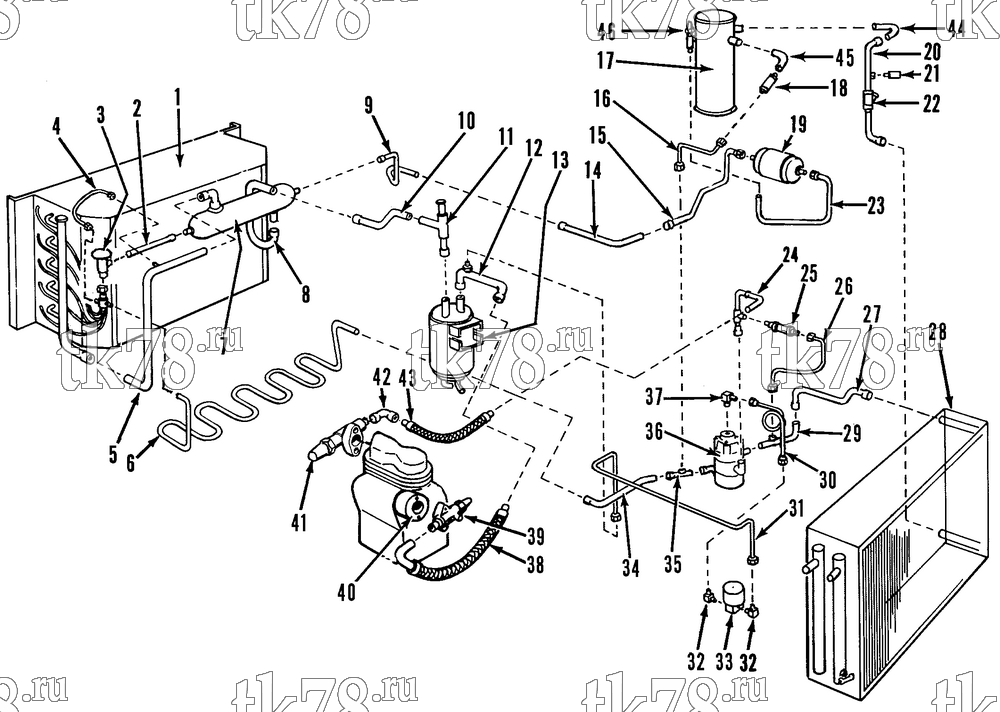

Установкa Thermo King схема REFRIGERATION COMPONENTS – 59G9
Обновление от: 2/12/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-683 | COIL - evaporator | 1 | |
| 2 | 66-3861 | TUBE - exchanger | 1 | |
| 55-3247 | BUSHING - tube | 1 | ||
| 3 | 66-3862 | VALVE - expansion (R12) | 1 | |
| 61-811 | SCREEN - inlet | 1 | ||
| 66-3464 | VALVE - expansion (R502) | 1 | ||
| 66-7169 | ELEMENT - power | 1 | ||
| 61-811 | SCREEN - inlet | 1 | ||
| 4 | 66-4590 | TUBE - equalizer | 1 | |
| 5 | 66-4641 | TUBE - coil to exchanger | 1 | |
| 6 | 67-684 | TUBE - defrost | 1 | |
| 99-3094 | CHANNEL - tube | 1 | ||
| 7 | 67-1394 | HEAT EXCHANGER | 1 | |
| 7 | 67-749 | HEAT EXCHANGER | 1 | |
| 99-5833 | BRACKET - heat exchanger | 1 | ||
| 99-5834 | SPACER - bracket | 2 | ||
| 99-5835 | BOLTSTRIP - bracket | 2 | ||
| 55-790 | LOCKWASHER | 4 | ||
| 55-4967 | LOCKNUT | 4 | ||
| 8 | 66-4368 | TUBE - exchanger | 1 | |
| 9 | 66-3284 | TUBE - cpr valve | 1 | |
| 10 | 66-3864 | TUBE - cpr to bulkhead | 1 | |
| 11 | 66-1180 | VALVE - pressure regulator | 1 | |
| 12 | 66-3297 | TUBE - accumulator | 1 | |
| 13 | 67-583 | TANK - accumulator (R12) | 1 | |
| 67-810 | TANK - accumulator (R502) | 1 | ||
| 14 | 66-3865 | TUBE - dehydrator to exchanger | 1 | |
| 15 | 66-3866 | TUBE - dehydrator to exchanger | 1 | |
| 55-547 | CLAMP - tube | 1 | ||
| 55-1049 | SCREW - clamp | 1 | ||
| 55-5292 | NUT | 1 | ||
| 16 | 66-3866 | TUBE - receiver to 3-way | 1 | |
| 17 | 67-1189 | TANK - receiver | 1 | |
|
10-67-1189 | Бак фреона, KD/MD/RD/TD/URD | 16 670 ₽ |
|
| 55-5078 | NUT - tank | 2 | ||
| 55-402 | FLATWASHER | 2 | ||
| 99-7297 | BRACKET - receiver | 1 | ||
| 55-145 | SCREW - bracket | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 55-411 | FLATWASHER | 2 | ||
| 18 | 66-5501 | VALVE - check | 1 | |
| 19 | 66-814 | DEHYDRATOR | 1 | |
|
10-66-814 | Дегидратор, KD/MD/RD-II | 5 700 ₽ |
|
| 99-7298 | BRACKET - dehydrator | 1 | ||
| 99-4311 | BOLTSTRIP | 2 | ||
| 55-2260 | RIVET - boltstrip | 4 | ||
| 55-145 | SCREW - bracket | 1 | ||
| 99-465 | BRACKET - dehydrator | 1 | ||
| 55-4118 | NUT | 4 | ||
| 99-4326 | PAD (rubber) | 1 | ||
| 20 | 66-3868 | TUBE - coil to receiver | 1 | |
| 21 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 22 | 60-158 | KIT - check valve repair | 1 | |
| 55-8786 | NUT - valve | 1 | ||
| 23 | 66-3869 | TUBE - dehydrator receiver | 1 | |
| 24 | 66-3870 | TUBE - discharge to 3-way | 3 | |
| 25 | 66-5501 | VALVE - check | 1 | |
| 26 | 66-3871 | TUBE - 3-way | 1 | |
| 27 | 66-3872 | TUBE - coil to 3-way | 1 | |
| 28 | 67-687 | COIL - condenser | 1 | |
| 29 | 66-3873 | TUBE - 3-way to condenser | 1 | |
| 30 | 66-1810 | TUBE | 1 | |
| 31 | 66-3874 | TUBE - solenoid to accumulator | 1 | |
| 55-546 | CLAMP - tube | 1 | ||
| 32 | 55-4489 | ELBOW | 2 | |
| 33 | 66-2009 | VALVE - pilot solenoid (12V) | 1 | |
|
10-66-2009 | Управляющий клапан, KD/MD/TD/RD-II / SB-I/II/III | 18 500 ₽ |
|
| 44-3803 | COIL - pilot solenoid | 1 | ||
| 55-1384 | SCREW - valve | 2 | ||
| 55-5761 | LOCKWASHER | 2 | ||
| 55-406 | FLATWASHER | 2 | ||
| 55-8786 | NUT - valve | 1 | ||
| 34 | 66-3875 | TUBE - 3-way to evaporator | 1 | |
| 35 | 66-3876 | TUBE - 3-way to defrost | 1 | |
| 36 | 66-3635 | VALVE - 3-way (see 59G11) | 1 | |
| 37 | 55-308 | ELBOW | 1 | |
| 38 | 66-1784 | VIBRASORBER - suction | 1 | |
| 39 | 66-8186 | VALVE - suction (see 25C13) | 1 | |
| 40 | 22-646 | ADAPTER - suction valve | 1 | |
| 41 | 22-188 | VALVE - discharge (see 25C14) | 1 | |
|
10-22-188 | Клапан, Discharge | 8 260 ₽ |
|
| 42 | 66-1807 | ELBOW - discharge | 1 | |
| 43 | 66-1584 | VIBRASORBER - discharge | 1 | |
| 99-4586 | BRACKET - vibrasorber | 1 | ||
| 55-145 | SCREW - bracket | 1 | ||
| 55-411 | FLATWASHER | 2 | ||
| 55-4118 | NUT | 2 | ||
| 55-5920 | U-BOLT | 1 | ||
| 55-431 | FLATWASHER | 2 | ||
| 55-5292 | NUT | 2 | ||
| 44 | 66-4367 | TUBE - receiver tank | 1 | |
| 45 | 55-5422 | ELBOW | 1 | |
| 46 | 66-3025 | VALVE | 1 | |
| 47 | 55-1122 | ELBOW | 1 |
