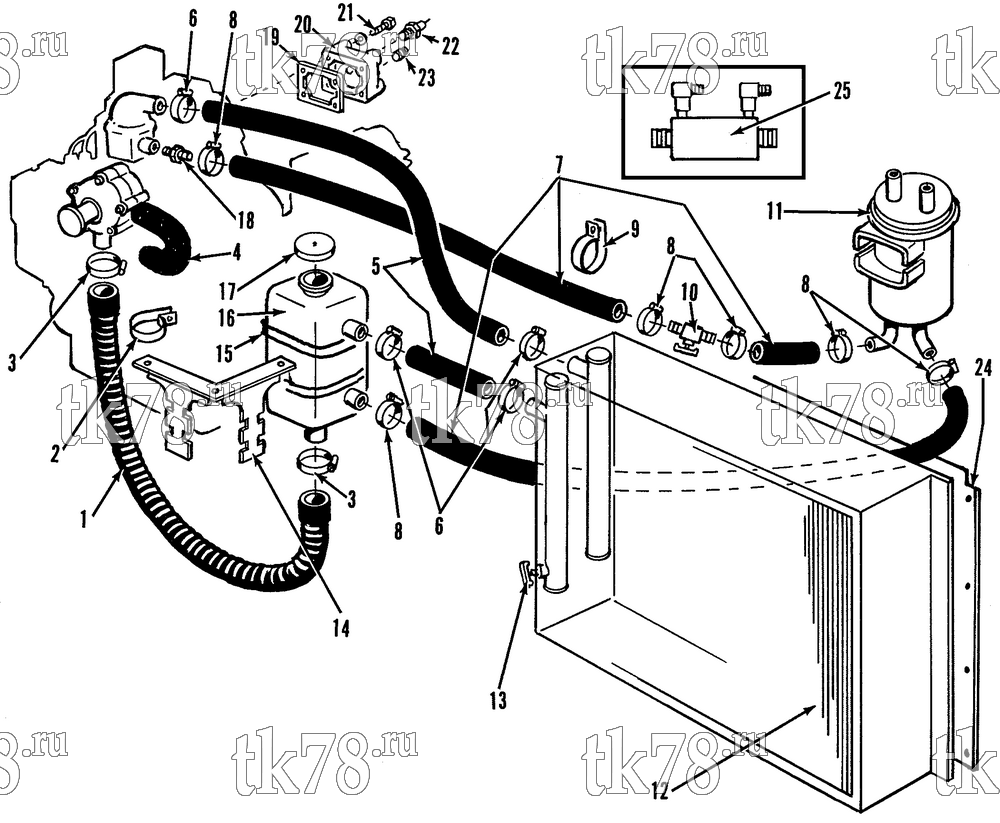

Установкa Thermo King схема ENGINE COOLING SYSTEM – 59G4
Обновление от: 2/12/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-3169 | HOSE - engine to overflow tank | 1 | |
| 2 | 55-5274 | CLAMP - hose | 1 | |
| 3 | 55-558 | CLAMP - hose | 2 | |
| 4 | 11-5046 | HOSE - bypass (EPDM) | 1 | |
| 11-5238 | HOSE - bypass (silicone) | 1 | ||
| 55-3402 | CLAMP - hose (silicone) | 2 | ||
| 5 | 98-2527 | HOSE - water (25 ft) | A/R | |
| 12-419 | HOSE - water (silicone, 25 ft) | A/R | ||
| 6 | 55-5002 | CLAMP - hose | 5 | |
| 7 | 12-383 | HOSE (25 ft, EPDM) | A/R | |
| 12-383 | HOSE (25 ft, silicone) | A/R | ||
| 8 | 99-3639 | CLAMP - hose | 6 | |
| 9 | 55-4866 | CLAMP - hose | 2 | |
| 55-145 | SCREW - clamp | 2 | ||
| 55-4118 | NUT | 2 | ||
| 10 | 11-5561 | TUBE - drain cock | 1 | |
| 55-4957 | COCK - drain | 1 | ||
| 11 | 67-583 | TANK - accumulator (R12) | 1 | |
| 67-810 | TANK - accumulator (R502) | 1 | ||
| 55-826 | SCREW - tank | 4 | ||
| 55-4118 | NUT | 4 | ||
| 55-145 | SCREW - bracket | 2 | ||
| 55-4118 | NUT | 2 | ||
| 12 | 67-687 | COIL - condenser | 1 | |
| 55-145 | SCREW - coil | 8 | ||
| 55-366 | LOCKWASHER | 8 | ||
| 55-411 | FLATWASHER | 8 | ||
| 13 | 55-2158 | COCK - drain | 1 | |
| 203-393 | SEALER - thread | A/R | ||
| 14 | 99-7309 | BRACKET - overflow tank (before 3/86) | 1 | |
| 99-9411 | BRACKET - overflow tank (3/86 & after) | 1 | ||
| 55-145 | SCREW - bracket | 3 | ||
| 55-411 | FLATWASHER | 6 | ||
| 55-4118 | NUT | 3 | ||
| 15 | 55-5921 | CLAMP - tank | 2 | |
| 16 | 11-5552 | TANK - overflow | 1 | |
| 17 | 11-9242 | CAP - radiator | 1 | |
|
10-11-9242 | Крышка радиатора 10 LBS | 2 370 ₽ |
|
| 18 | 11-4984 | ADAPTER | 1 | |
| 55-1840 | ELBOW - adapter | 1 | ||
| 19 | 33-1380 | GASKET - cover | 1 | |
| 20 | 11-5066 | MANIFOLD | 1 | |
| 21 | 55-5801 | SCREW | 4 | |
| 55-5801 | SCREW | 1 | ||
| 55-4613 | WASHER | 4 | ||
| 22 | 44-3018 | SWITCH - water temperature | 1 | |
|
10-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 5 830 ₽ |
|
| PP-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 2 200 ₽ |
|
|
| 23 | 55-579 | PLUG | 1 | |
| 24 | 98-2534 | ORIFICE - condenser | 1 | |
| 55-145 | SCREW - orifice | 9 | ||
| 55-405 | WASHER - dome | 9 | ||
| 99-7307 | NUTSTRIP - orifice | 1 | ||
| 99-6901 | NUTSTRIP - orifice | 1 | ||
| 99-5784 | PLATE - holddown | 1 | ||
| 25 | 10-253 | KIT - fuel heater | 1 | |
| 55-2537 | HANGER - warmer | 1 | ||
| 55-101 | SCREW - hanger | 1 | ||
| 55-4118 | NUT | 1 |
