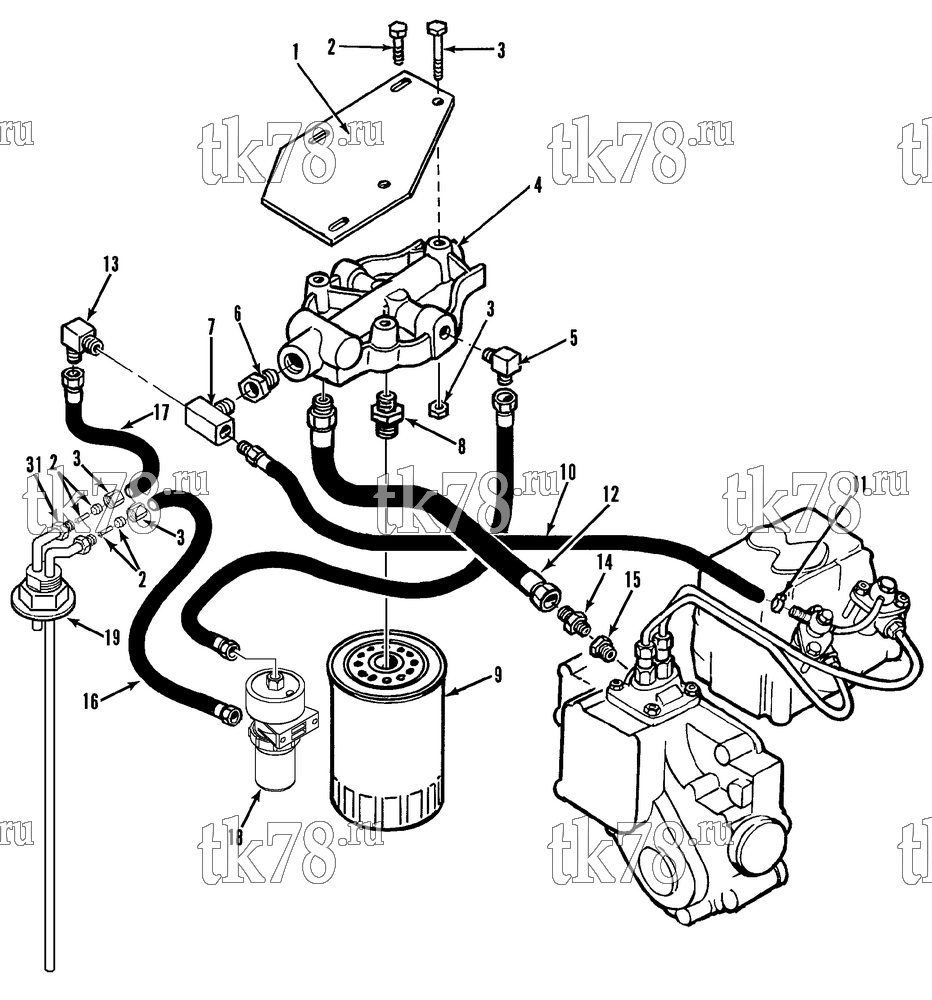

Установкa Thermo King схема FUEL FILTER & HOSES – 59G2
Обновление от: 4/26/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 99-7305 | PLATE - fuel filter | 1 | |
| 2 | 55-826 | SCREW - plate | 2 | |
| 55-411 | FLATWASHER | 2 | ||
| 55-4118 | LOCKNUT | 2 | ||
| 3 | 55-153 | SCREW - bracket | 2 | |
| 55-790 | LOCKWASHER | 2 | ||
| 55-371 | FLATWASHER | 6 | ||
| 55-4967 | NUT | 2 | ||
| 4 | 11-6529 | BRACKET - filter | 1 | |
| 5 | 11-4380 | ELBOW | 1 | |
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 6 | 55-4799 | BUSHING | 1 | |
| 7 | 55-1654 | TEE | 1 | |
| 8 | 55-3168 | ADAPTER - fuel pickup | 1 | |
| 9 | 11-9098 | FILTER - fuel | 1 | |
|
11-9341 OEM | Фильтр топливный EMI 2000, MD/RD/KD/T-Series | 2 680 ₽ |
|
|
US-11-9341 | Фильтр топливный, MD/RD/KD/T-Series | 1 840 ₽ |
|
|
10-11-9341 | Фильтр топливный, MD/RD/KD/T-Series | 1 090 ₽ |
|
| 10 | 11-5337 | HOSE - fuel | 1 | |
| 11 | 55-2796 | CLAMP - hose | 1 | |
| 12 | 11-5233 | HOSE - filter to injection pump | 1 | |
| 13 | 11-5320 | ELBOW | 1 | |
| 14 | 55-2779 | COUPLING | 1 | |
| 15 | 11-5222 | ADAPTER | 1 | |
| 16 | 11-4372 | HOSE (3/8 od x 35 ft lg) | A/R | |
| 10-242 | KIT - sleeve & eyelet (3/8) | A/R | ||
|
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 11-4941 | NUT - hose (3/8) | A/R | ||
| 17 | 11-4367 | HOSE (1/4 od x 35 ft lg) | A/R | |
| 10-243 | KIT - sleeve & eyelet (1/4, incl 22) | A/R | ||
| 11-4841 | NUT (1/4) | A/R | ||
| 18 | 41-7059 | PUMP - fuel (12V) | 1 | |
|
30-66840-00 OEM | Топливный насос подкачки | 22 450 ₽ |
|
|
US-41-7059 | Топливный насос подкачки | 19 340 ₽ |
|
| P-30-01108-12 | Топливный насос подкачки, HP | 8 390 ₽ |
|
|
|
10-41-7059-HP | Топливный насос подкачки, HP | 7 920 ₽ |
|
| 10-376 | KIT - filter (diesel) | 1 | ||
| 10-378 | KIT - bowl & gasket | 1 | ||
| 33-4256 | GASKET - bowl to body | 1 | ||
| 10-273 | KIT - filter (for 41-2640 fuel pump) | 1 | ||
| 33-1676 | GASKET - fuel pump (for 41-2638 fuel pump) | 1 | ||
| 19 | 11-9279 | TUBE - fuel pickup | 1 | |
| 33-4402 | GASKET - fuel pickup (rubber) | 1 |
