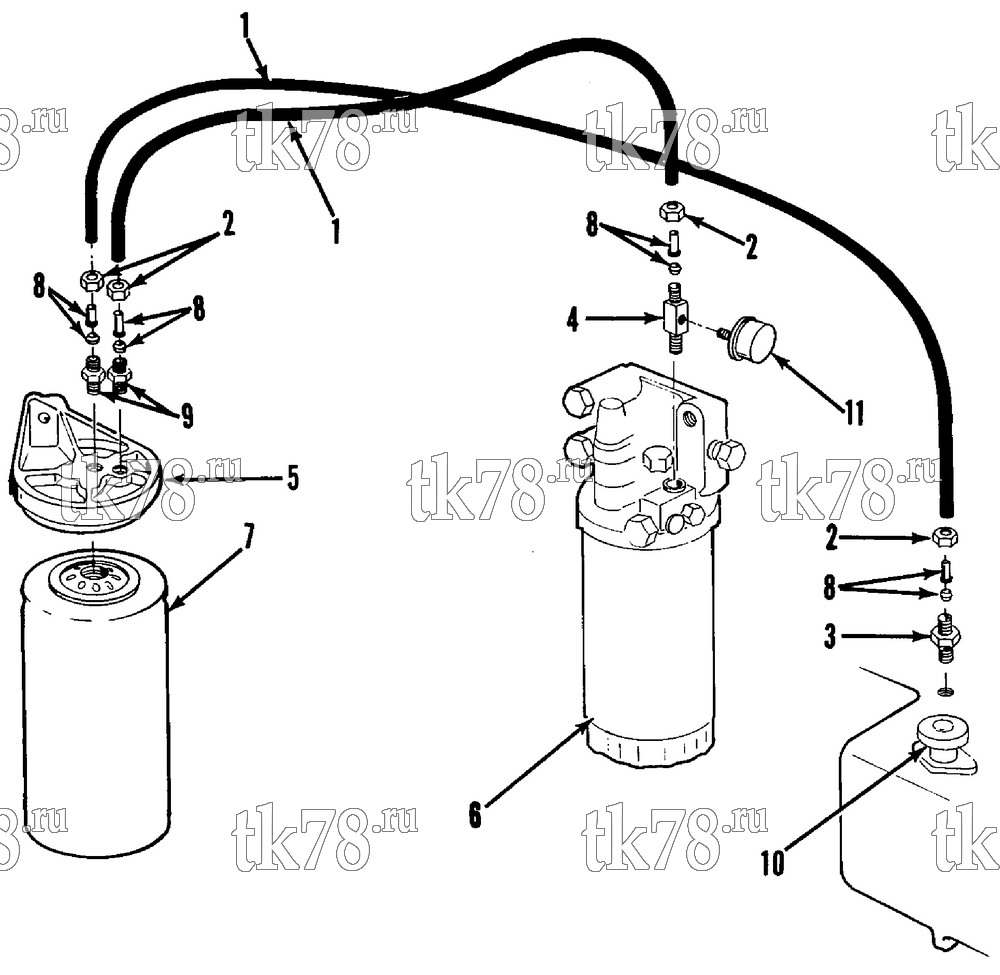

Установкa Thermo King схема BYPASS OIL FILTER – 59A1
Обновление от: 11/24/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-4372 | HOSE (3/8 od x 35 ft lg) | A/R | |
| 2 | 11-4941 | NUT - hose (3/8) | 4 | |
| 3 | 11-5437 | COUPLING - oil pan | 1 | |
| 4 | 55-665 | TEE | 1 | |
| 5 | 11-6338 | SUPPORT - filter | 1 | |
| 6 | 11-9099 | FILTER - oil (standard) | 1 | |
|
US-11-9099 | Фильтр масляный, SB-I/II/III | 2 930 ₽ |
|
|
10-11-9099 | Фильтр масляный, SB-I/II/III | 1 260 ₽ |
|
| 11-9100 | FILTER - oil (EMI) | 1 | ||
| 7 | 11-9101 | FILTER | 1 | |
| 8 | 10-242 | KIT - sleeve & eyelet (3/8) | 4 | |
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 9 | 55-4515 | CONNECTOR - hose | 2 | |
| 10 | 11-7486 | DIPSTICK | 1 | |
|
10-11-7486 | Масляный щуп, Isuzu 2.2 DI (D201), SB-I/II/III / SMX/SMX-II | 2 000 ₽ |
|
| 33-2965 | GASKET - dipstick | 1 | ||
| 11-4989 | TUBE - oil fill | 1 | ||
| 33-144 | O-RING | 1 | ||
| 55-3531 | SCREW - tube | 2 | ||
| 11 | 44-4774 | SWITCH - oil pressure | 1 | |
|
10-44-4774 | Выключатель давления масла | 5 530 ₽ |
|
