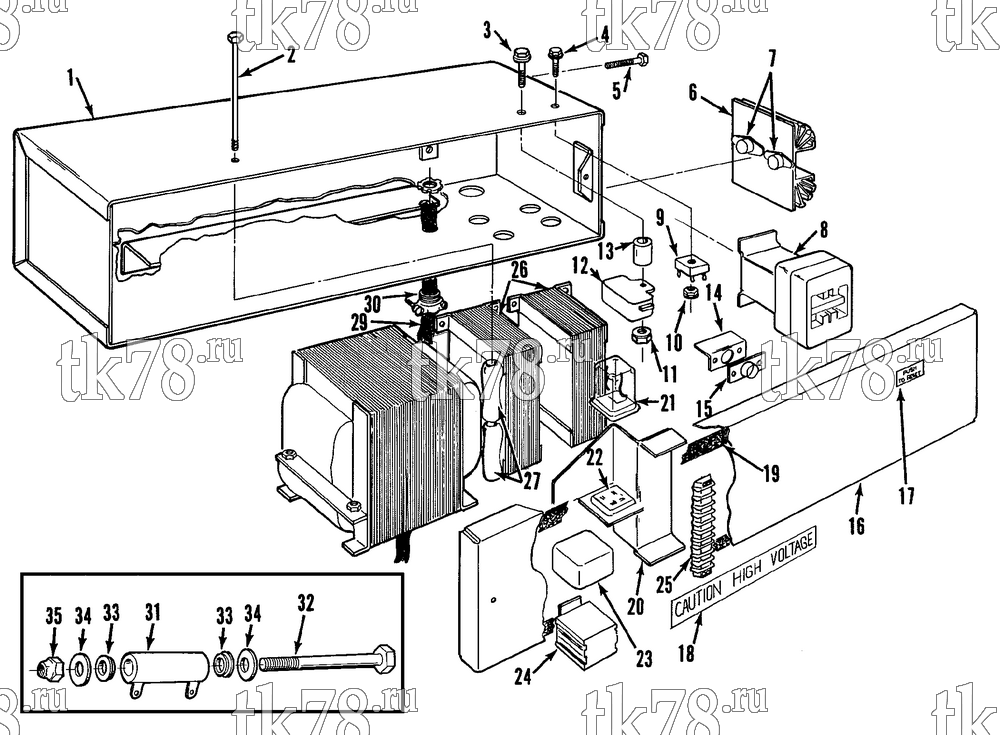

Установкa Thermo King схема HIGH VOLTAGE BOX (24V CONTROLS) – 58G11
Обновление от: 10/1/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 45-1157 | BOX - control (complete) | 1 | ||
| 1 | 99-7032 | BOX - only | 1 | |
| 2 | 55-5199 | SCREW - resistor | 1 | |
| 55-4118 | LOCKNUT | 1 | ||
| 3 | 55-1230 | SCREW - circuit breaker | 1 | |
| 4 | 55-3239 | SCREW - rectifier | 1 | |
| 5 | 55-3506 | SCREW - ground | 1 | |
| 55-1852 | LOCKWASHER | 2 | ||
| 55-401 | FLATWASHER | 1 | ||
| 55-346 | NUT (brass) | 2 | ||
| 6 | 99-7035 | HEATSINK - rectifier | 1 | |
| 99-4976 | STRIP - gasket | 2 | ||
| 55-1510 | SCREW - heatsink | 2 | ||
| 55-5292 | LOCKNUT | 2 | ||
| 7 | 44-3280 | RECTIFIER | 2 | |
| 55-2366 | SCREW - rectifier | 4 | ||
| 55-3519 | LOCKNUT | 4 | ||
| 8 | 44-3964 | CONTACTOR - motor (24V) | 1 | |
| 44-3822 | COIL | 1 | ||
| 40-271 | KIT - points | 1 | ||
| 55-2366 | SCREW - contactor | 4 | ||
| 9 | 44-4885 | RECTIFIER | 1 | |
| 10 | 55-3519 | LOCKNUT - rectifier | 1 | |
| 11 | 55-5292 | LOCKNUT - circuit breaker | 1 | |
| 12 | 44-6145 | BREAKER - circuit (24V) | 1 | |
|
30-44-6145 | Предохранитель 20А | 1 320 ₽ |
|
| 13 | 55-5198 | SPACER | 1 | |
| 14 | 99-7039 | PLATE - boot | 1 | |
| 55-2366 | SCREW - plate | 2 | ||
| 55-3519 | LOCKNUT | 2 | ||
| 15 | 44-2119 | SEAL - pushbutton | 1 | |
| 16 | 99-7038 | COVER - high voltage box | 1 | |
| 55-538 | SCREW - cover | 2 | ||
| 55-4974 | NUT - captive (cover) | 2 | ||
| 17 | 44-2739 | NAMEPLATE - Push to Reset | 2 | |
| 18 | 99-2662 | NAMEPLATE - Caution High Voltage | 1 | |
| 19 | 99-4976 | STRIP - gasket | 4 | |
| 20 | 99-7033 | BRACKET - terminal board/relay | 1 | |
| 55-736 | SCREW - bracket | 2 | ||
| 21 | 44-4025 | RELAY - defrost (24V) | 1 | |
| 22 | 44-3184 | SOCKET - relay | 1 | |
| 99-2027 | SPRING - holddown | 1 | ||
| 55-2771 | CLAMP - speednut | 1 | ||
| 55-2270 | RIVET - spring | 2 | ||
| 23 | 44-6159 | RELAY - fan (24V, 1pst) | 1 | |
| 23 | 44-9392 | RELAY - fan (24V, 1pst) | 1 | |
| 24 | 44-5537 | SOCKET - relay | 1 | |
| 55-759 | SCREW - socket | 1 | ||
| 55-5292 | LOCKWASHER | 1 | ||
| 25 | 44-6136 | BOARD - terminal | 1 | |
| 55-1508 | SCREW - board | 2 | ||
| 55-3519 | NUT | 2 | ||
| 99-7080 | MARKSTRIP | 1 | ||
| 26 | 44-3956 | CHOKE - filter | 2 | |
| 55-736 | SCREW - choke | 4 | ||
| 27 | 44-6134 | RESISTOR (1 ohm, 25 W) | 1 | |
| 28 | 44-6135 | TRANSFORMER (220/380V) | 1 | |
| 99-7036 | NUTSTRIP - transformer | 2 | ||
| 55-538 | SCREW - transformer | 4 | ||
| 29 | 44-6137 | HARNESS - condenser | 1 | |
| 44-6519 | CONNECTOR - wire (Nos. CF, CH) | 1 | ||
| 44-5219 | CONNECTOR - wire (Nos. 7, 7A) | 1 | ||
| 44-5620 | CONNECTOR - wire (Nos. 7A, 7B) | 1 | ||
| 30 | 99-261 | CONNECTOR - cable | 5 | |
| 44-2859 | CABLE (50 ft roll) | A/R | ||
| 55-141 | SCREW - box | 4 | ||
| 55-4967 | LOCKNUT | 2 | ||
| 31 | 44-3792 | RESISTOR - special (mounts on frame) | 1 | |
| 32 | 55-3556 | SCREW - resistor | 1 | |
| 33 | 55-5290 | WASHER (fiber) | 2 | |
| 34 | 55-411 | FLATWASHER | 2 | |
| 35 | 55-4118 | NUT | 1 |
