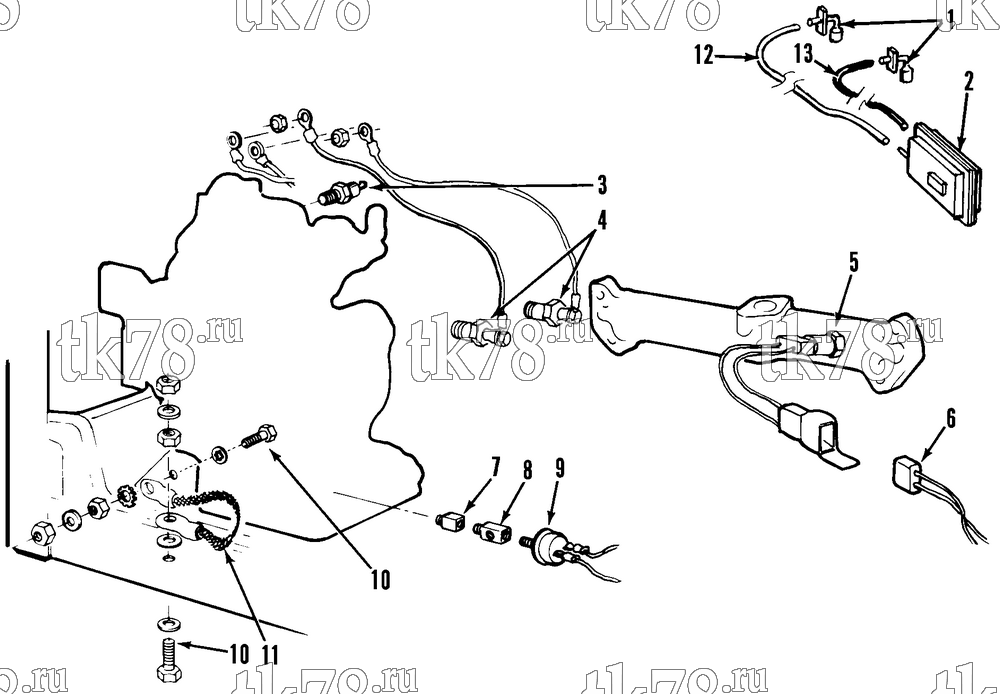

Установкa Thermo King схема SWITCHES & SENSORS – 58A11
Обновление от: 2/16/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 99-1275 | PROBE - air switch | 2 | |
| 10-99-1275 | Зонд | 800 ₽ |
|
|
| 55-3136 | RIVET - probe | 2 | ||
| 2 | 44-3555 | SWITCH - air pressure | 1 | |
| 55-5292 | NUT | 2 | ||
| 3 | 44-4793 | SWITCH - water temperature | 1 | |
| 4 | 44-5810 | GLOW PLUG (manifold heater) | 2 | |
|
10-44-5810 | Свеча накаливания, Yanmar 235, 353 | 7 700 ₽ |
|
| 5 | 44-5305 | SWITCH - hpco (R12) | 1 | |
|
10-44-5305 | Выключатель высокого давления (R12) | 3 950 ₽ |
|
| 6 | 44-5219 | CONNECTOR (part of main harness) | 1 | |
| 7 | 11-4984 | ADAPTER - switch | 1 | |
| 8 | 55-2273 | TEE | 1 | |
| 9 | 44-4774 | SWITCH - oil pressure | 1 | |
|
10-44-4774 | Выключатель давления масла | 5 530 ₽ |
|
| 10 | 55-2961 | SCREW - cable | 2 | |
| 55-3471 | FLATWASHER | 2 | ||
| 55-3471 | LOCKWASHER (internal tooth) | 4 | ||
| 55-4955 | LOCKNUT | 4 | ||
| 11 | 44-6014 | CABLE - ground | 1 | |
| 12 | 99-1142 | HOSE (clear) | 1 | |
| 13 | 99-1143 | HOSE (black) | 1 | |
| 33-428 | GROMMET | 3 |
