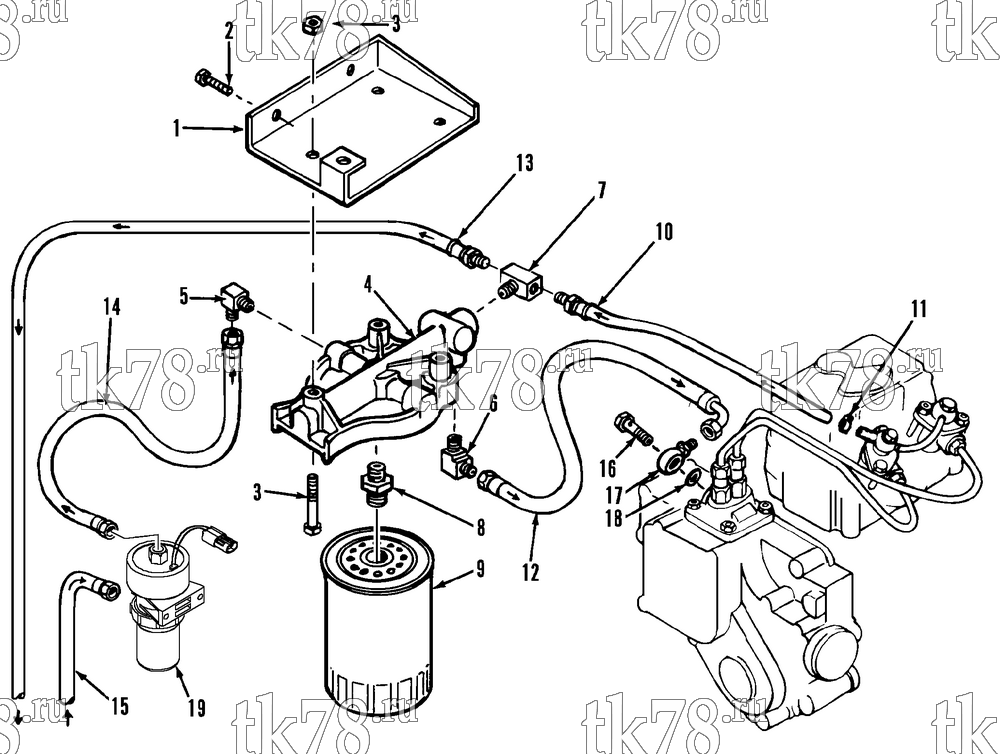

Установкa Thermo King схема FUEL FILTER & HOSES – 57D10
Обновление от: 7/25/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 99-6999 | BRACKET - fuel filter | 1 | |
| 2 | 55-3641 | SCREW - bracket (1-3/4 in) | 2 | |
| 55-201 | SCREW - bracket (2 in) | 1 | ||
| 55-366 | LOCKWASHER | 3 | ||
| 55-4967 | NUT | 3 | ||
| 3 | 55-201 | SCREW - bracket | 3 | |
| 55-4967 | NUT | 3 | ||
| 4 | 11-6529 | BRACKET - filter | 1 | |
| 5 | 55-308 | ELBOW | 1 | |
| 6 | 55-644 | ELBOW | 1 | |
| 7 | 55-1654 | TEE | 1 | |
| 55-4799 | BUSHING - tee to bracket | 1 | ||
| 8 | 55-3168 | ADAPTER - fuel pickup | 1 | |
| 9 | 11-9098 | FILTER - fuel | 1 | |
|
11-9341 OEM | Фильтр топливный EMI 2000, MD/RD/KD/T-Series | 2 680 ₽ |
|
|
US-11-9341 | Фильтр топливный, MD/RD/KD/T-Series | 1 840 ₽ |
|
|
10-11-9341 | Фильтр топливный, MD/RD/KD/T-Series | 1 090 ₽ |
|
| 10 | 11-5228 | HOSE - fuel return | 1 | |
| 11 | 55-2796 | CLAMP (5/8 id) | 1 | |
| 12 | 11-5070 | HOSE - fuel | 1 | |
| 13 | 11-4717 | HOSE - return | 1 | |
| 14 | 11-4781 | HOSE - pump to filter | 1 | |
| 15 | 11-4780 | HOSE - tank to pump | 1 | |
| 16 | 11-5154 | BOLT - hollow (30 mm lg, use w/ 17 mm thk banjo) | 1 | |
| 11-5512 | BOLT - hollow (25 mm lg, use w/ 12 mm thk banjo) | 1 | ||
| 55-5831 | PLUG & GASKET - air bleed | 1 | ||
| 17 | 11-5390 | BANJO (banjo may be 12 or 17 mm thk) | 1 | |
| 18 | 33-1531 | GASKET | 2 | |
| 19 | 41-7059 | PUMP - fuel (12V) | 1 | |
|
30-66840-00 OEM | Топливный насос подкачки | 22 850 ₽ |
|
|
US-41-7059 | Топливный насос подкачки | 19 340 ₽ |
|
| P-30-01108-12 | Топливный насос подкачки, HP | 9 870 ₽ |
|
|
|
10-41-7059-HP | Топливный насос подкачки, HP | 9 460 ₽ |
|
| 10-376 | KIT - filter (diesel) | 1 | ||
| 10-378 | KIT - bowl & gasket | 1 | ||
| 33-4256 | GASKET - bowl to body | 1 | ||
| 10-273 | KIT - filter (for 41-2640 fuel pump) | 1 | ||
| 33-1676 | GASKET - fuel pump (for 41-2638 fuel pump) | 1 |
