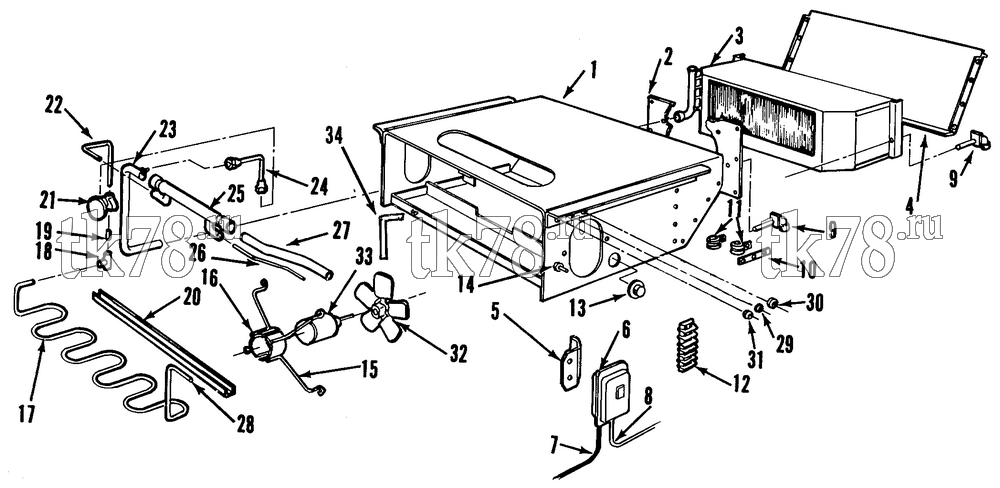

Установкa Thermo King схема EVAPORATOR ASSEMBLY – 56A3
Обновление от: 3/5/96
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-1915 | HOUSING - evaporator | 1 | |
| 2 | 98-1699 | ORIFICE - evaporator | 1 | |
| 55-1587 | SCREW - orifice | 6 | ||
| 55-4742 | FLATWASHER | 6 | ||
| 55-1511 | LOCKWASHER | 6 | ||
| 3 | 67-646 | COIL - evaporator | 1 | |
| 55-3027 | SCREW - coil | 8 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-2964 | LOCKWASHER | 8 | ||
| 55-4560 | NUT (hexstop) | 8 | ||
| 4 | 98-1916 | PANEL - evaporator (rear) | 1 | |
| 55-3136 | RIVET - panel | 8 | ||
| 5 | 99-4900 | BRACKET - air switch | 1 | |
| 55-126 | SCREW - bracket | 2 | ||
| 55-375 | LOCKWASHER | 2 | ||
| 55-1533 | NUT (hex) | 2 | ||
| 6 | 44-3475 | SWITCH - air | 1 | |
| 55-2752 | NUT - switch | 2 | ||
| 55-1511 | LOCKWASHER | 2 | ||
| 55-431 | FLATWASHER | 2 | ||
| 7 | 99-1142 | HOSE (black) | 1 | |
| 8 | 99-1143 | HOSE (clear) | 1 | |
| 9 | 99-1275 | PROBE - air switch | 2 | |
| 10-99-1275 | Зонд | 800 ₽ |
|
|
| 55-3136 | RIVET - probe | 2 | ||
| 10 | 99-3099 | BRACKET - thermo bulb | 1 | |
| 55-3027 | SCREW - bracket | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-4560 | NUT (hex) | 2 | ||
| 11 | 55-548 | CLAMP - thermo bulb | 2 | |
| 55-3027 | SCREW - clamp | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 55-4560 | NUT (hex) | 1 | ||
| 12 | 44-4617 | BOARD - terminal | 1 | |
| 99-5415 | MARKSTRIP | 1 | ||
| 55-3511 | SCREW - board | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 55-4423 | NUT (hexstop) | 2 | ||
| 13 | 44-3155 | SWITCH - defrost termination | 1 | |
|
10-44-3155 | Выключатель оттайки, KD/MD/RD-I / SB-I/II | 4 780 ₽ |
|
| 55-5639 | SCREW - switch | 2 | ||
| 14 | 55-2991 | SCREW - mount | 1 | |
| 55-2001 | FLATWASHER | 1 | ||
| 55-2996 | LOCKWASHER (internal tooth) | 1 | ||
| 55-2965 | NUT (hex) | 2 | ||
| 15 | 99-5416 | MOUNT - motor (left) | 1 | |
| 16 | 99-5415 | MOUNT - motor (right) | 1 | |
| 55-214 | SCREW - mount | 4 | ||
| 55-2776 | NUT - captive | 4 | ||
| 55-4742 | FLATWASHER | 8 | ||
| 55-2979 | SCREW - motor | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 55-4953 | NUT (hexstop) | 2 | ||
| 17 | 66-3161 | TUBE - defrost | 1 | |
| 18 | 66-620 | TEE | 1 | |
| 19 | 66-1531 | TUBE | 1 | |
| 20 | 99-9034 | CHANNEL - tube | 1 | |
| 55-3027 | SCREW - channel | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2847 | NUT - rivet | 2 | ||
| 21 | 66-1185 | VALVE - expansion | 1 | |
| 55-126 | SCREW - valve | 1 | ||
| 55-402 | FLATWASHER | 2 | ||
| 99-1405 | BRACKET - valve | 1 | ||
| 55-2977 | SCREW - bracket | 1 | ||
| 55-366 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-4953 | NUT (hexstop) | 1 | ||
| 22 | 66-4930 | TUBE - heat exchanger to valve | 1 | |
| 23 | 66-4931 | TUBE - heat exchanger | 1 | |
| 66-874 | FITTING | 1 | ||
| 24 | 66-4932 | TUBE - equalizer | 1 | |
| 25 | 67-351 | HEAT EXCHANGER | 1 | |
| 55-1493 | HANGER - heat exchanger | 1 | ||
| 55-2979 | SCREW - hanger | 1 | ||
| 55-366 | LOCKWASHER | 1 | ||
| 55-4953 | NUT (hex) | 1 | ||
| 26 | 66-2921 | TUBE - liquid | 1 | |
| 55-3212 | ADAPTER - liquid | 1 | ||
| 27 | 66-2906 | TUBE - heat exchanger | 1 | |
| 55-6172 | FITTING - union (suction) | 1 | ||
| 28 | 66-2919 | TUBE - defrost, evaporator | 1 | |
| 55-1610 | ADAPTER - defrost | 1 | ||
| 29 | 33-702 | GROMMET (1/2 id) | 1 | |
| 30 | 33-429 | GROMMET (7/8 id) | 1 | |
| 31 | 33-859 | GROMMET (7/16 id) | 1 | |
| 32 | 78-536 | FAN - evaporator (assembly) | 1 | |
| 33 | 44-6130 | MOTOR - evaporator fan | 1 | |
| 34 | 91-669 | HOSE - evaporator drain | 2 | |
| 91-1910 | PIPE - drain | 2 |
